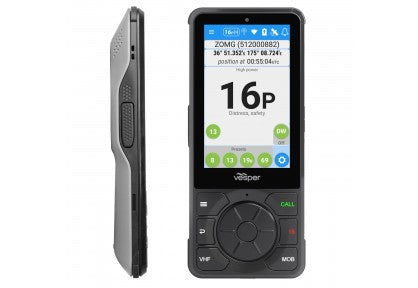

Vesper Cortex-H1P Handset Wireless

Meet the Vesper Cortex-H1P Wireless Handset — the rugged, portable command center designed to keep you connected and in control on any voyage. This advanced handheld interfaces seamlessly with the Cortex M1 hub, delivering a single-handed, intuitive control experience with a dedicated Click-Wheel and tactile buttons. Built for harsh marine environments, the H1P combines durability, clarity, and practical functionality in one compact device.

Key Benefits

• Single-handed operation with a unique Click-Wheel and dedicated buttons for swift, fatigue-free navigation.
• Glove- and wet-condition touchscreen works in rain, spray, and when wearing gloves.
• 4-inch multi-touch display with Gorilla Glass for maximum durability and long-lasting clarity, optically bonded for wide-angle viewing and superior daylight readability.
• 85 dBA crystal-clear audio ensures reliable voice communication even in noisy conditions.
• Integrated AIS and VHF with voiced alerts to keep you aware of traffic and system status at a glance.
• DSC direct calling by touching a vessel onscreen for fast, fingertip communication.
• Scalability across the vessel supports up to 10 handsets on Cortex M1 12V or 24V DC power—expandable as your crew grows.
• Rugged, purpose-built design with IPX8 waterproofing and operation from -25°C to 55°C (-13°F to 131°F).
• Long-lasting power Lithium Polymer battery delivers a quick 2-hour full charge and >12 hours of nominal operation.

The Cortex H1P is the primary voice and calling interface for VHF and DSC on your Cortex M1 system. Use the touchscreen to set up and manage the hub, view AIS targets, monitor vessel instrumentation, manage alarms, and configure remote vessel monitoring. The combination of a touch display and dedicated controls provides fast, reliable access to key functions, even in demanding conditions.

Upgrade your Cortex M1 SOTDMA smartAIS experience or add additional H1 handsets to extend control to more locations across the boat. Stay aware, stay connected, and stay in command with a handheld that’s built for the sea.

Package includes everything you need to get started on board:

• H1P Wireless Handset
• H1P Powered Cradle
• Non Powered H1 Cradle
• H1 Bulkhead Bonnector

Specification highlights

• : 164.8 mm x 71.8 mm x 21.4 mm
• : 12V, 1A max; 12–24V DC compatibility
• : Lithium Polymer; 2-hour full charge; >12 hours nominal operation
• : 235 g
• : 4-inch LCD TFT, 640 x 800, 24-bit color, capacitive touch; optically bonded; glove- and salt-water operable
• : 600 cd/m²; ambient light sensor with auto dimming
• : IPX8 waterproof; operating temperature -25°C to 55°C
• : 3W Class D amplifier; THD < 5% @ 85 dBA

Designed to enhance situational awareness and VHF communications across every station on your vessel, the Cortex-H1P Wireless Handset delivers reliable performance where you need it most — at your fingertips, on board, and in all conditions.
