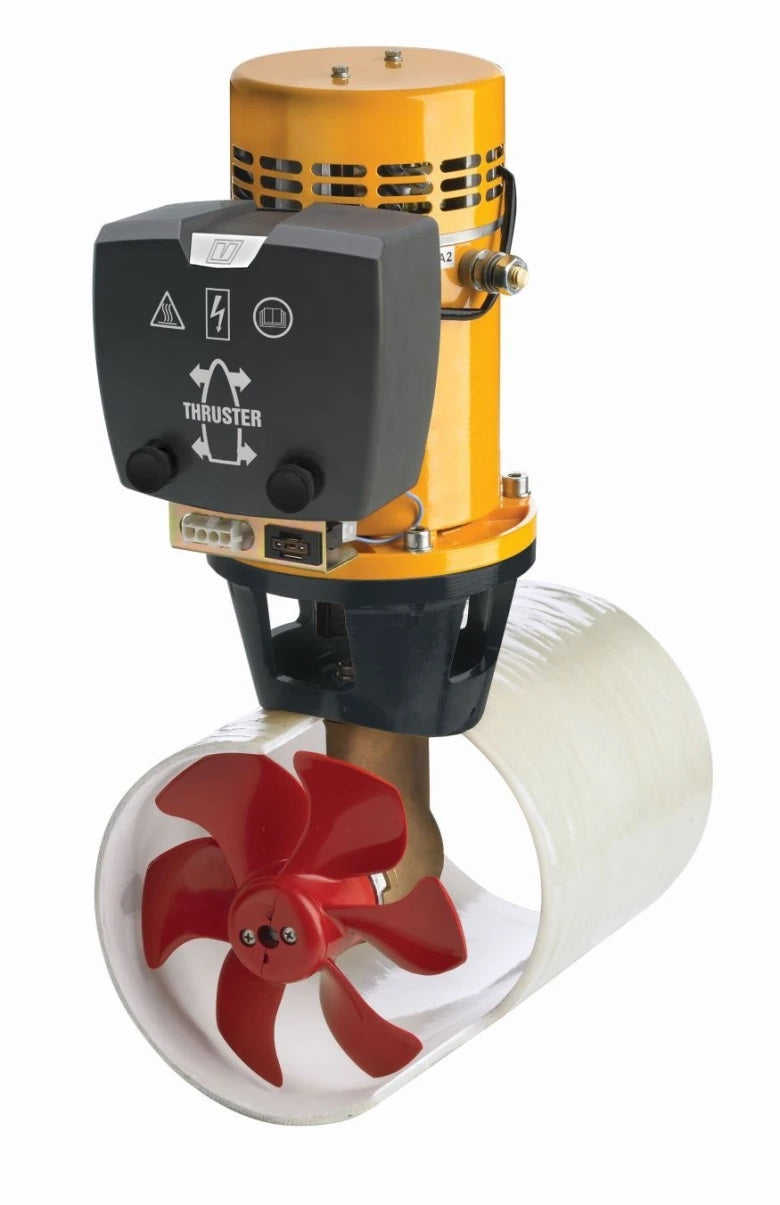

Navigate tight marinas with confidence using the Vetus BOW5512D Bow Thruster. This compact 12V DC thruster delivers precise, quiet maneuvering for small to medium craft, with 55 kgf of thrust through a 150 mm tunnel for enhanced control during docking and close-quarters maneuvering.
-
Thrust: 55 kgf of lateral thrust for swift, confident manoeuvres in confined spaces.
-
Power: 3 kW at 12 V DC, delivering strong performance from standard vessel power systems.
-
Tunnel diameter: 150 mm internal tunnel to fit compact sterns while maintaining propulsive efficiency.
-
Weight: 17 kg, contributing to easier installation and handling during retrofits.
-
Current draw: 350 A
-
Continuous operation: 4 minutes of steady bursts for controlled adjustments without overheating.
-
Construction and materials: Rugged 150 mm tunnel with a corrosion-resistant synthetic propeller for durability at sea.
-
Vibration and noise control: Flexible coupling between tail piece and motor minimizes vibration; single-propeller design reduces flow disturbance and cavitation noise.
-
Installation compatibility: Clear installation and operation instructions; compatible with Vetus aluminium control panels and interchangeable with older panels.
-
EMC compliance: EMC compliant for reliable, safe operation at sea.
-
Ignition protection: No
-
Proportional: No
-
Retractable: No
-
Extended runtime: No
Designed for quick, precise adjustments in challenging docking situations, the Vetus BOW5512D provides more control on every voyage while supporting safer, smoother maneuvering in marinas and tight channels.
| Thrust (kgf) |
55 |
| Power (kW) |
3 |
| Internal tunnel diameter (mm) |
150 |
| Weight (kg) |
17 |
| Voltage (V) |
12 |
| Current consumption (A) |
350 |
| Continuous operating time (min) |
4 |
| Ignition protected |
No |
| Proportional |
No |
| Retractable |
No |
| Extended runtime |
No |
