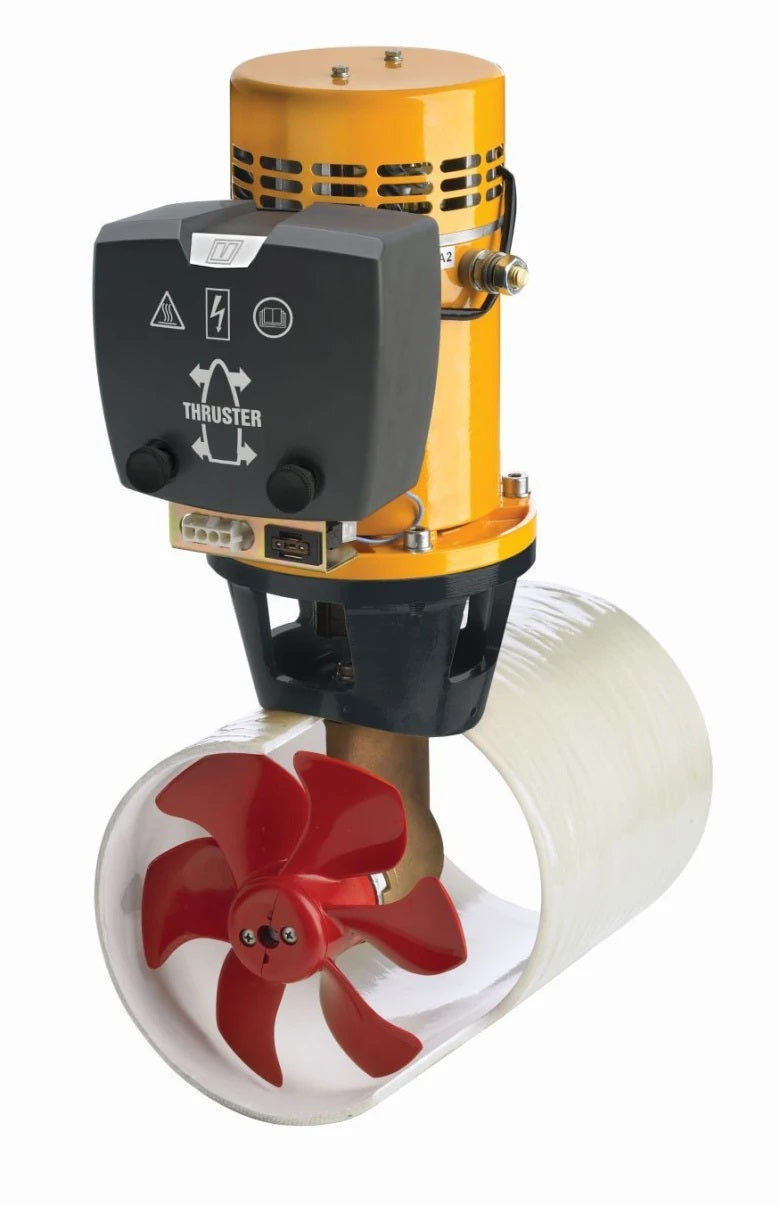

Vetus BOW6012D is a compact 12 V DC bow thruster designed for boats that demand precise docking and tight-quarters maneuvering. With 65 kgf of thrust, 3 kW of power, and a 185 mm tunnel, it delivers confident control in a lightweight 17 kg package.
-
Thrust: 65 kgf
-
Power: 3 kW
-
Voltage: 12 V
-
Internal tunnel diameter: 185 mm
-
Weight: 17 kg
-
Current consumption: 280 A
-
Continuous operating time: 5 minutes
-
Propeller material: Corrosion-resistant synthetic
-
Propeller design: Single propeller reduces flow disturbance in the tunnel; blade geometry minimizes cavitation noise for quiet operation
-
Vibration reduction: Flexible coupling between tail piece and motor lowers vibration
-
Tail piece: Streamlined tail piece optimizes tunnel flow
-
Installation & maintenance: Easy installation with clear installation and operation instructions
-
Control panels: New aluminium control panels are interchangeable with older Vetus panels
-
EMC compliance: Meets EMC requirements for compliant marine operation
-
Ignition protection: Not ignition protected
-
Control type: Not proportional
-
Retractable: Not retractable
-
Extended runtime: Not for extended runtime
The BOW6012D is designed to make docking safer and easier in marina environments. Its corrosion-resistant propeller and streamlined components help extend longevity in saltwater conditions, while the lightweight build simplifies installation. The setup supports seamless integration with Vetus control panels, enabling straightforward upgrades and reliable marine operation. Note that this model is not ignition protected, not proportional, not retractable, and not intended for extended runtime, so it’s best suited for short, controlled docking maneuvers.
| Thrust (kgf) |
65 |
| Power (kW) |
3 |
| Internal tunnel diameter (mm) |
185 |
| Weight (kg) |
17 |
| Voltage (V) |
12 |
| Current consumption (A) |
280 |
| Continuous operating time (min) |
5 |
| Ignition protected |
No |
| Proportional |
No |
| Retractable |
No |
| Extended runtime |
No |
