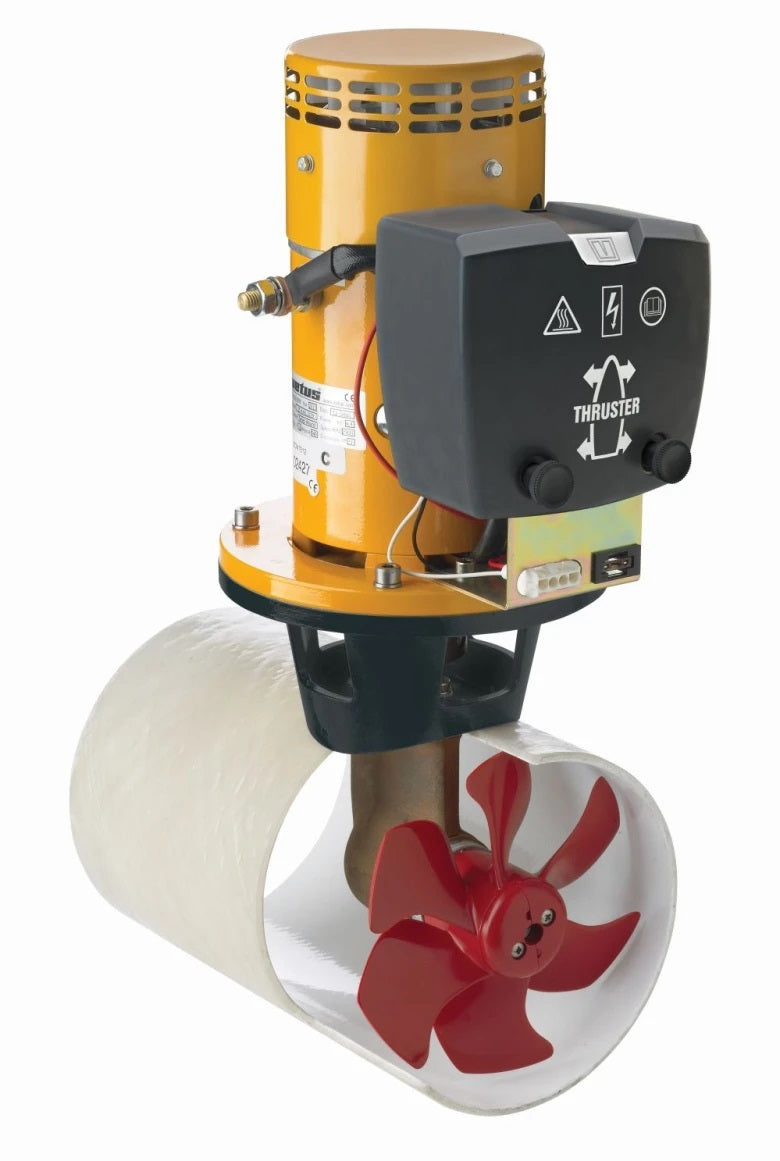

Vetus BOW9512D Bow Thruster 5.7KW 95kgF 12vDC 185mm Tunnel

Meet the Vetus BOW9512D Bow Thruster, a compact, high-performance 12 V solution engineered for precise, effortless maneuvering at the bow. Delivering 95 kgf of thrust from 5.7 kW of power, this thruster provides confident control for docking, turning in tight spaces, and maintaining course in challenging conditions. The 185 mm tunnel diameter fits a wide range of vessels, delivering strong torque without taking up precious space.

Key Benefits

• High thrust and power: 95 kgf of thrust and 5.7 kW from a 12 V system ensure quick, responsive handling at the bow.
• Optimized tunnel design: A single-propeller configuration minimizes flow disturbance in the 185 mm tunnel for smoother operation.
• Low cavitation noise: The unique propeller blade design minimizes cavitation, keeping noise and vibration to a minimum.
• Vibration control: A flexible coupling between the tail piece and motor eliminates vibration, extending component life.
• Efficient flow: A streamlined tail piece is engineered for optimum flow and performance.
• Durable and lightweight: A corrosion-resistant synthetic propeller reduces weight while maintaining strength.
• Easy installation: Comes with clear installation and operation instructions to simplify onboard setup.
• Interchangeable control panels: A new line of high-quality aluminium control panels is interchangeable with older panels for seamless upgrades.
• EMC compliant: All Vetus manoeuvring systems meet EMC requirements for safe, reliable electrical performance.
• Reliable operation: Robust construction designed for steady performance in marine environments.

Specifications

• Thrust: 95 kgf
• Power: 5.7 kW
• Internal tunnel diameter: 185 mm
• Weight: 26 kg
• Voltage: 12 V
• Current consumption: 610 A
• Continuous operating time: 3 minutes
• Ignition protected: No
• Proportional: No
• Retractable: No
• Extended runtime: No
• Model: BOW9512D
