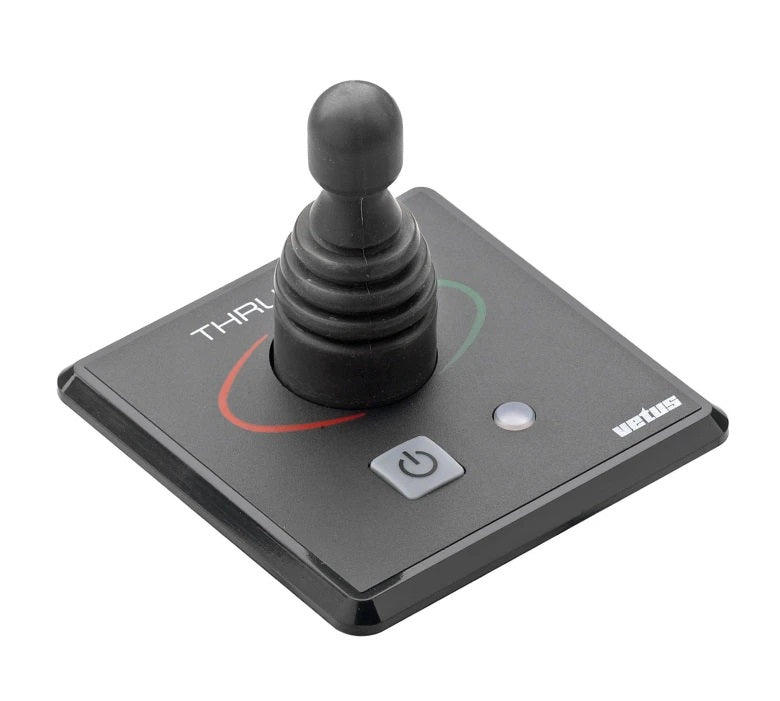

Meet the Vetus BPJE2 Joystick Control for Bow Thrusters — a compact, robust control panel designed for precise, safe maneuvering of your vessel’s bow thruster. The BPJE2 integrates a dedicated joystick with a built-in time delay device for reversing direction, delivering smooth, controlled responses when docking or executing tight manoeuvres.
Engineered for reliability in marine conditions, this panel is watertight to IP66, ensuring dependable performance even in rain, spray, or splashed decks. It operates on 12/24 V systems and is optimized specifically for thruster control, with a non-proportional joystick for decisive on/off thruster actions.
Key specifications
-
Voltage: 12/24 V
-
Purpose: Bow thruster control
-
Joystick: Non-proportional (on/off) control
-
Time delay: Built-in delay when reversing rotation
-
Protection: IP66 watertight; child protection feature
-
V-CAN: No
-
Bezel: Synthetic
-
Dimensions: Width 85 mm, Height 85 mm, Depth 90 mm
-
Cut-out diameter: 75 mm
Compact, easy to install and built to last, the BPJE2 is your essential marine control panel for safe, confident bow thruster operation. Upgrade your vessel’s maneuverability with Vetus quality and reliability.
| Child protection |
Yes |
| Voltage (V) |
12/24 |
| Purpose |
Thurster control |
| Sort control |
Joystick |
| Proportional control |
No |
| V-CAN |
No |
| Build-in depth (mm) |
90 |
| Bezel |
Synthetic |
| Function |
0 |
| Width (mm) |
85 |
| Cut-out diameter (mm) |
75 |
| Height (mm) |
85 |
