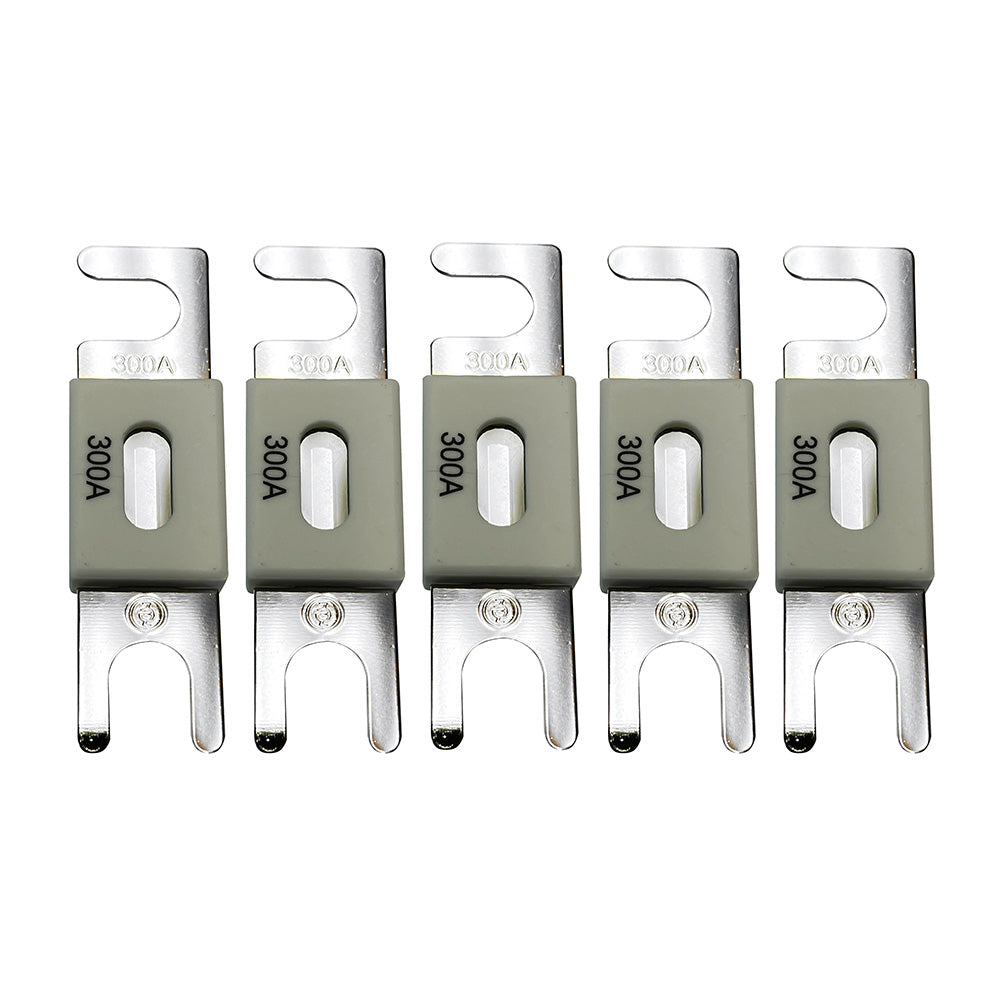

Victron ANL-Fuse 300A/80V for 48V systems — a robust 5-pack of bolt-down, fast-acting ANL fuses crafted by Victron Energy to shield your high-current 48V battery setups.
Engineered for demanding solar, marine, RV and energy-storage installations, these ANL fuses deliver superior short-circuit protection with a higher breaking capability than standard MEGA fuses, safeguarding wires, inverters and battery banks from dangerous faults.
-
Package of 5 five 300-amp fuses included for easy stocking and replacements.
-
High-current protection with Max Current Rating 300 A and Max Voltage Rating 80 V.
-
Efficiency-preserving design features an Approximate Voltage Drop of 125 mV at rated current.
-
Reliable performance with a Cold Resistance of 0.35 mΩ for fast, clean interruption.
-
Secure mounting bolt-down construction for stable installation in distribution panels.
Ideal for 48V Victron Energy products and other high-current DC systems, including battery banks, solar arrays, inverters and controllers, where fast, dependable fault protection matters.
Specifications
-
Max Current Rating: 300 amps
-
Max Voltage Rating: 80 volts
-
Approximate Voltage Drop: 125 mV
-
Cold Resistance: 0.35 mΩ
Please contact your dealer for any returns, repairs or support issues related to this product.
Manufacturer: Victron Energy
Manufacturer Part No: CIP143300020
UPC: 8719076061779
