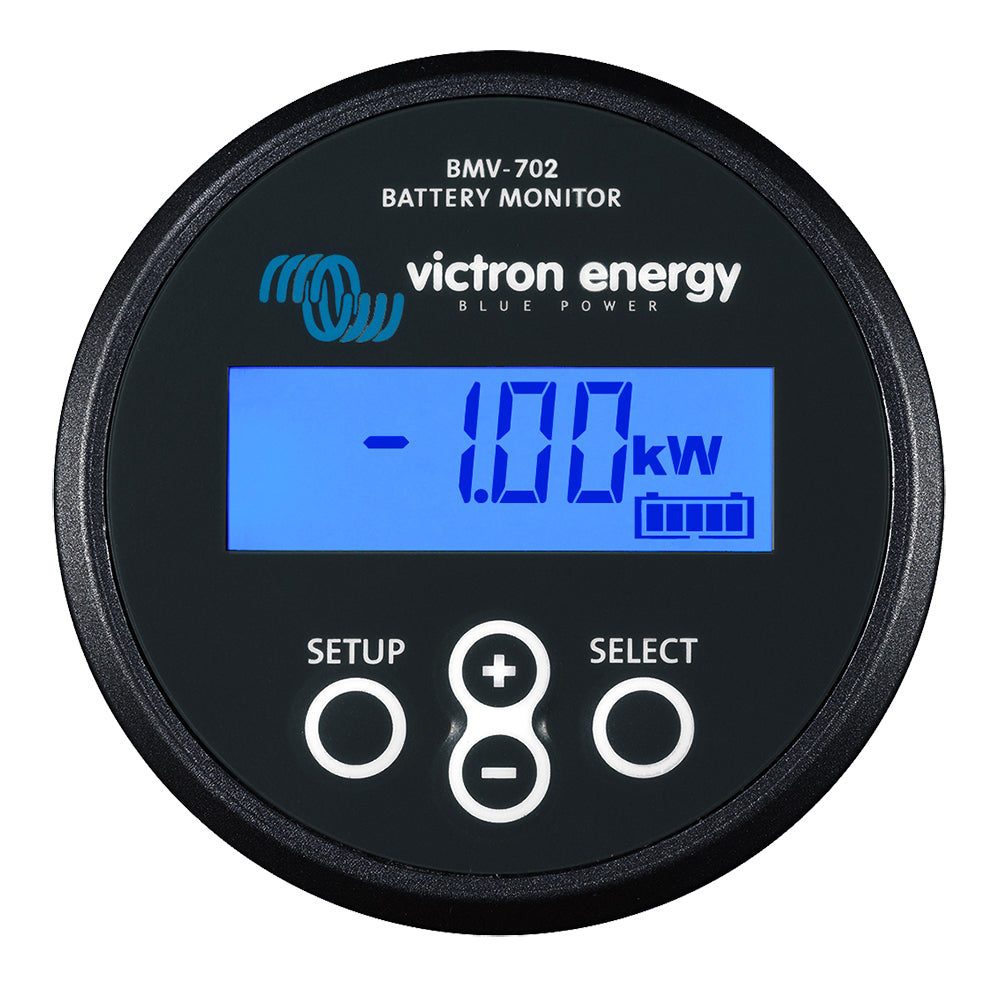

The Victron BMV-702 Battery Monitor in Black is a precise battery-management companion designed for boats, RVs, off-grid solar, and critical power systems. It acts as a reliable fuel gauge, showing state of charge, remaining runtime, and real-time power draw while accounting for amp-hours used, discharge rate, temperature, and battery age.
-
Shunt and Connection Kit: Includes a high-precision 500 A quick-connect shunt with a complete connection kit; connects to the monitor via RJ12 cable, with expansion options up to 10,000 A for larger systems.
-
Comprehensive Readouts and Forecasting: Displays voltage, current, power, amp-hours consumed, and state of charge, with smart forecasting of remaining time at the current discharge rate.
-
Programmable Input: One programmable input can measure the voltage of a second battery, battery temperature, or midpoint voltage.
-
Connectivity Options: VE.Direct port for wired data transmission to your display or data logger; optional Bluetooth Smart for wireless monitoring with Apple or Android devices via a Bluetooth Smart dongle (sold separately).
-
Data Logging: Stores a wide range of historical events to evaluate usage patterns and battery health over time.
-
Alerts and Automatic Load Management: Programmable visual and audible alarms to warn you of critical conditions and a programmable relay to automatically turn off non-critical loads or start a generator when needed.
-
Wide Voltage Range and High Precision: 6.5–95 V operating range with 10 mA (0.01 A) current resolution for accurate monitoring across diverse systems.
-
Low Power Consumption: Efficient operation—2.9 Ah per month at 12 V (4 mA) and 2.2 Ah per month at 24 V (3 mA)—preserving battery life.
-
Rugged, Adaptable Display: Sleek black housing that fits most dashboards, with a front bezel to customize display appearance to square or round formats for a clean, professional look.
-
Cross-Platform Monitoring: Use the wired VE.Direct connection or the optional Bluetooth Smart module to monitor from your phone, and rely on programmable alerts and a smart relay to prevent outages or unnecessary generator runs.
-
Versatile System Support: Built to provide real-time visibility into your battery bank, helping optimize charging, manage loads, and extend battery life across boats, RVs, and off-grid solar setups.
With the BMV-702, you gain real-time visibility into your battery bank to optimize charging, manage loads, and extend battery life. The built-in data logging, wide voltage support, and high-precision measurements support reliable performance, while programmable alerts and the optional Bluetooth Smart module offer flexible monitoring from your phone.
