Description

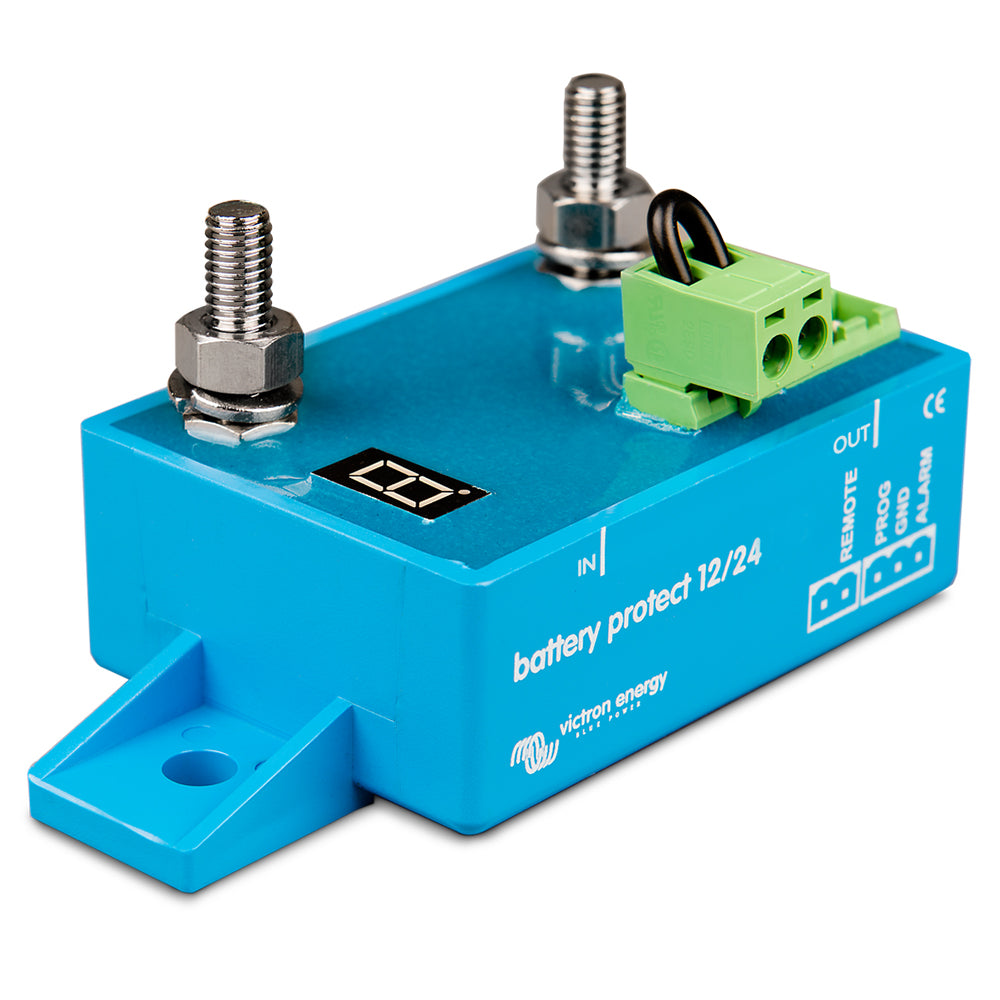

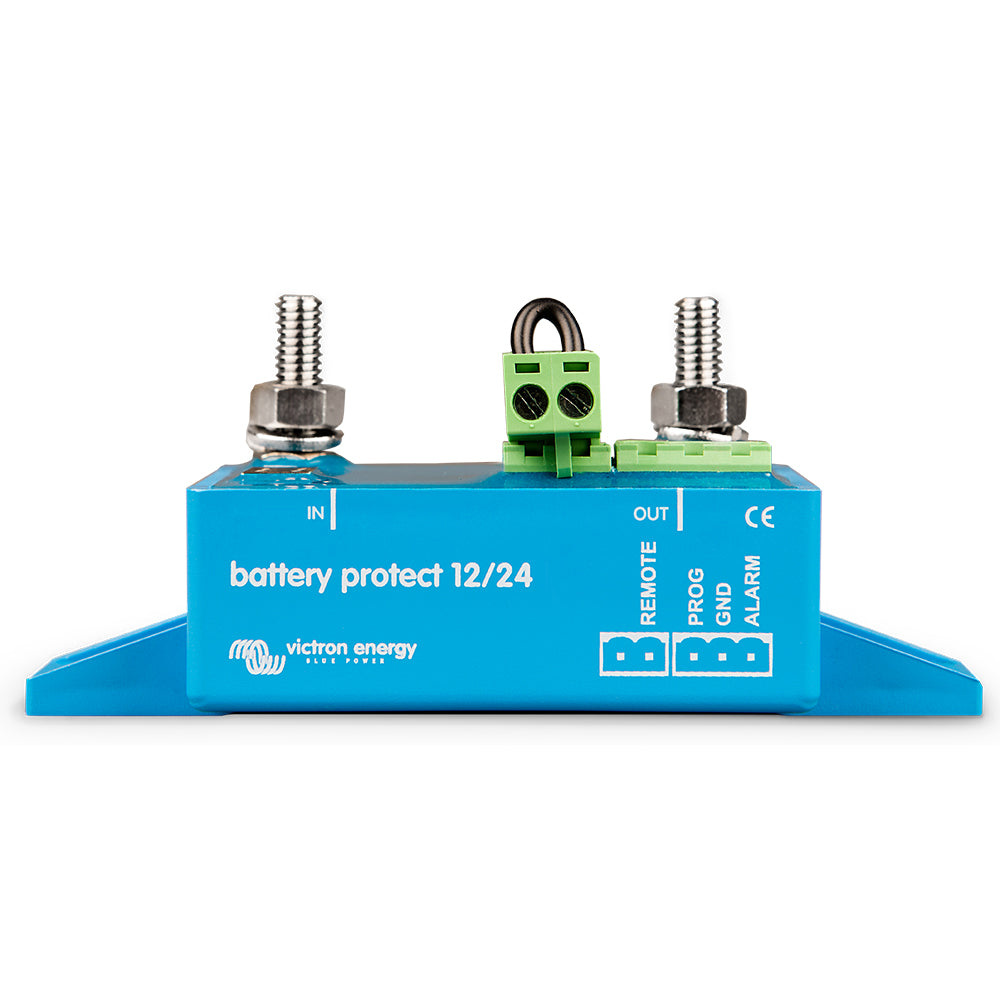

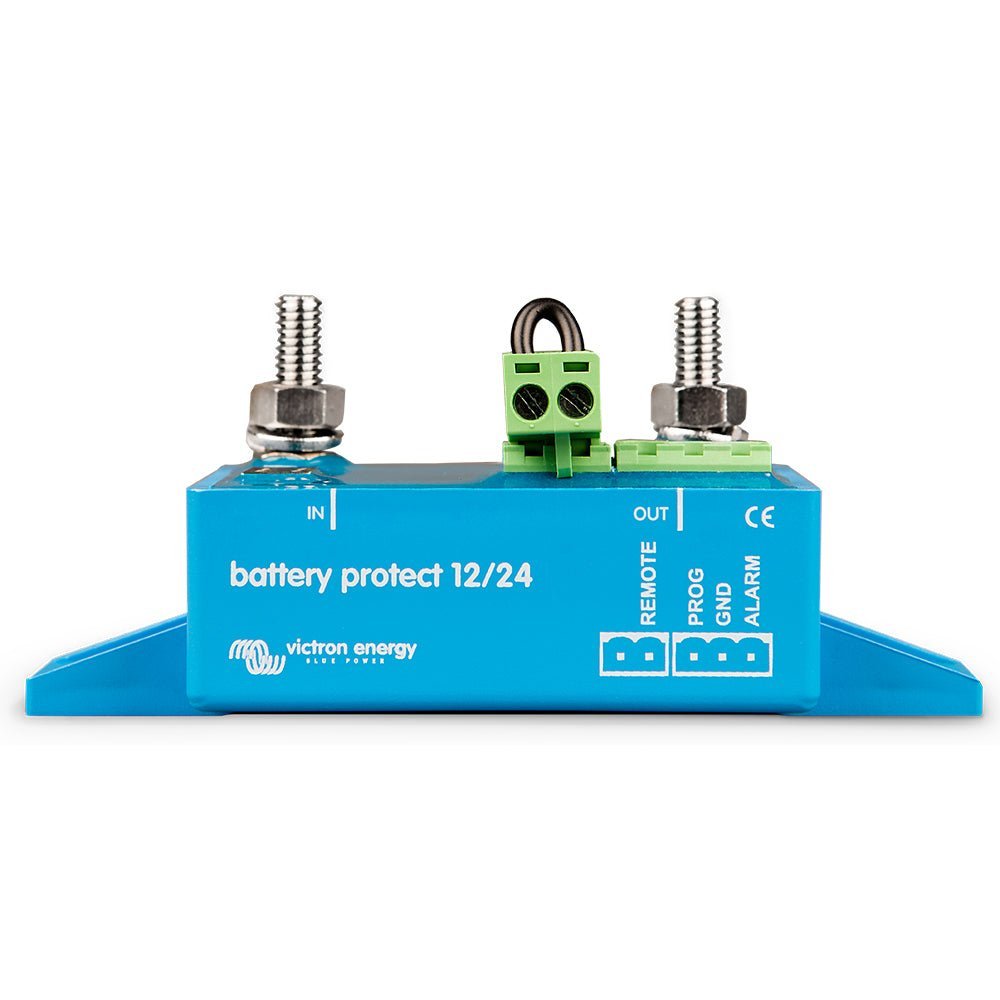

Introducing the Victron BatteryProtect BP-100 — a robust, 100A protection device designed for 6-35 VDC systems. It isolates non-essential loads before the battery is deeply discharged or before there’s insufficient power to crank the engine, helping extend battery life and ensure you’re never left stranded.
Key features and benefits
- Auto-ranging 12/24V — automatically detects system voltage for effortless setup.
- Voltage-based control — engage/disengage at multiple preset voltages with a seven-segment display showing the chosen setting.
- Li-ion compatibility — dedicated Li-ion mode, controllable via VE.Bus BMS, and usable as a charge interrupter between charger and Li-ion battery.
- Ultra-low current consumption — minimizes drain, especially important for Li-ion after low voltage shutdown.
- Overvoltage protection — disconnects the load if voltage exceeds 16V (or 32V in high-range) to protect sensitive equipment.
- Ignition-safe operation — no relays; MOSFET switches ensure no sparks during operation.
- Alarm and delay features — a delayed alarm output (open-collector, up to 50 mA) activates if voltage falls below the disconnect threshold for more than 12 seconds; the load disconnects after 90 seconds and reconnects 30 seconds after voltage returns above the threshold.
- Reliable performance — designed to keep critical loads powered while preserving battery health in automotive, marine, and solar systems.
Easy integration — ideal for marine, automotive, and off-grid setups that demand dependable battery protection. When used with Victron VE.Bus BMS in Li-ion configurations, the BP-100 coordinates seamlessly with your battery management system.
Specifications — 100A continuous, 6–35 VDC, MOSFET-based (ignition-safe), with delayed load disconnect (90 seconds) and delayed reconnect (30 seconds) logic.
Safety and compliance — Warning: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer: Victron Energy • Manufacturer Part No: BPR000100400 • UPC: 8719076021438
