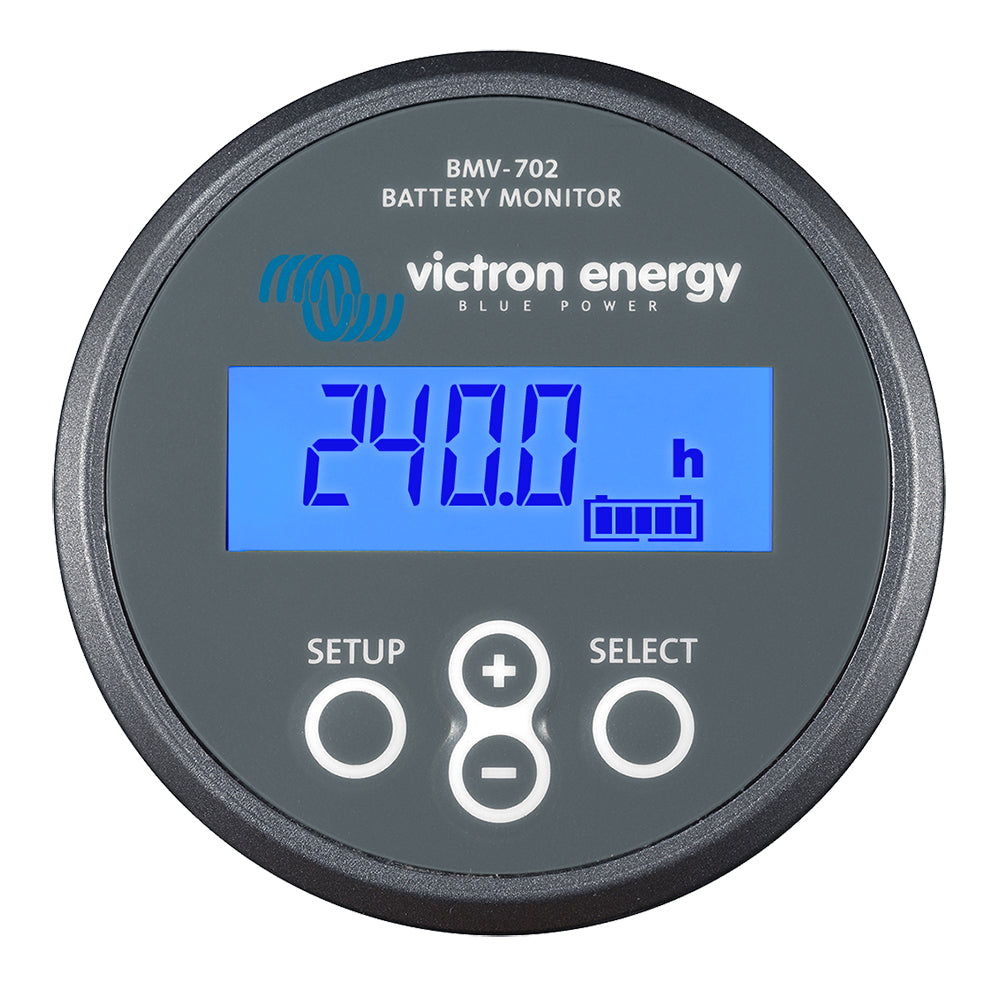

Victron BMV-702 Battery Monitor - Grey

Victron BMV-702 Battery Monitor - Grey is your precise battery “fuel gauge” for accurate state of charge, time-to-go, and load power. It uses advanced software to account for amp-hours consumed, discharge current, temperature, and battery age, giving you a realistic view of your battery system’s health and remaining capacity.

Beyond the basics, the BMV-702 displays:

Key features

• State of charge, remaining time to go, and power consumption in Watts
• Programmable visual and audible alarms to protect your battery system
• Programmable relay to automatically turn off non-critical loads or to start a generator when needed
• An additional input that can be programmed to measure the voltage of a second battery, battery temperature, or midpoint voltage
• Bluetooth Smart compatibility with a dongle for monitoring on Apple and Android devices
• VE.Direct communication port for wired data transfer
• Wide input voltage range of 6.5–95 V and high current measurement resolution of 10 mA
• Low standby current consumption (about 2.9 Ah per month at 12 V and 2.2 Ah per month at 24 V)
• 500 A quick-connect shunt and connection kit; shunt selection capability up to 10,000 A

Installation and setup

• Easy to install: all electrical connections are to the quick-connect PCB on the current shunt
• The shunt connects to the monitor with a standard RJ12 telephone cable
• Includes an RJ12 cable (10 m) and a battery cable with fuse (2 m); no other components needed
• Front bezel for square or round display appearance, securing ring for rear mounting, and screws for front mounting
• Smartphone programming: quick install menu and a detailed setup menu with scrolling texts; or use the Bluetooth Smart dongle for a fast setup

What you get

• 500 A quick-connect shunt and connection kit
• Shunt selection capability up to 10,000 Amps
• VE.Direct communication port
• Stores a wide range of historical events to evaluate usage patterns and battery health
