The Victron BMV-710H Smart High Voltage Battery Monitor is engineered for demanding 60–385 VDC systems, delivering precise, real-time insights into battery health and performance. With built‑in Bluetooth, you can wirelessly read all monitored parameters on your phone or tablet via the VictronConnect app, including state of charge, time to go, historical data, and more.
This advanced monitor calculates state of charge by tracking ampere‑hours consumed and integrating the current flow, while sophisticated software accounts for discharge rate, temperature, and battery age to provide a reliable remaining capacity estimate. In addition to the basics like voltage, current, and ampere‑hours, the BMV‑710H displays state of charge, time to go, and power consumption in Watts for a complete view of your system.
Key features and benefits
-
High-voltage compatibility: monitors 60–385 VDC battery systems for boats, RVs, solar setups, and other high‑voltage applications.
-
Bluetooth Smart and VictronConnect: wirelessly read all parameters on Apple or Android devices; optional VE.Direct port for additional connectivity.
-
Comprehensive monitoring: voltage, current, power, ampere‑hours consumed, state of charge, and remaining time at the current discharge rate.
-
Battery health insights: stores a wide range of historical events to evaluate usage patterns and overall battery health; ideal for proactive maintenance.
-
Programmable alarms and relay: set visual/audible alerts and use the relay to turn off non‑critical loads or start a generator when needed.
-

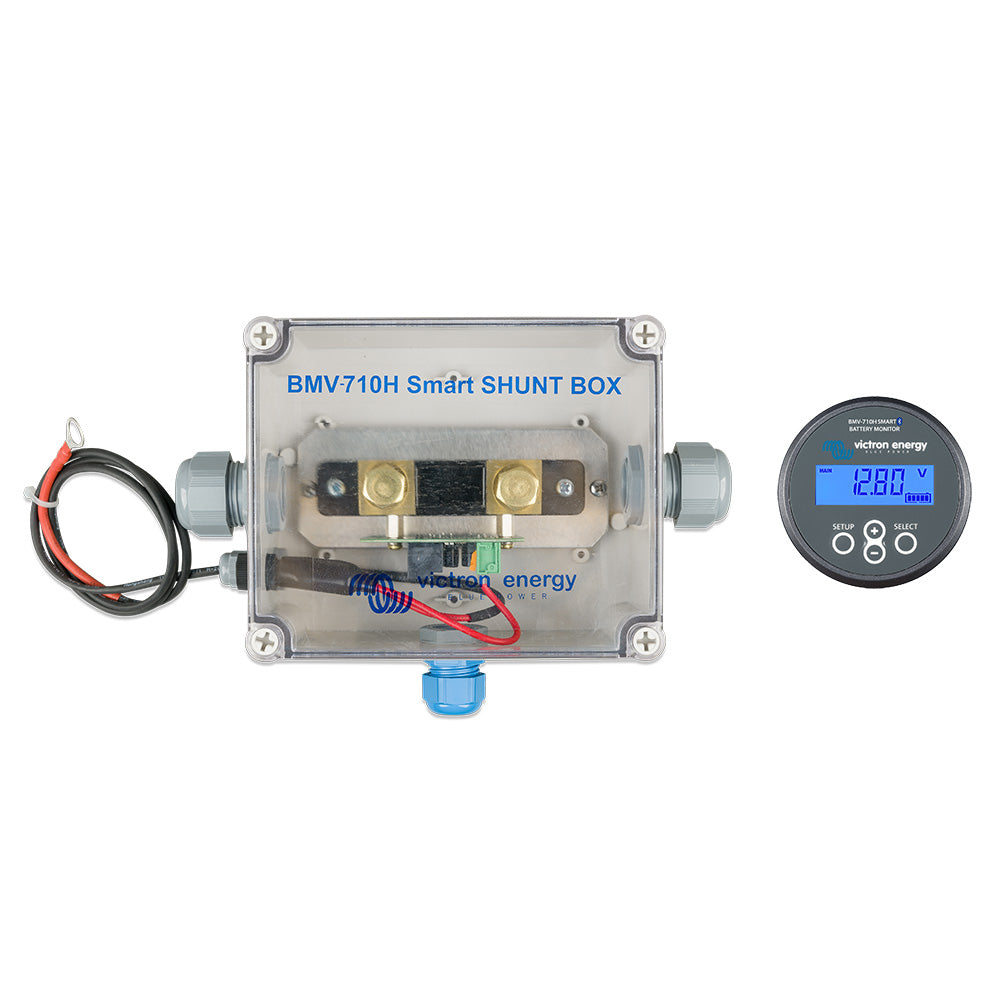

500 A shunt included: a robust 500 A/50 mV shunt housed in a dedicated enclosure for safe high‑current measurement.
-
Easy installation: quick‑connect PCB on the shunt, RJ12 cable (10 m) to the monitor, fused power cable (2 m), and mounting hardware including a round head unit, square bezel, securing ring, and screws.
-
Smart setup: quick install menu and detailed smartphone setup guides; or use the app for fast, intuitive configuration (Bluetooth Smart Dongle required).
-
Low power draw and wide range: low current consumption (< 4 mA backlight off) and robust operation from -40°C to 50°C, with a broad operating scope suitable for harsh environments.
Designed for rapid, reliable installation and ongoing monitoring, the BMV‑710H is an essential tool for maximizing battery life and ensuring you never run out of power unexpectedly. Whether you’re powering critical systems on a vessel or maintaining a large off‑grid setup, this smart monitor delivers clarity, control, and confidence.
