Description

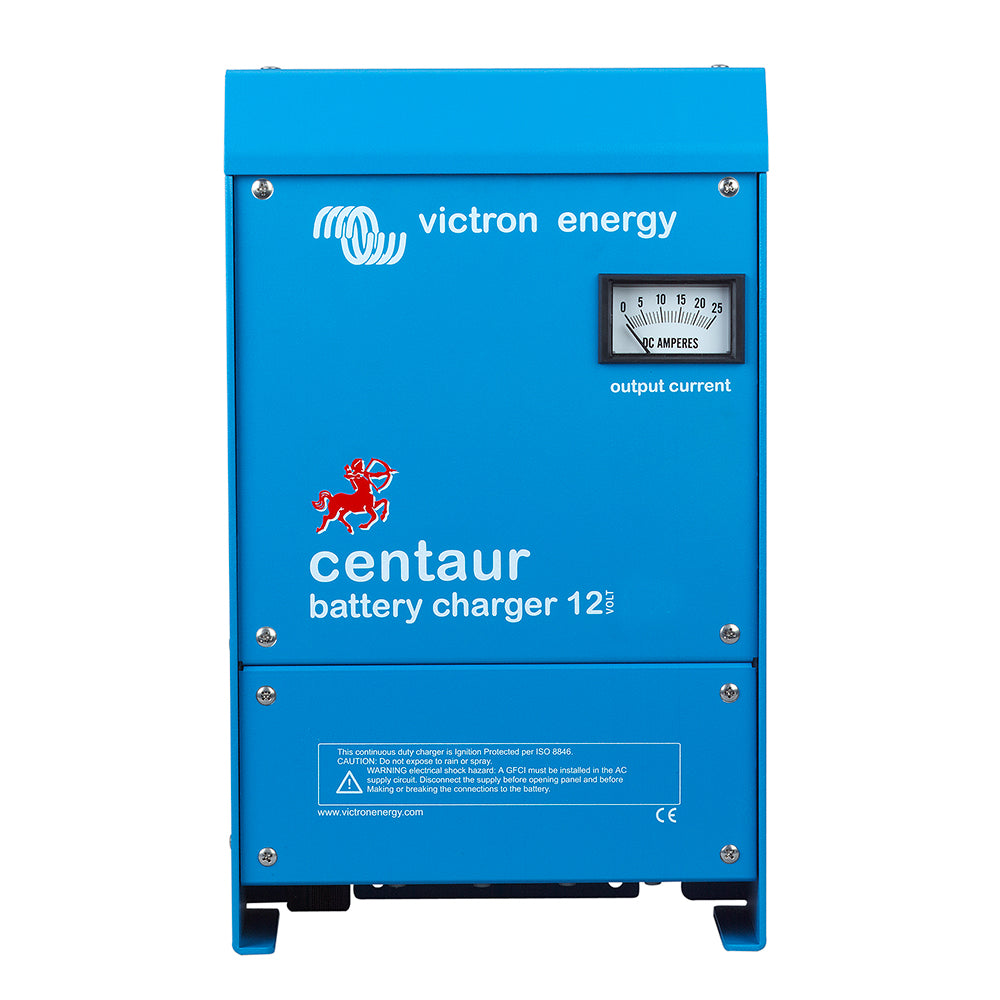

Victron Centaur Charger – 12 VDC, 40 AMP, 3-Bank is a rugged, high-performance battery charger designed to power three independent battery banks from either AC or DC sources. Built to withstand harsh environments, it features an aluminium epoxy powder-coated enclosure with a drip shield and stainless steel fixings, while circuit boards are protected with an acrylic coating for maximum corrosion resistance.
Experience reliable, intelligent charging for boats, RVs, off-grid systems, and demanding installations with a charger that adapts to your power sources and batteries.
Key features
- Three isolated outputs — simultaneously charge up to three battery banks, with each output capable of delivering the full rated current.
- Three-stage charging with temperature compensation — bulk charging until current falls to 70% of rating, a 4-hour timer, then float. An internal temperature sensor adjusts charge voltage by –2 mV/°C per cell to protect battery life.
- Universal input and DC operation — accepts 90–265 VAC input (50/60 Hz) and 90–400 V DC, with no adjustments required. Compatible with AC-DC and DC-DC configurations.
- Rugged, corrosion-resistant build — aluminium epoxy powder-coated case, drip shield, stainless steel fixings, and acrylic-coated circuit boards to withstand heat, humidity, and salt air.
- Flexible charging control — DIP switch selects optimum charge/float voltages for Flooded Lead-Acid, Gel, or AGM batteries for tailored performance.
- Warranty and support — manufactured by Victron Energy (Model CCH012040000). For returns, repairs, or support, contact your dealer. Includes Prop 65 warning as required by law.
This multi-bank charger delivers safe, efficient charging across all three banks, ensuring your batteries stay healthier longer while you rely on reliable power in marine, automotive, and off-grid environments.
