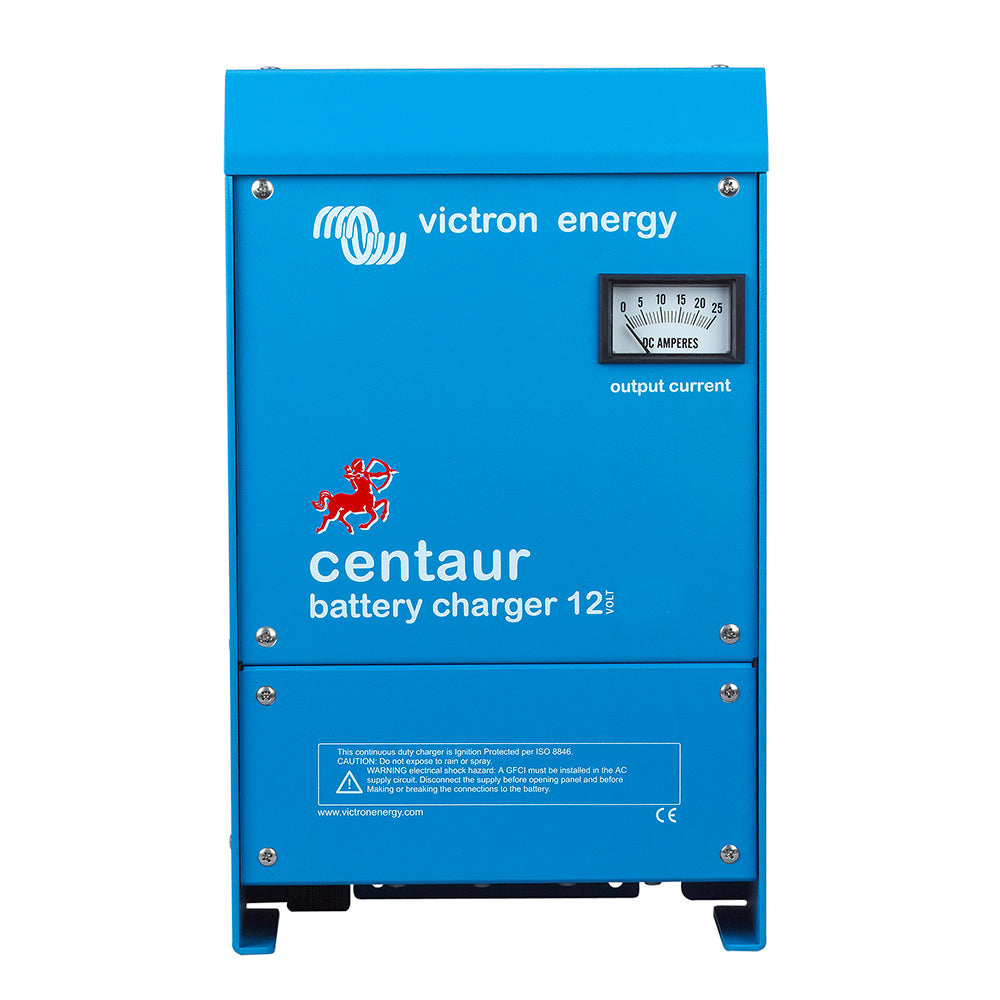

Victron Centaur Charger - 12 VDC - 60AMP - 3-Bank - 120-240 VAC

Victron Centaur Charger – 12 VDC, 60AMP, 3-Bank, 120-240 VAC delivers robust, multi-bank charging for demanding 12V battery setups, combining reliability with flexible power options for both AC and DC sources.

Quality without compromise is built into every Centaur unit. Its aluminium epoxy powder-coated case features a drip shield and stainless steel fixings to withstand heat, humidity, and salt air. Circuit boards receive an acrylic coating for maximum corrosion resistance, and an internal temperature sensor helps protect power components by automatically reducing output under extreme environmental conditions.

• Three isolated outputs that can simultaneously charge three separate battery banks, each capable of delivering the full rated current.
• Three-stage charging with temperature compensation to optimize battery health and performance. The charger delivers bulk charge until the output falls to 70% of the rated amps, then starts a four-hour timer before switching to float.
• Universal input supports AC 90–265 V (50/60 Hz) and DC operation (AC-DC and DC-DC). All models operate without adjustment across 90–265 VAC and can accept 90–400 V DC as well.
• Dip switch control to select optimum charge/float voltages for Flooded Lead-Acid, Gel, or AGM batteries.
• Three independent outputs each delivering the full output current for maximum charging flexibility and redundancy.
• Safety and durability features include internal temperature compensation of –2 mV/ºC (–1 mV/ºF) per cell and rugged construction designed for harsh environments.

The Centaur charges in bulk mode until it reaches the set amperage, then transitions through a precise four-hour timer to float, maintaining batteries at the ideal voltage without overcharging. Its robust design, corrosion-resistant components, and three-bank capability make it ideal for marine, RV, solar, and industrial applications where dependable 12V charging across multiple banks is essential.

Warranty and safety notes: This product carries California Prop 65 warnings. For returns, repairs, or support issues, please contact your Victron dealer. Manufacturer: Victron Energy. Manufacturer Part No: CCH012060000. UPC: 8719076021513.
