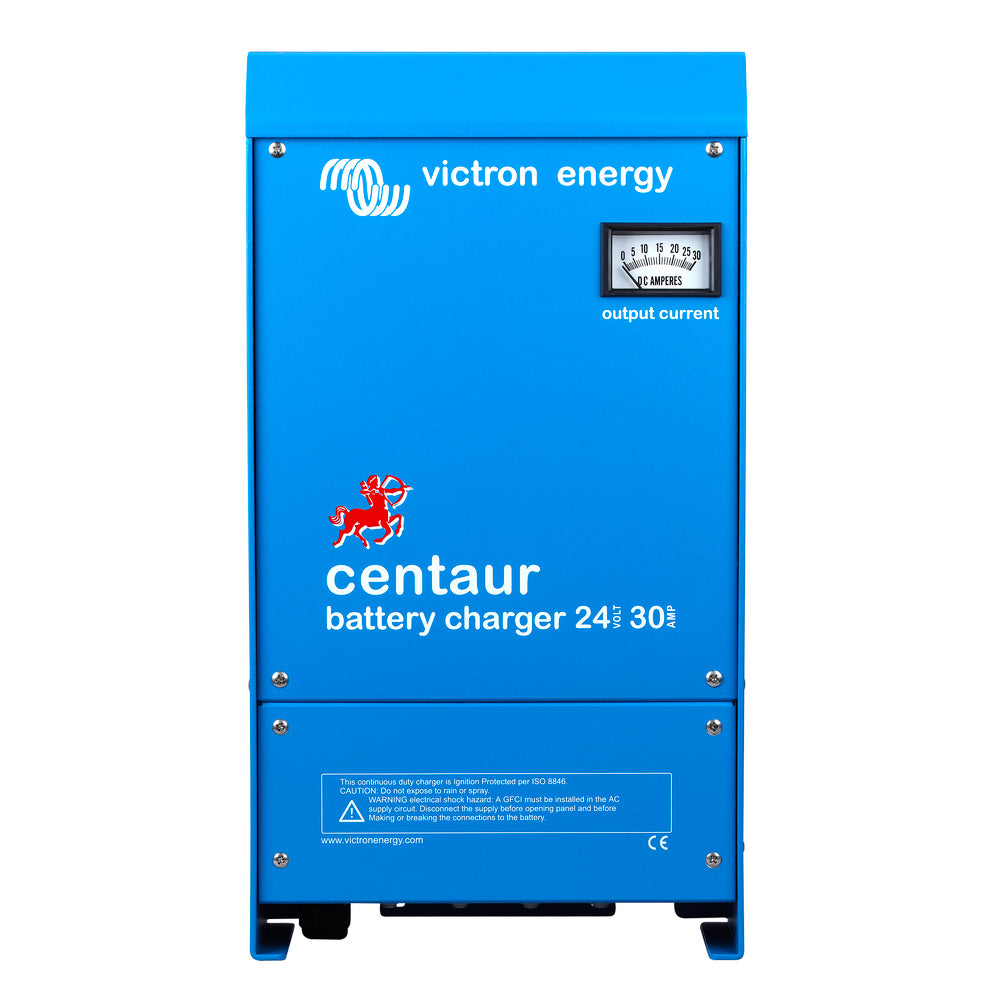

Power your batteries with confidence using the Victron Centaur Charger — a rugged 24 VDC, 30A, 3-bank charger engineered for demanding environments. With three independently regulated outputs, universal power input, and smart charging that protects battery life, it keeps three battery banks charged safely and efficiently.
Three isolated outputs for independent charging
- Three isolated outputs, each capable of delivering the full rated current
- Charge three separate battery banks simultaneously without compromise
Smart charging for longevity
- Three-stage charging with temperature compensation
- Charges at bulk rate until output reduces to 70% of the rated amps, then a 4-hour timer begins before switching to float
- Internal temperature sensor compensates charge voltage by –2 mV/ºC (–1 mV/ºF) per cell
- DIP switch selects optimum voltages for Flooded Lead-acid, Gel or AGM batteries
Universal power compatibility
- Universal input range: 90-265 VAC (50/60 Hz) with auto-adjustment; also suitable for 90-400 V DC supplies
- AC-DC and DC-DC operation with no adjustments needed across the full input range
Rugged build for harsh environments
- Aluminium epoxy powder-coated case with a drip shield and stainless steel fixings for resistance to heat, humidity, and salt air
- Circuit boards protected with acrylic coating for maximum corrosion resistance
- Integrated temperature sensors ensure safe operation, automatically moderating output under extreme conditions
Technical excellence and support
- Three outputs that each can supply full output current, delivering reliable performance across three banks
- Easy to install with built-in protections and smart charging logic designed for long-term battery health
Technical Specs
- Battery type: 24 VDC system, 3 banks
- Output: 30 A per bank (3 banks)
- Input: 90-265 VAC (50/60 Hz); 90-400 V DC
