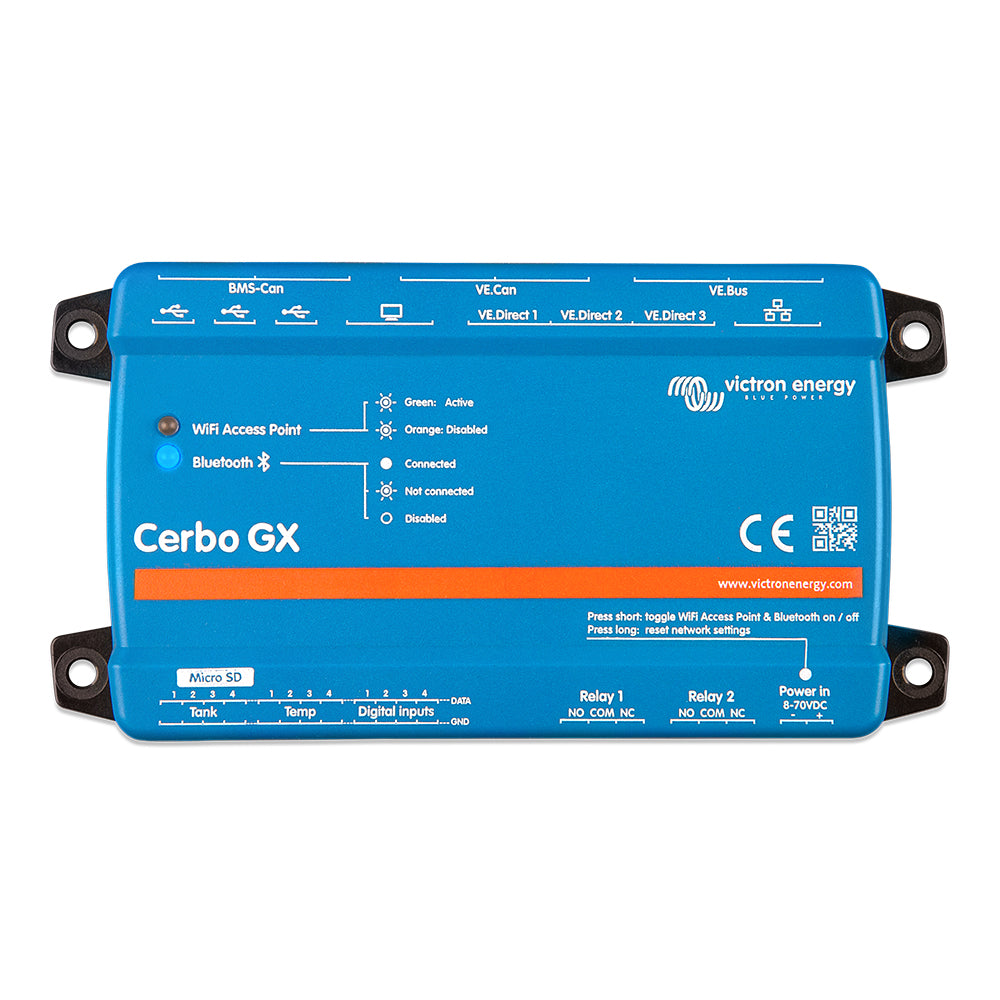

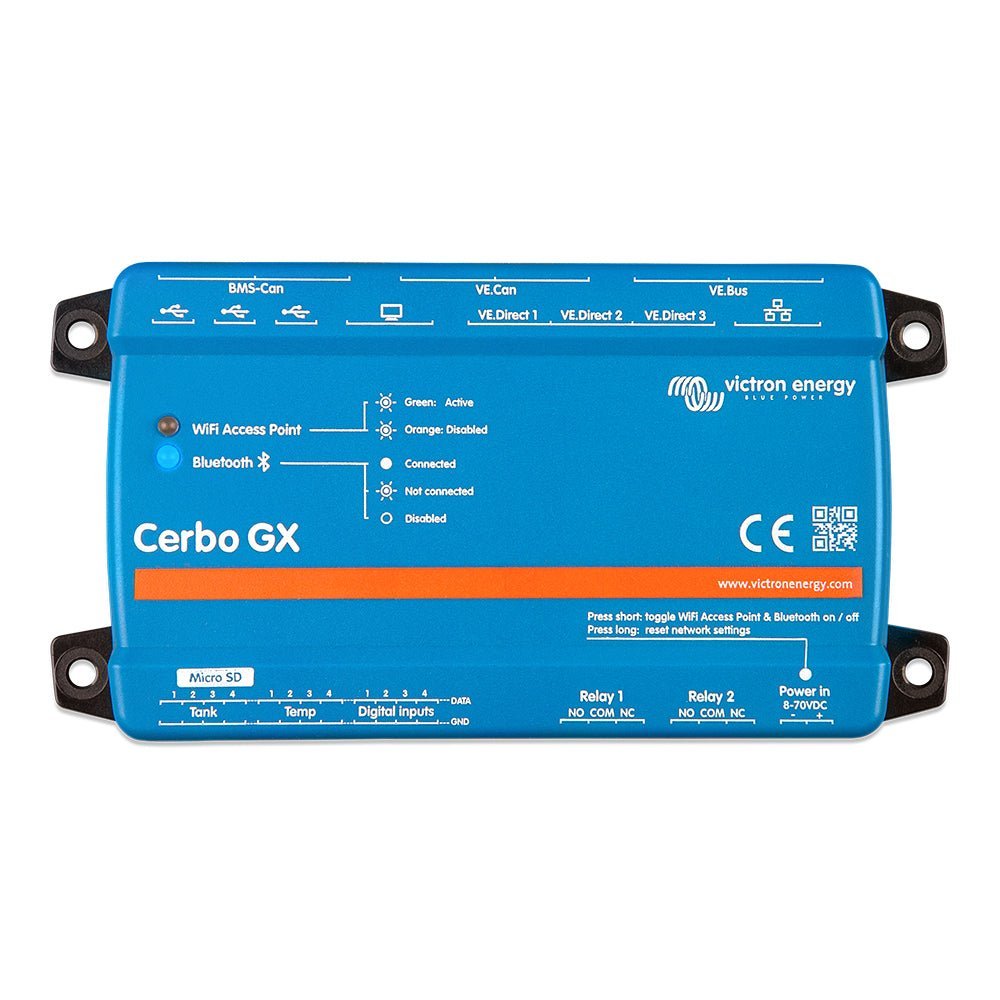

Victron's Cerbo GX MK2 is the workhorse of your energy system—a centerpiece that keeps your power setup connected, informed, and under your control. This hardware revision 2 model introduces two VE.Can ports, 3 USB host ports, and digital input pulse counting, delivering enhanced connectivity and smarter management for solar, storage, generator, and mains integration. The MK2 advances on the Cerbo GX with two fully functional CAN bus ports (VE.Can 1 and VE.Can 2), where VE.Can 1 is isolated for safer multi-device networking. RJ-45 sockets have been rotated for easier cable removal, and all three USB ports are fully functional, including the USB port previously reserved for power. Digital inputs now support pulse counting for advanced sensing and automation.
Perfect Monitoring & Control
-
Real-time system insight: instantly monitor the battery state of charge, power consumption, and energy harvest from PV, generator, and mains, plus tank levels and temperature measurements.
-
Smart power management: easily control shore power input current limit, trigger (auto)start/stop of generator(s), and adjust settings to optimize performance.
-
Remote diagnostics & alerts: track alerts, run diagnostic checks, and resolve challenges remotely via the Victron Remote Management (VRM) portal or VictronConnect (Bluetooth enabled).
Maximize Your System Performance
-
Expanded CAN-bus networking: two VE.Can ports (VE.Can 1 isolated) enable advanced configurations with Lynx Smart BMS (VE.Can) and RV-C ports, expanding compatibility and reliability.
-
Real-time tuning: keep all components in perfect harmony with instantaneous, cross-device data and control.
Expand Your View
-
GX MK2 Touch 50 (optional): a slim, 5-inch waterproof display that provides an instant overview and quick in-field adjustments. Top-mountable and easy to install, it offers a crisp dashboard without complex cutouts.
Simple Mounting & Configuration
-
Installer-friendly: optimized for DIN-Rail mounting (DIN35 adapter small, not included) and designed for professional installations.
-
Streamlined cockpit: the separate touchscreen can be bolted atop a dashboard, eliminating the need for perfect cut-outs like older models.
-
Minimal wiring: connects through a single cable, reducing dashboard clutter and simplifying installation.
-
Fast setup: Bluetooth enables quick connection and configuration via the VictronConnect app.
Outsmart any power challenge with the Cerbo GX MK2—the smartest way to monitor, control, and optimize your entire energy system in real time. From remote monitoring to hands-on tuning, this communications center redefines how you interact with your power.
