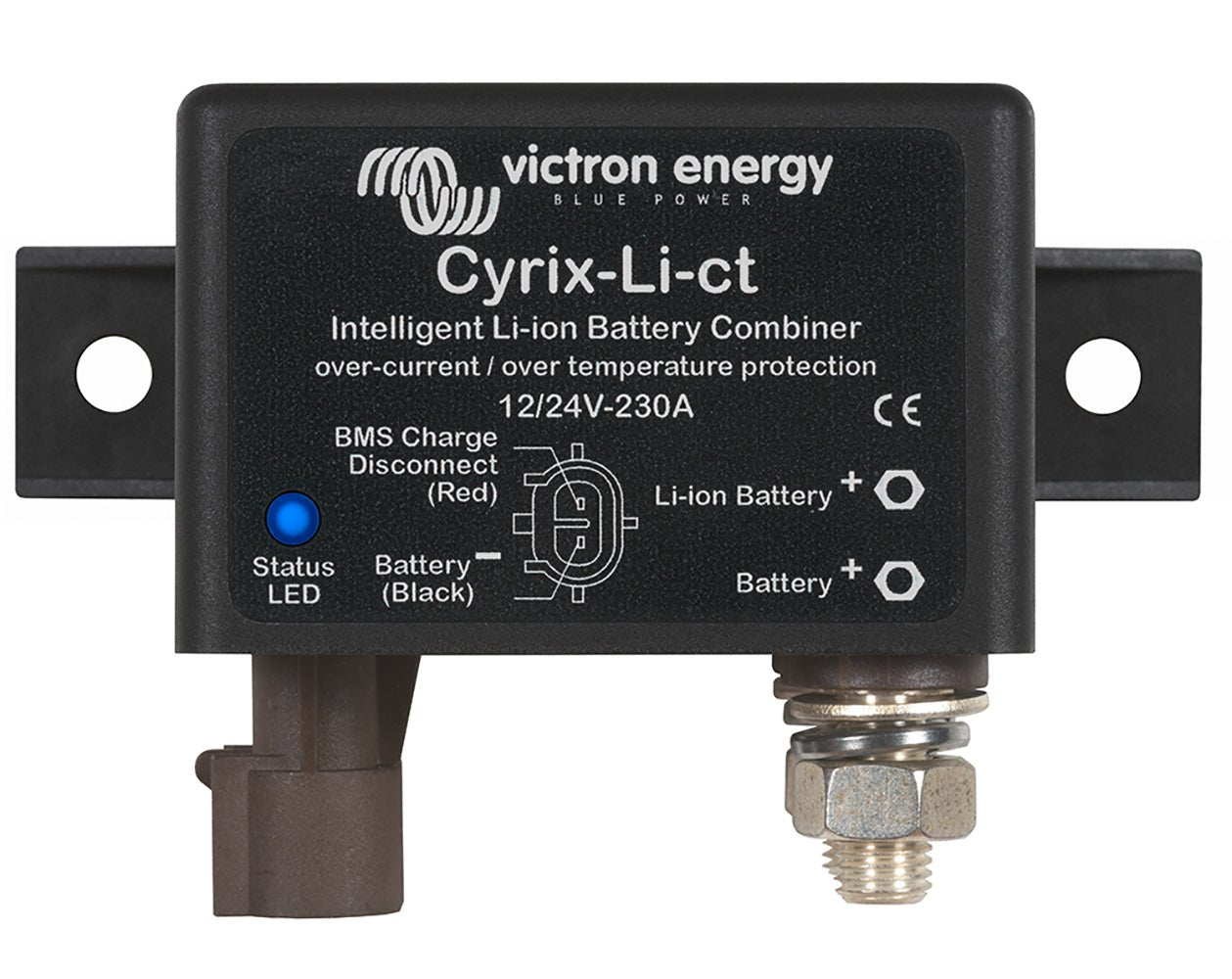

The Victron Cyrix-Li-ct 12/24V-230A Intelligent Li-Ion Battery Combiner is a microprocessor-controlled heavy-duty relay that automatically parallels batteries in your system when charging begins, and safely disconnects when discharge begins. Designed as an advanced replacement for diode isolators, it delivers virtually no voltage loss, so you don’t need to raise the output of your alternator or battery charger.
Key features
-
Intelligent parallel connection automatically links batteries in parallel when one reaches a pre-set charging voltage, and disconnects as voltage falls below float level.
-
Low-voltage drop delivers virtually no voltage loss, preserving full charging efficiency and system performance.
-
Lead-acid + LiFePO4 compatibility can parallel a lead-acid starter battery with a LiFePO4 battery for seamless mixed-chemistry operation.
-
Start assist function provides a short negative pulse to close the relay for 30 seconds, aiding crank assist when needed.
-
VE.Bus BMS compatibility reacts to charge disconnect conditions; if the BMS output is high and 13.4 V (26.8 V on the corresponding terminal) is sensed, Cyrix disengages promptly to protect cells.
-
Protection against voltage spikes includes a built-in transient voltage suppressor to limit spikes when disengaging due to overvoltage or over-temperature conditions.
-
Reliable, rugged design built for heavy-duty automotive and marine electrical systems.
How it works
The Cyrix-Li-ct monitors battery voltages and the VE.Bus BMS signals to determine when to connect or disconnect batteries in parallel. When charging voltage is present on one battery, the Cyrix-Li-ct connects the packs, sharing the charge current with minimal loss. If any battery shows overvoltage or the BMS signals a fault, the controller disengages the connection to protect the cells. A special start-assist pulse can help with cranking, and the built-in transient suppressor keeps voltage transients from damaging components.
Why choose Cyrix-Li-ct
-
Efficient power sharing with no significant voltage drop compared to diode isolators.
-
Flexible compatibility supports both lead-acid starter batteries and LiFePO4 packs in a single system.
-
Enhanced safety rapid disengagement on overvoltage/over-temperature protects battery cells and electronics.
-
Smart control microprocessor-based logic ensures smooth, automated operation with minimal maintenance.
Specifications & compatibility
-
System voltage: 12/24V
-
Current rating: 230A
-
Chemistries supported: Lead-acid and LiFePO4 (Li-Ion) in a parallel configuration
-
Control behavior: Connects when charging voltage is present; disconnects when voltage falls below float level
-
Protection features: Transient voltage suppressor for spikes; rapid disengagement on overvoltage/over-temperature
-
Start assist: Short negative pulse closes relay for 30 seconds
-
OEM details: Manufacturer: Victron Energy; Part No: CYR010230412; UPC: 8719076034346
For returns, repairs, or support related to this product, please contact your Victron dealer for assistance.
