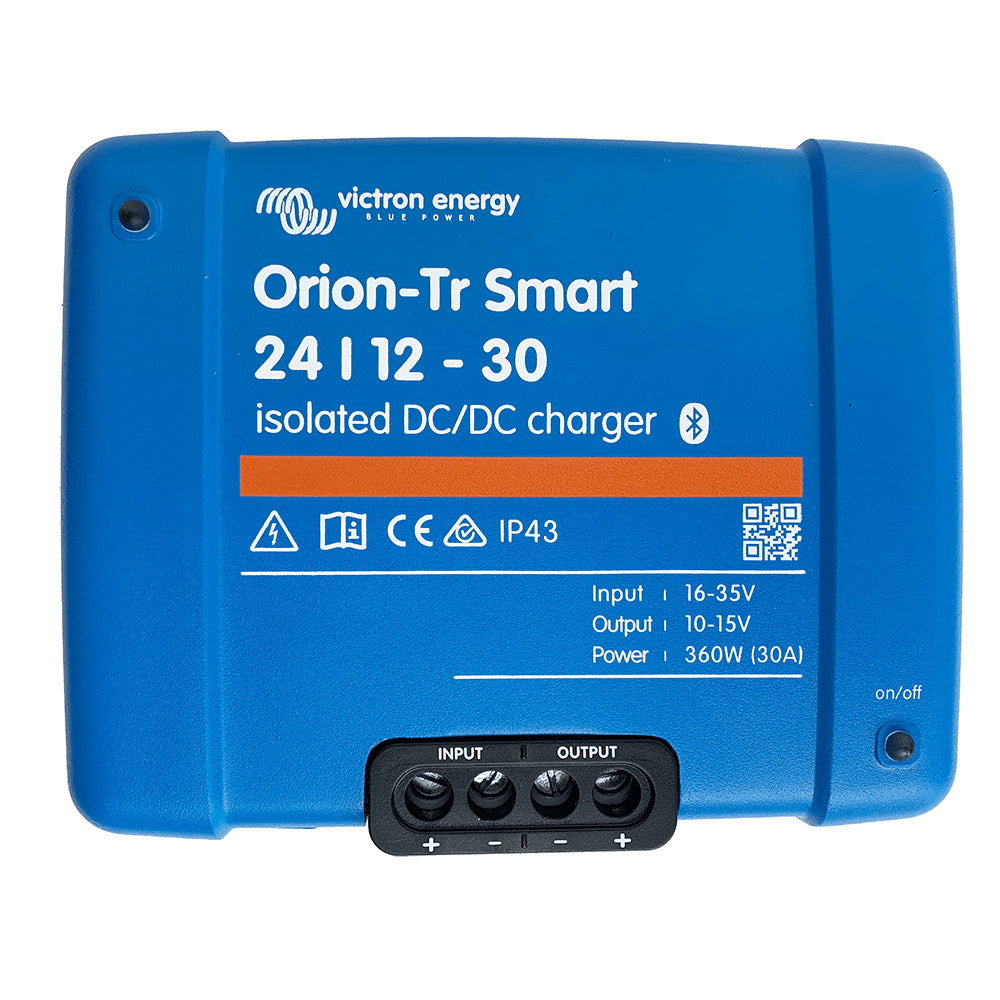

Victron Energy Orion-TR Smart 24/12-30A (360W) Isolated DC-DC Charger or Power Supply is a compact, intelligent solution designed to keep your service battery charged while protecting the starter battery in boats, RVs, and vehicles with smart alternators.
-
Isolated DC‑DC charger or power supply: charges a secondary battery while acting as a stable, constant voltage source, preventing starter battery discharge and handling long cable runs or Euro 5/6 smart alternators.
-
Continuous output current: 30 A at nominal voltage, with a maximum ambient rating of 40°C.
-
Power rating: up to approximately 360 W of charging power.
-
Nominal output and voltage range: 12.2 V nominal output with an adjustable 10–15 V range (±0.2 V tolerance) and 2 mV rms output noise.
-
Input range: wide input range of 20–35 V; under‑voltage shut down at 14 V and restart at 15 V.
-
Bluetooth Smart Enabled: monitor, adjust settings, and update the charger using the VictronConnect App; instant readouts of warnings and alarms on the device list.
-
Adaptive 3‑Stage Charge Algorithm: Bulk – Absorption – Float charging that adapts to lead‑acid chemistry, shortening absorption on shallow discharges to avoid overcharging, and automatically extending absorption after deep discharges. For lithium batteries, the absorption time is fixed (default 2 hours).
-
Engine/alternator compatibility: designed for use in vehicles with smart Euro 5 and Euro 6 engines and includes engine running detection to prevent unwanted starter battery discharge when the engine is off.
-
Remote On/Off: connect a two‑pole remote switch or relay; versatile switching options allow control from multiple points in your system.
-
Parallel capable: any number of units can be connected in parallel to increase total output current for larger charging needs.
-
Protection and reliability: high‑temperature protection reduces output current at high ambient temperatures; IP43 protection with downward‑facing screw terminals; short‑circuit proof construction for safe installations.
-
Practical installation: screw terminals require no special tools; built‑in input fuse is non‑replaceable for durable protection.
The Orion-TR Smart charger delivers precise, programmable charging while guarding your starting battery. It’s a versatile, reliable choice for modern boats and RVs that demand smart energy management, scalable charging, and seamless Bluetooth control for lead‑acid or lithium chemistries.
