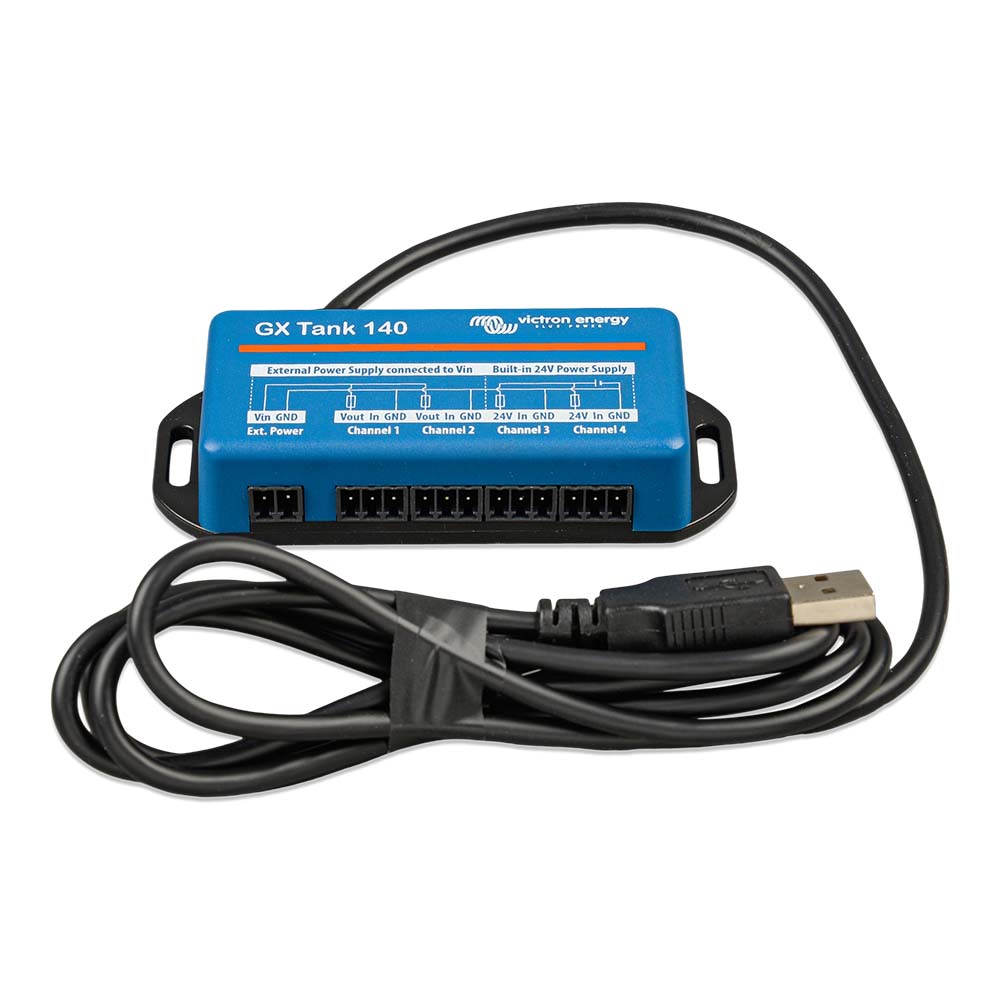

Victron GX Tank 140 Tank Monitoring is a compact, versatile tank level monitoring solution for up to four sensors. Designed to integrate with the GX monitoring ecosystem (Cerbo GX is the most commonly used), it delivers accurate tank readings locally and remotely through the VRM Portal. Sensor not included.
Key capabilities
-
Monitors up to 4 sensors for multiple tanks with a single gateway.
-
Supports 4–20 mA and 0–10 V sensors for flexible installation options.
-
Local and remote access to tank levels via the GX interface and the VRM Portal.
-
USB-powered — no extra power wires required. The GX Tank connects to the GX device for both data and power.
-
Simple wiring — two inputs supply 24 V to power the senders; the remaining two channels can be externally powered. The terminal includes fused outputs to help power external devices.
-
Configurable ranges — set upper and lower limits to match your sender’s scale (e.g., 0–5 V).
-
Damping — readings are averaged with adjustable damping from 1 to 60 seconds for stable values.
-
Fault detection — detects faulty sensors or wiring and raises alarms when values are out of range.
-
Marine integration — on NMEA 2000 networks, tank levels can be transmitted to compatible displays (MFDs) for onboard monitoring.
-
Sensor not included — add your own tank senders to fit your setup.
The GX Tank 140 is an accessory to Vicron’s GX system line, designed to be straightforward to install and configure. For returns, repairs, or support issues, contact your dealer.
Manufacturer: Victron Energy • Part No: BPP920140100 • UPC: 8719076053781
