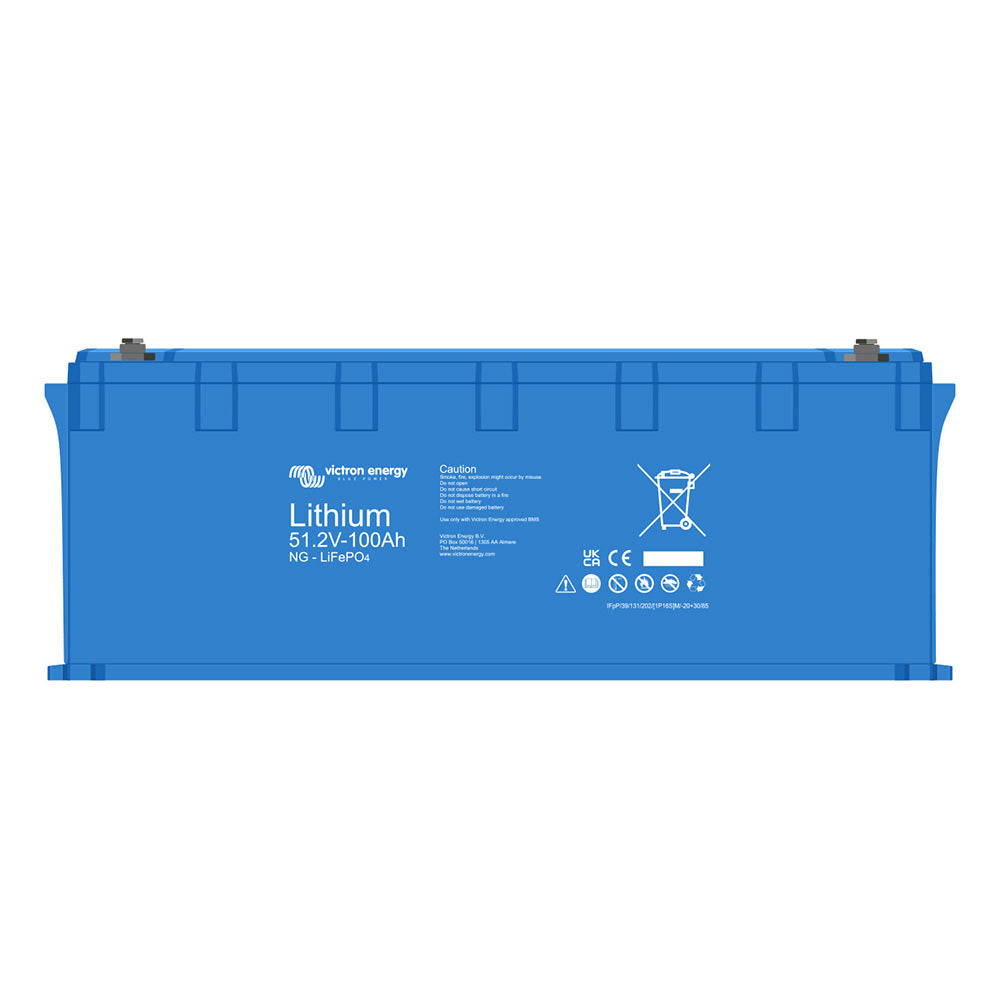

Experience the future of energy storage with the Victron Lithium Battery 48VDC 100Ah NG Smart LifePO4. The NG (Next Generation) series advances the proven Lithium Smart platform with smarter management, tougher reliability, and easier system integration for home, marine, off-grid, and mobile power.

The NG LiFePO4 battery delivers safety, longevity, and dependable performance. It uses Lithium Iron Phosphate chemistry and is available with nominal voltages of 12.8V, 25.6V, and 51.2V. Batteries can be connected in series, parallel, or series/parallel to build banks for 12V, 24V, or 48V systems. A single system can include up to 50 batteries, delivering up to 192 kWh in a 12V configuration or up to 384 kWh in 24V/48V configurations.

Integrated sensing and smart control: An integrated shunt feeds real-time battery data to the Lynx Smart BMS NG, which calculates state of charge and publishes live readings via VictronConnect, GX devices, or the VRM Portal. Real-time visibility includes cell voltages, current, and temperatures with automatic firmware updates and warnings delivered automatically.

Automatic setup and seamless monitoring: The BMS automatically detects system voltage and the number of batteries in parallel, series, or series/parallel configurations. Fully automated operation is enabled through VictronConnect, a GX center, or the VRM Portal, simplifying installation and ongoing management. Note: the Lynx Smart BMS NG 500A/1000A (and future models) are required and sold separately.

Rugged, easy installation: Easy bracket mounting helps secure the battery firmly, preventing slipping or tipping. The units are designed for demanding environments with increased ingress protection and a rugged build that supports reliable operation anywhere.

Durability and efficiency: The Lithium NG batteries are dust-tight and protected against low-pressure water jets (IP65), reducing maintenance concerns in challenging environments. They also feature a significantly reduced self-discharge rate, now a maximum of 2% of capacity per month, contributing to longer life and readiness when you need it.

Key specifications at a glance:

• Voltage options: 12.8V, 25.6V, 51.2V; 48V nominal system for this model
• Maximum single-bank size: up to 385 kWh
• Modules available in 12V, 24V, and 48V configurations
• Protection class: IP65
• Bracket and strap mounting for secure installation
• Low self-discharge: ≤2% per month

Please contact your dealer for any returns, repairs, or support issues related to this product.
