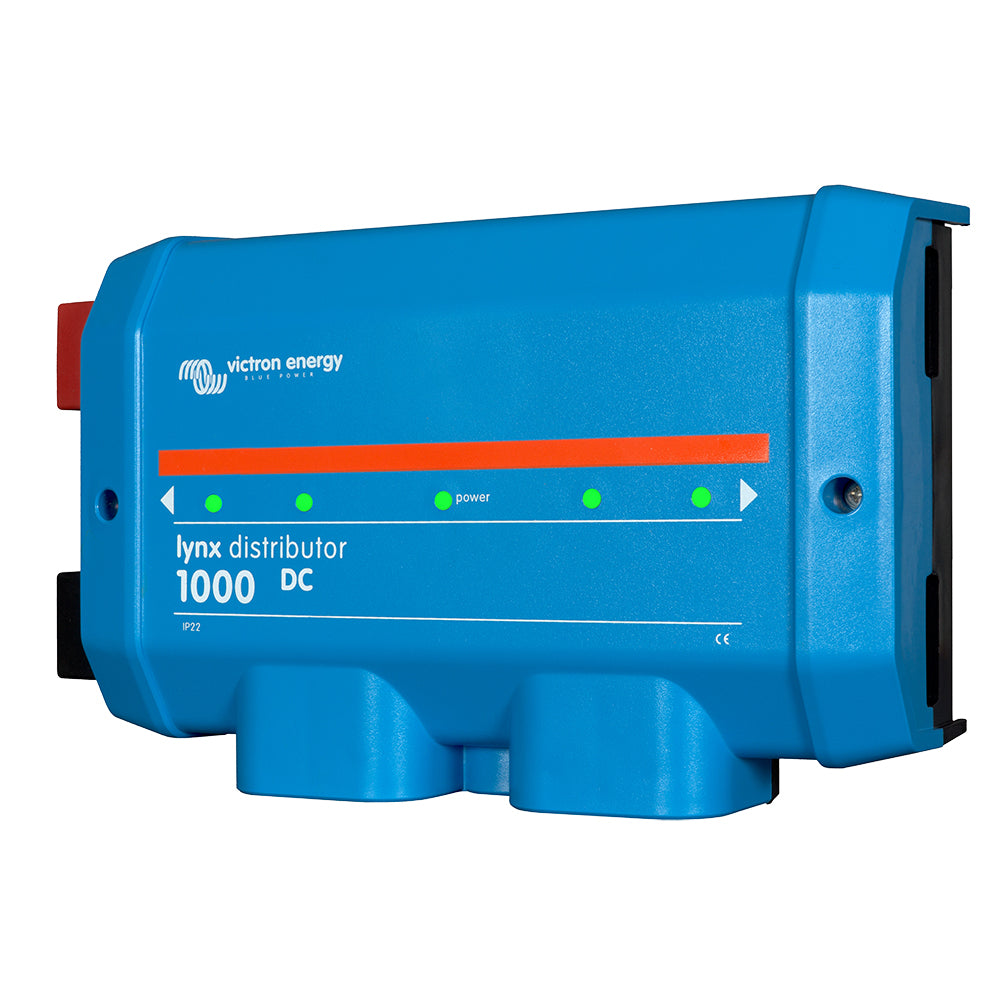

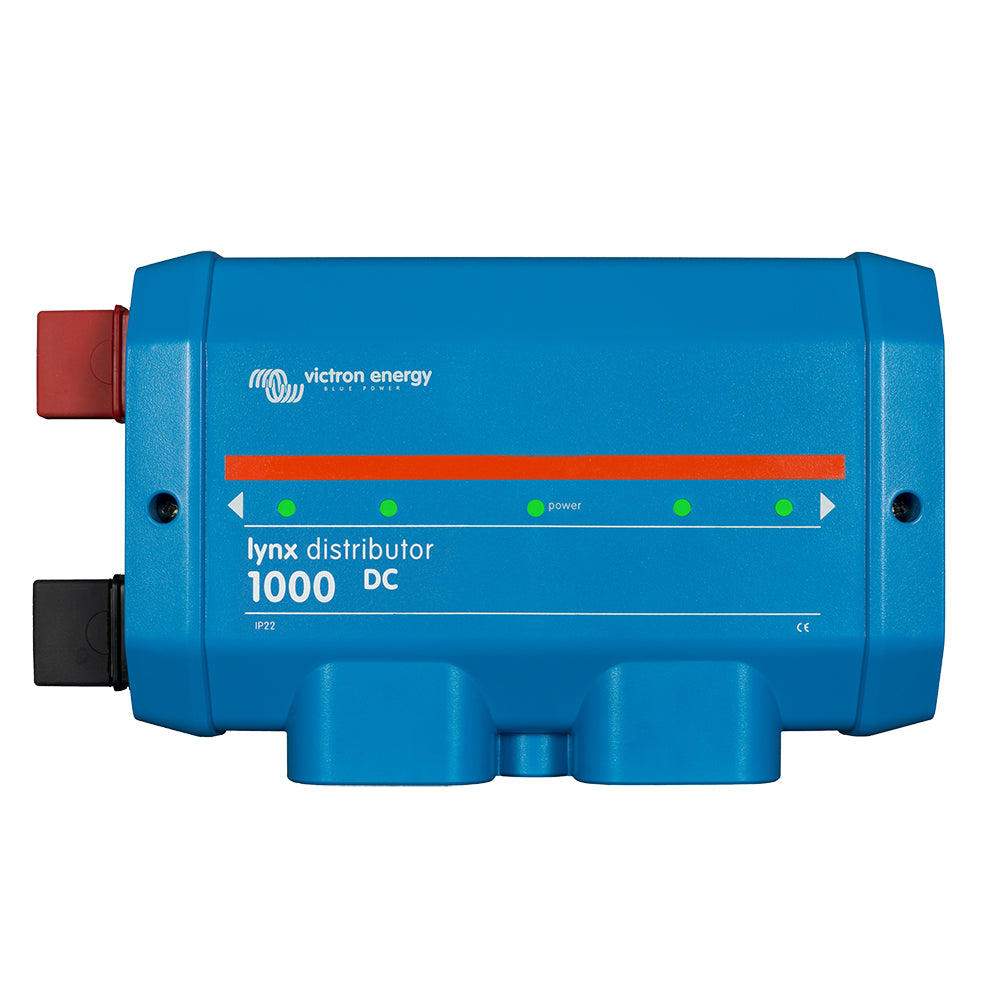

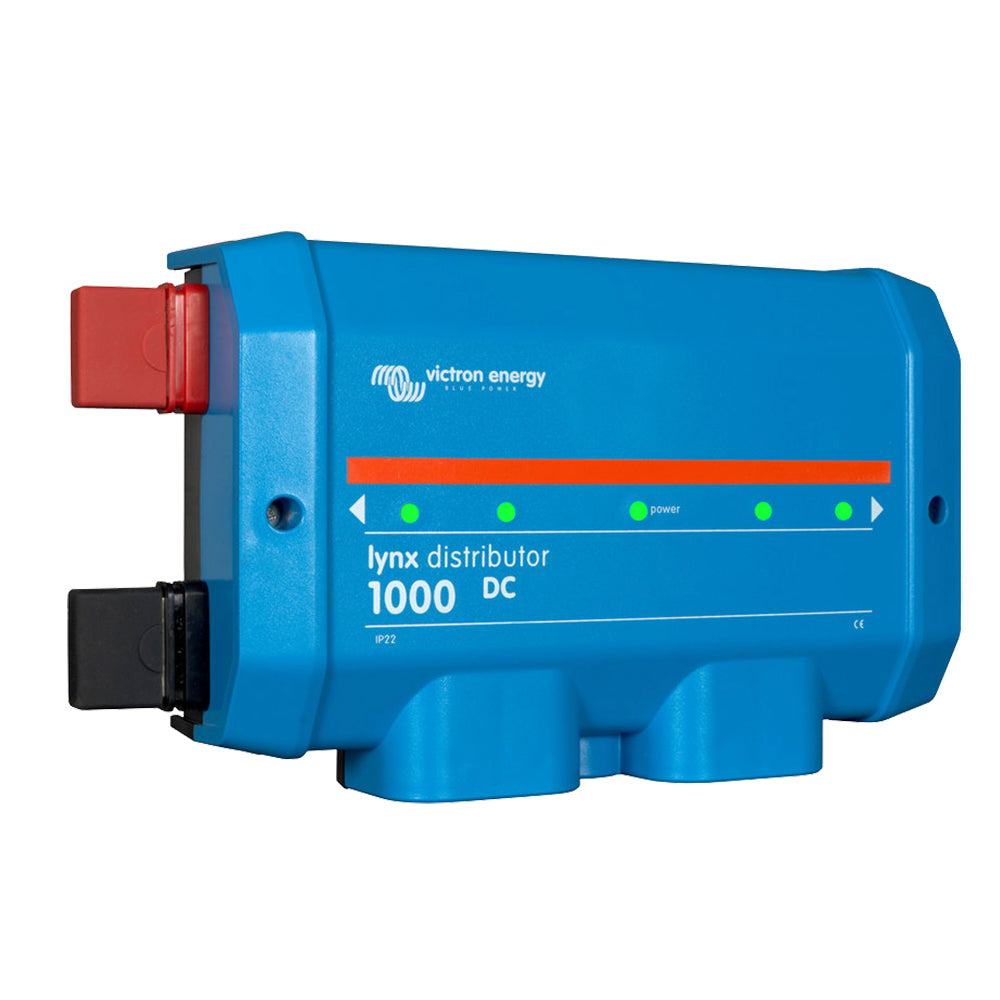

Victron Lynx Distributor is a modular DC bus bar designed for reliable, scalable power distribution in marine, RV, automotive, and off-grid installations. It centralizes four DC circuits with built-in positive and negative bus-bars for clean, centralized connections.
-
Four fuse locations: Independent fuse locations with front LEDs to monitor each circuit.
-

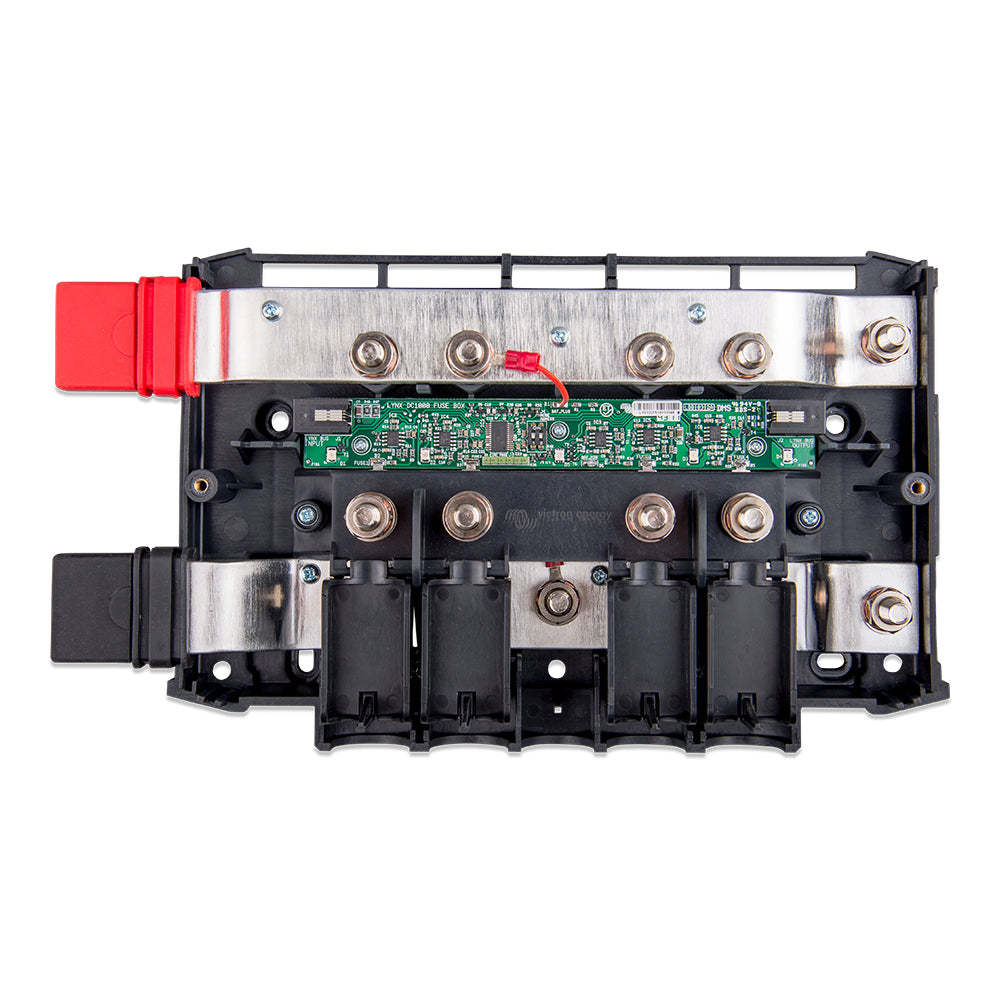

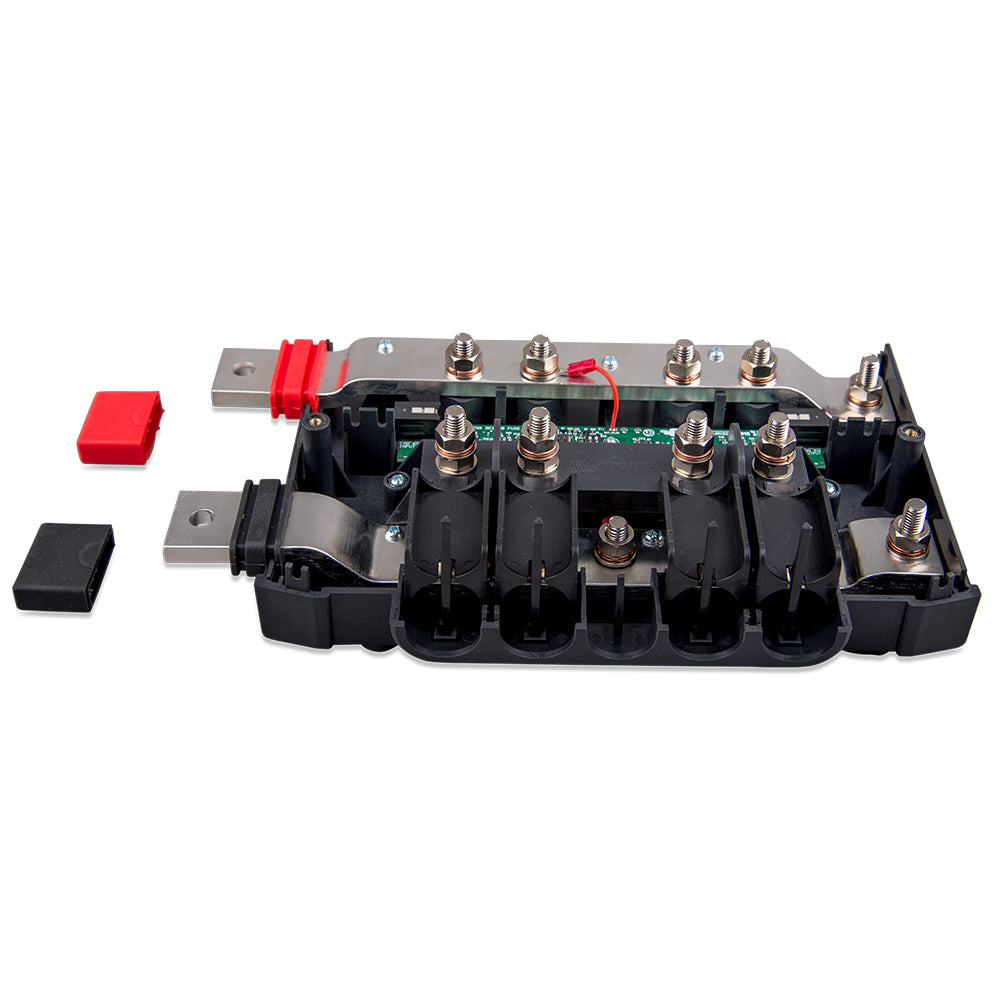

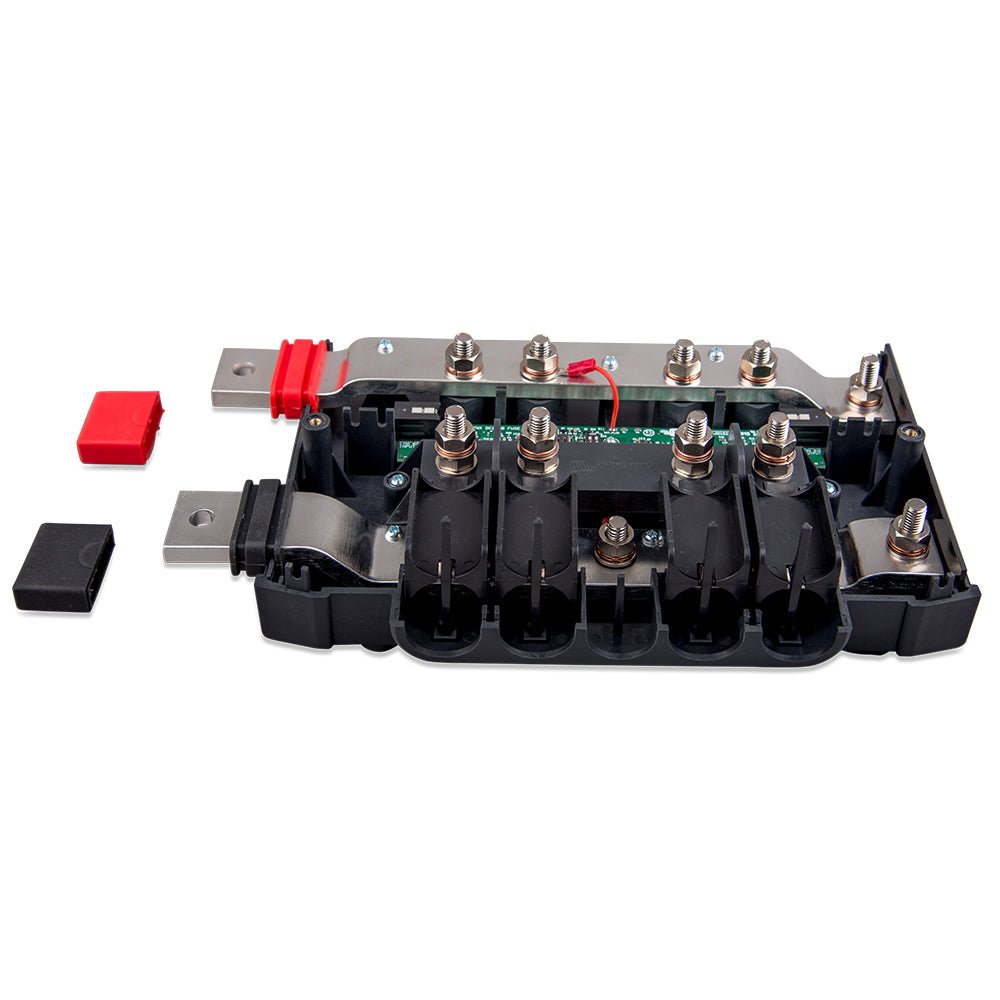

Built-in bus-bars: Positive and negative bus-bars provide clean, centralized connections for four DC circuits, loads, or DC groups.
-
Per-group protection: Space for individual DC fuses per group to keep each circuit isolated and easier to manage.
-
Optional fuse-indicator LEDs: Can be enabled when connected to a Lynx Shunt; powered from 8–70 VDC via RJ11 with a 5 V output. RJ11 lead included.
-
Lynx Shunt compatibility: The Lynx Shunt offers two ports (either may be used) to power fuse indicators for the Distributor.
-
LED status behavior: Central LED is green when all is OK; if a fuse is blown or missing, the central and fuse LEDs turn red. If not all connection points are used, dummy fuses can extinguish red LEDs.
-
In-box wiring connectivity: RJ11 fly-leads are included to connect the Lynx Shunt to the Distributor; two ports on the Shunt allow flexible wiring.
-
Safety and compliance: WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
-
Part numbers: Manufacturer: Victron Energy • Part No: LYN060102000
-
System integration: Designed to work within the modular Lynx ecosystem, making future upgrades straightforward while keeping critical DC systems organized.
By centralizing fuse protection and providing clear status indicators, the Lynx Distributor helps you keep critical DC systems organized and safe. Its four independent fuse locations allow you to tailor protection for each circuit, while the built-in bus-bars reduce wiring complexity. The LED indicators deliver quick health checks for troubleshooting in demanding environments, and optional fuse indicators via the Lynx Shunt add at-a-glance visibility across your installation.
