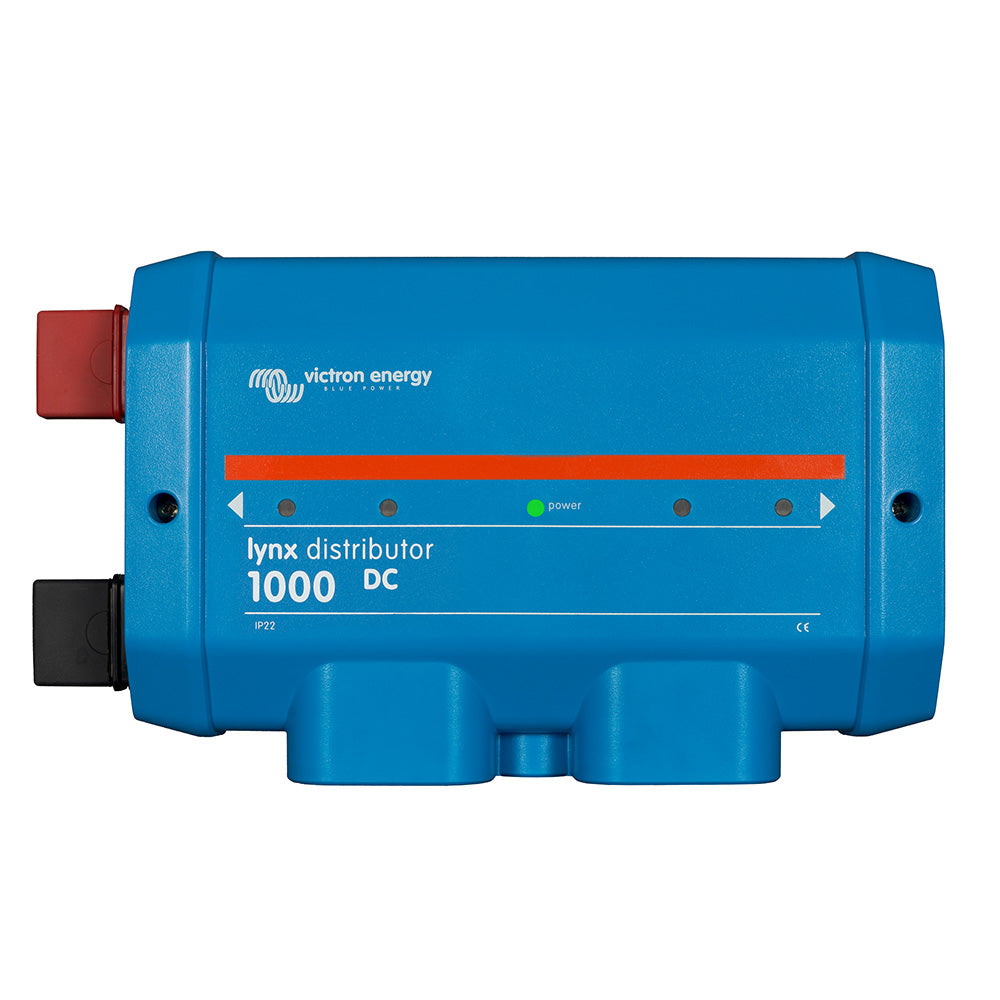

Introducing the Victron Lynx Distributor w/M10 Terminals — a rugged, modular DC distribution hub designed for safe, scalable battery power systems. Part of the Lynx Distribution System, this 1000A M10-busbar model consolidates power distribution, fusing, monitoring, and smart configuration in one compact unit.
Key features
-
High-current, busbar design — positive and negative busbars rated for up to 1000A, with four connections on the positive busbar and four connections on the negative busbar (plus a ground in the negative busbar).
-
M10 busbar joints — robust M10 connections for modular assembly with other Lynx modules; fuse and cable connections are M8.
-
Fuse-protected, monitored circuits — four fuse-protected connections on the positive busbar with integrated fuse monitoring and four fuse status LEDs.
-
Grounded negative — negative busbar includes four connections plus a dedicated ground.
-
Diagnostics at a glance — power LED plus four fuse status indicator LEDs keep you informed at a glance.
-
Smart BMS integration — when used with a Lynx Smart BMS, up to four Lynx Distributors can report fuse status to the Lynx Smart BMS (VE.Can) and be monitored via the VictronConnect App or GX device. Note: this feature is not available when connected to a Lynx Shunt VE.Can.
-
Included cabling — ships with a 40 cm RJ10 cable that powers the distributor and transmits data to a connected Lynx Smart BMS.
-
MEGA fuse-ready — designed to hold MEGA fuses for high-current, automotive-grade safety.
-
Part of a modular system — integrates with Lynx Power In, Lynx Shunt VE.Can, and Lynx Smart BMS to create a complete DC distribution and battery management ecosystem.
System compatibility and monitoring
The Lynx Distribution System is a modular solution for DC distribution, fusing, battery monitoring, and lithium battery management. When paired with a Lynx Smart BMS, you can configure and monitor the system using the VictronConnect App, and up to four Lynx Distributors can be monitored from a GX device when connected to a Lynx Smart BMS. For returns, repairs or support, contact your Victron dealer.
Specifications & what's included
-
Model — 1000A Lynx Distributor with M10 busbars
-
Power/data connection — 40 cm RJ10 cable included
-
Connections — positive: four fuse-protected M8 connections with M10 busbar; negative: four connections plus ground
-
Manufacturer — Victron Energy
-
Part number — LYN060102010
-
UPC — 8719076057628
Warranty and support: Please contact your dealer for any returns, repairs or support issues related to this product.
