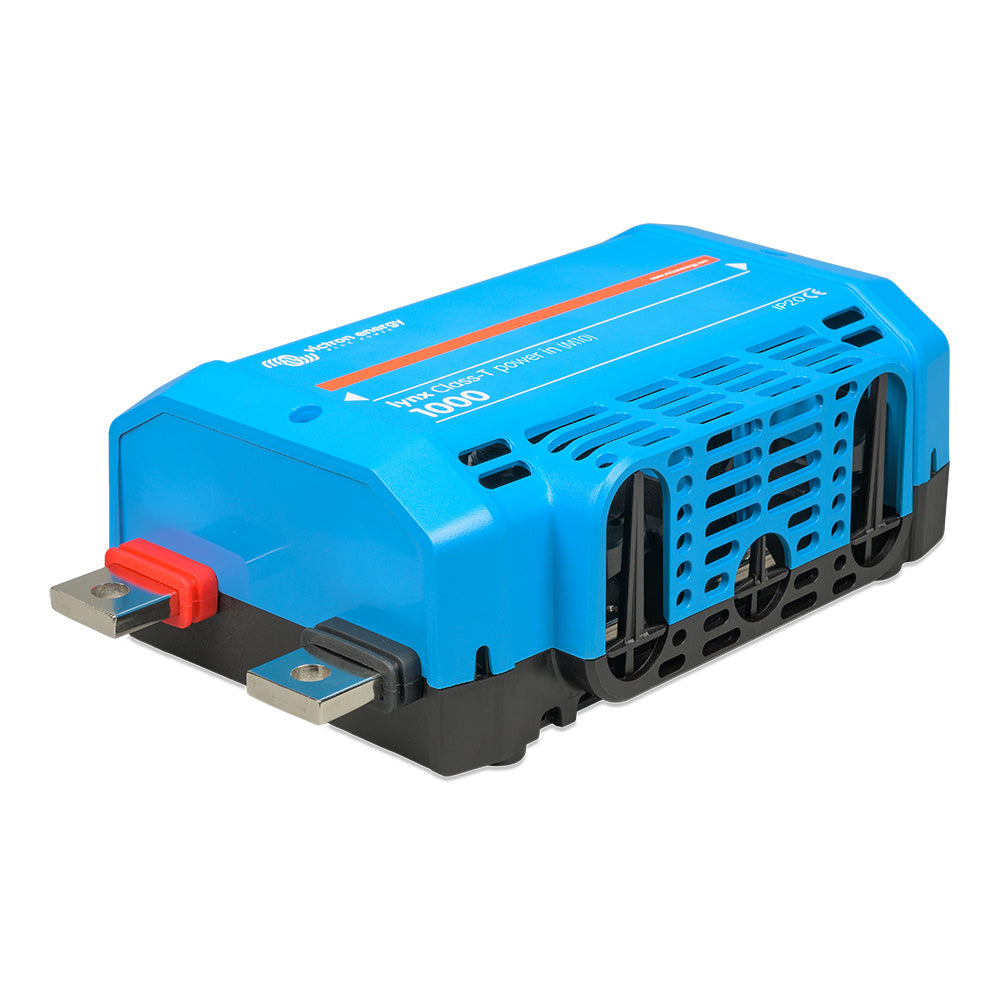

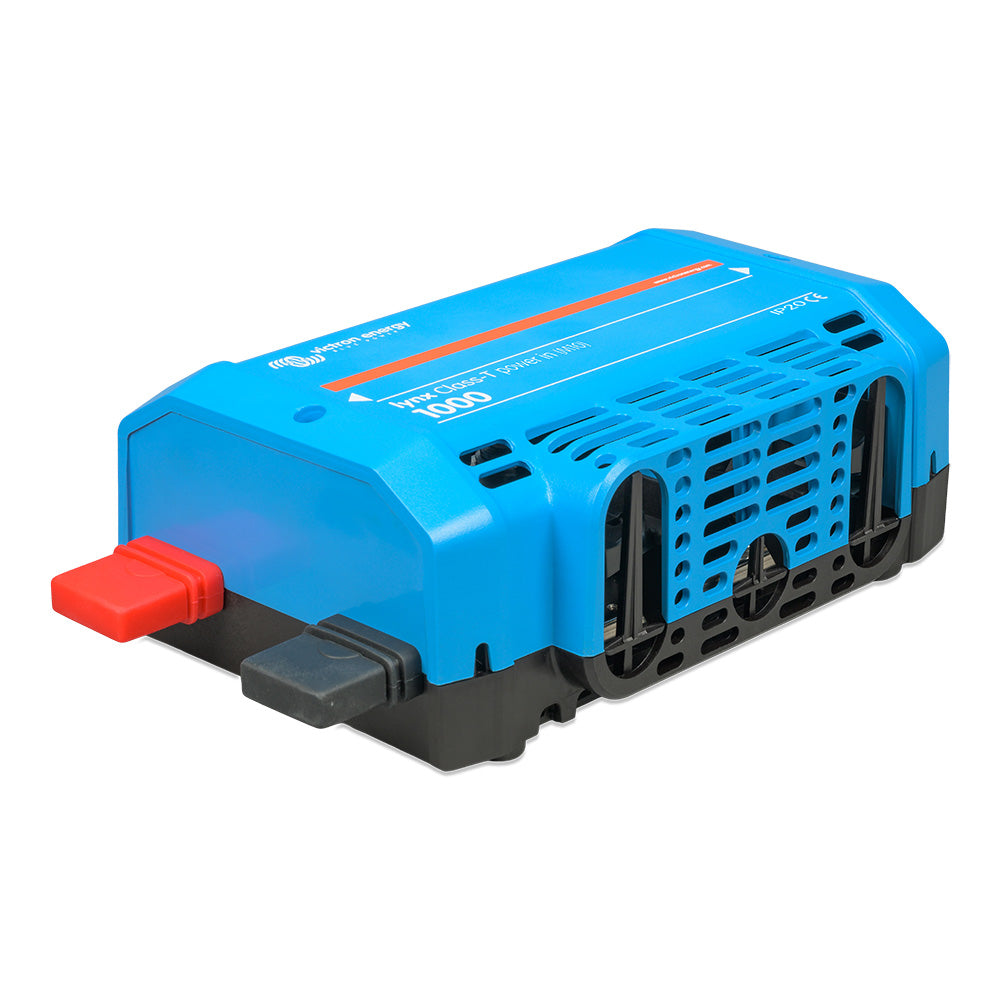

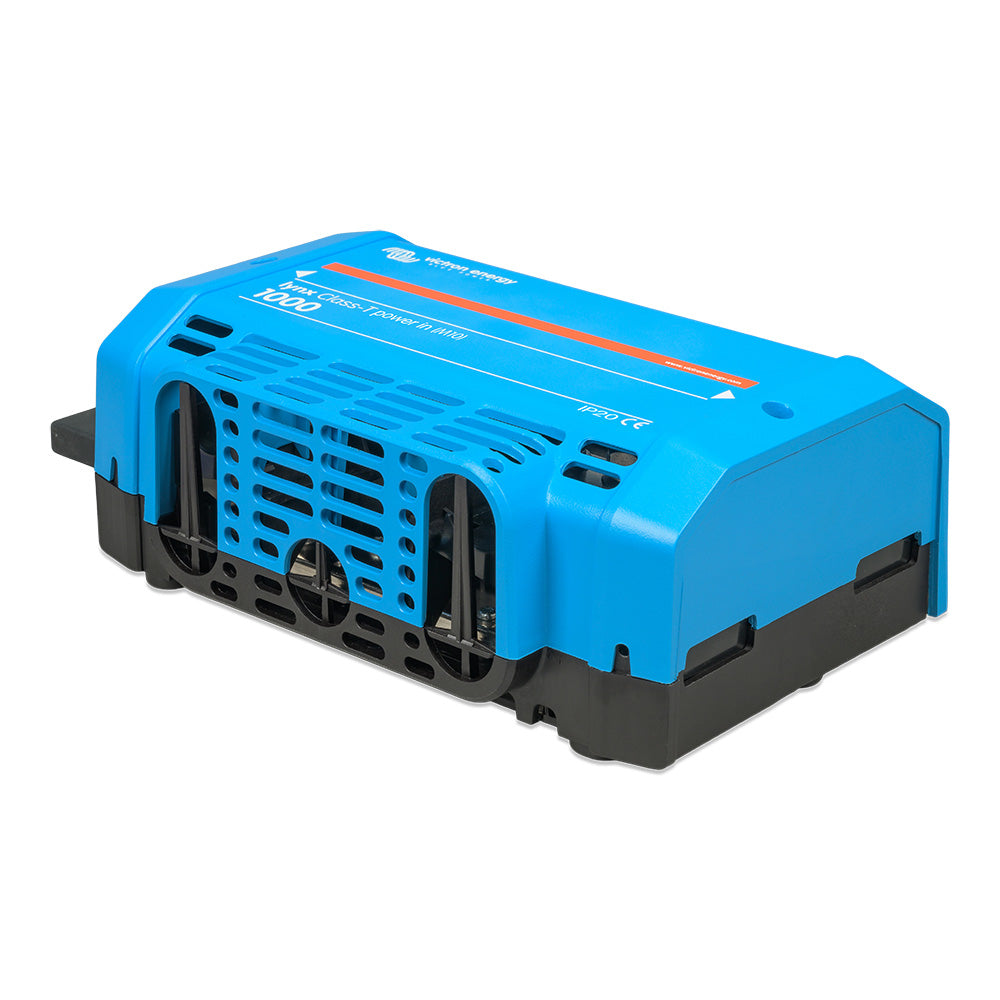

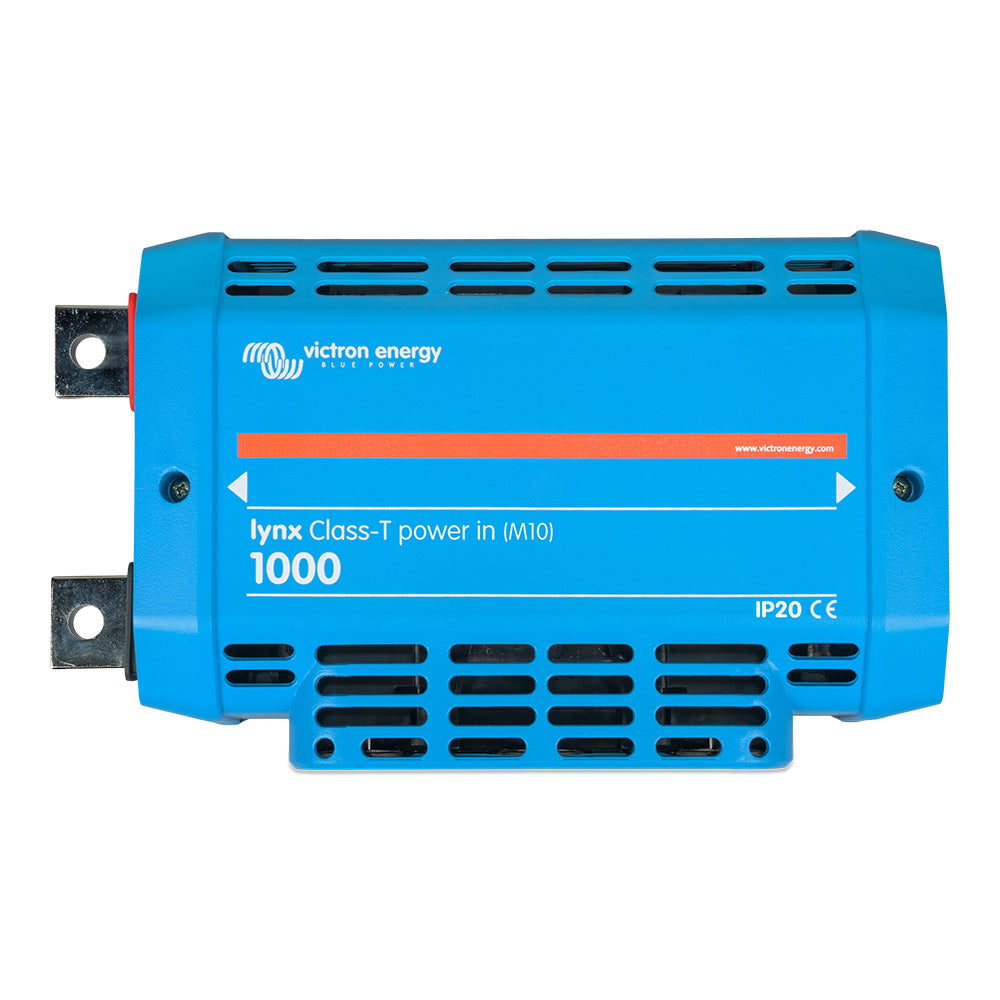

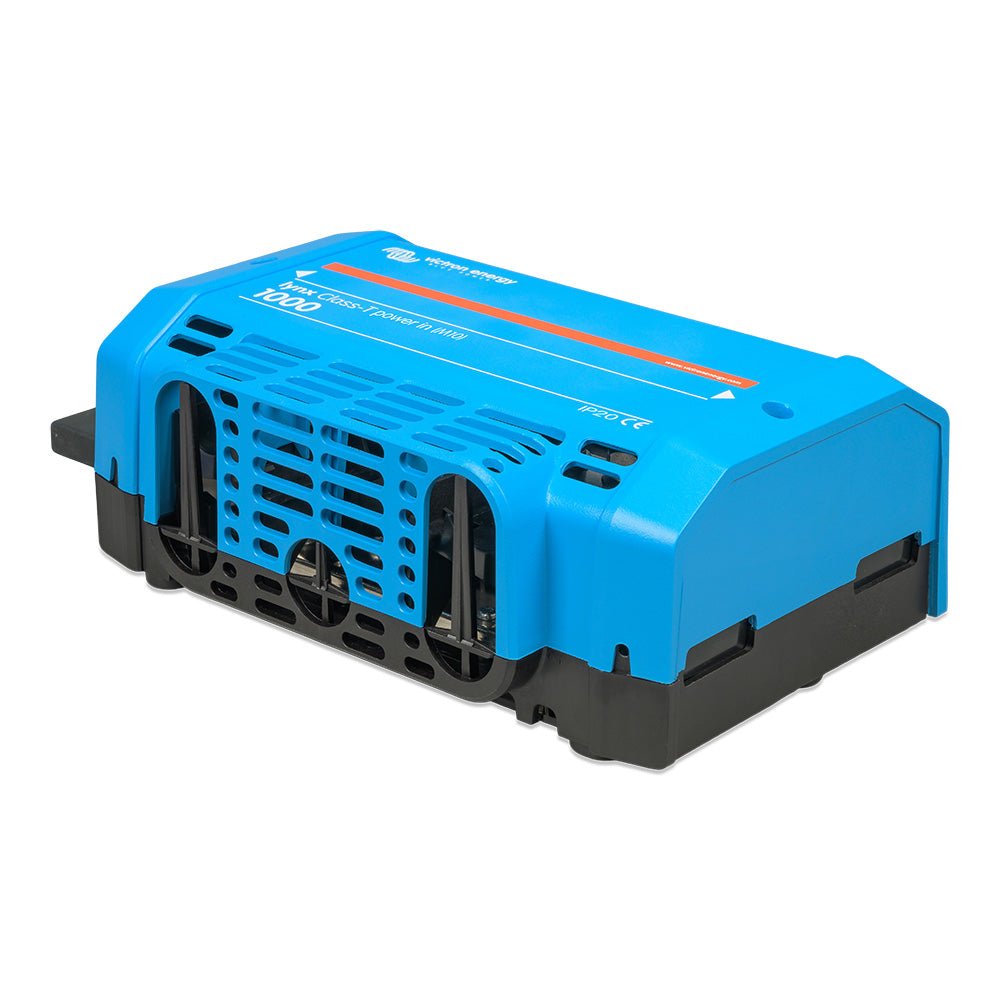

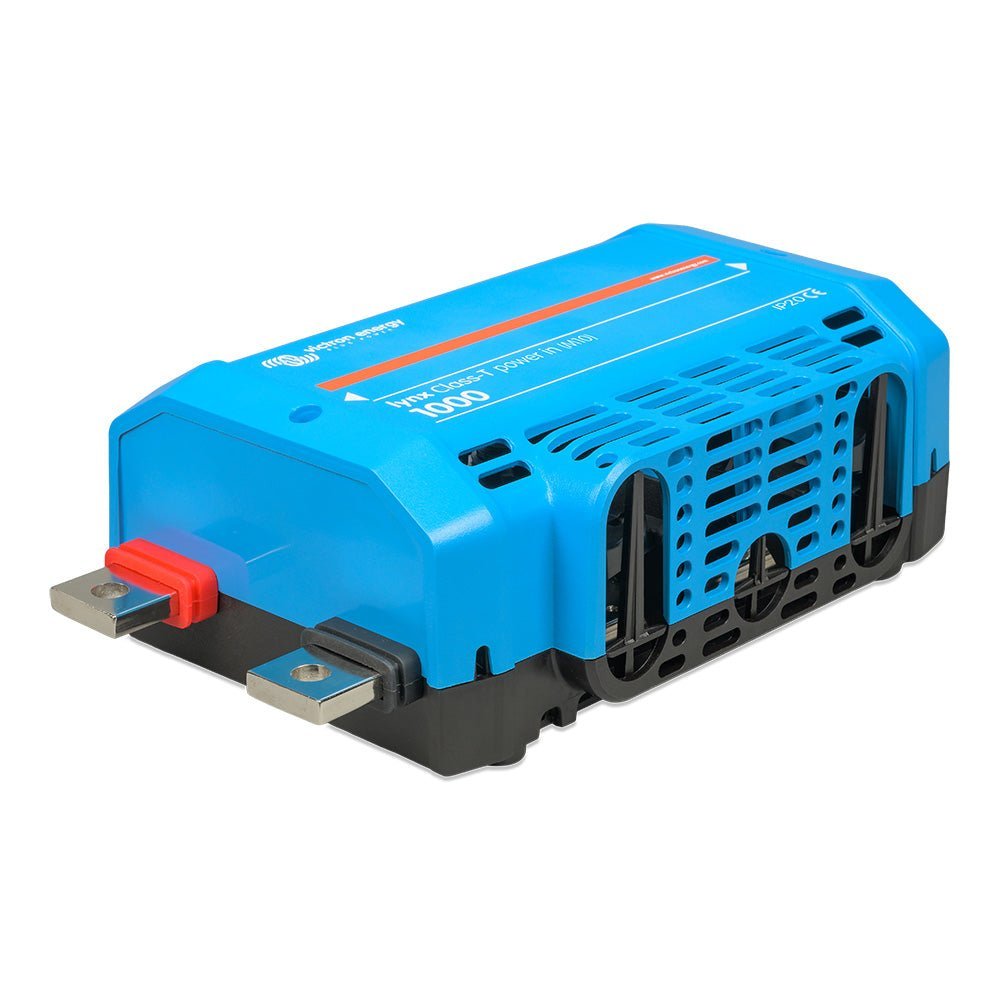

Victron Lynx Power-In Class-T M10 Terminals are the gateway for safe, scalable lithium battery connections within the Victron Lynx Distribution System. This Power-In unit connects and fuses up to two strings of lithium batteries, providing a dedicated positive and negative busbar, connections for two Class-T fuses, and a ground terminal to keep your DC system grounded and organized.
Class-T fuses are available in 225A, 250A, 350A, and 400A (sold separately) to match your protection needs. For installations with three or more strings, simply add additional Lynx Class-T modules to scale your setup. As a core component of the Lynx Distribution System, the Lynx Power-In integrates seamlessly with all other M10 Lynx products, delivering a modular, busbar-based solution for DC connections, distribution, fusing, and monitoring.
Key features
- Connects and fuses up to two lithium battery strings with a positive and negative busbar
- Space for two Class-T fuses (fuses sold separately) and a dedicated ground connection
- Scalable design: add Lynx Power-In modules to support more strings
- Part of the Lynx Distribution System — a modular busbar platform for DC connections, distribution, fusing, and monitoring
Lynx Distribution System components
-
Lynx Power In: positive and negative busbar with four batteries or DC equipment connections
-
Lynx Distributor: positive and negative busbar with four fused connections for batteries or DC equipment; fuse monitoring available in two versions
-
Lynx Shunt VE.Can: positive busbar with space for a main system fuse and negative busbar with a shunt for battery monitoring; VE.Can communication for monitoring and setup with a GX device
-
Lynx Smart BMS: for use with Victron Energy Smart Lithium batteries; positive busbar with a BMS-driven contactor and negative busbar with a shunt for monitoring; Bluetooth via VictronConnect App and VE.Can communication for monitoring with a GX device and VRM portal; available as a 1000A model with M10 busbars
Specifications
-
Power range: 9–60 V DC
-
Current rating: 1000 A DC continuous
-
Connections: M10 busbar (3/8”)
-
Enclosure material: ABS
-
Dimensions (H x W x D): 279 x 169 x 97 mm
-
Weight: 2.1 kg
-
Busbar material: Tin-plated copper
-
Operating temperature: -40°C to +60°C
-
Storage temperature: -40°C to +60°C
-
Humidity: Max. 95% non-condensing
Protection class: IP20
Manufacturer: Victron Energy

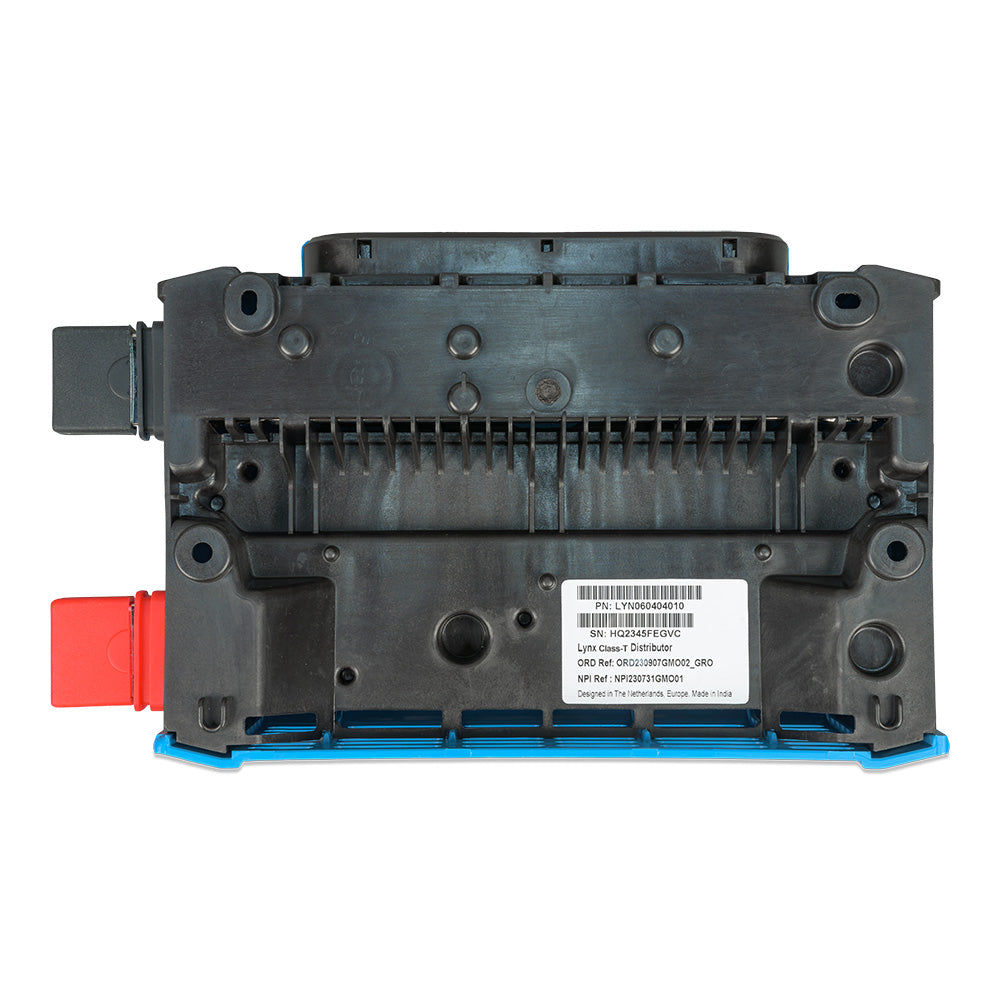

Manufacturer Part Number: LYN060404010
UPC: 8719076062967
