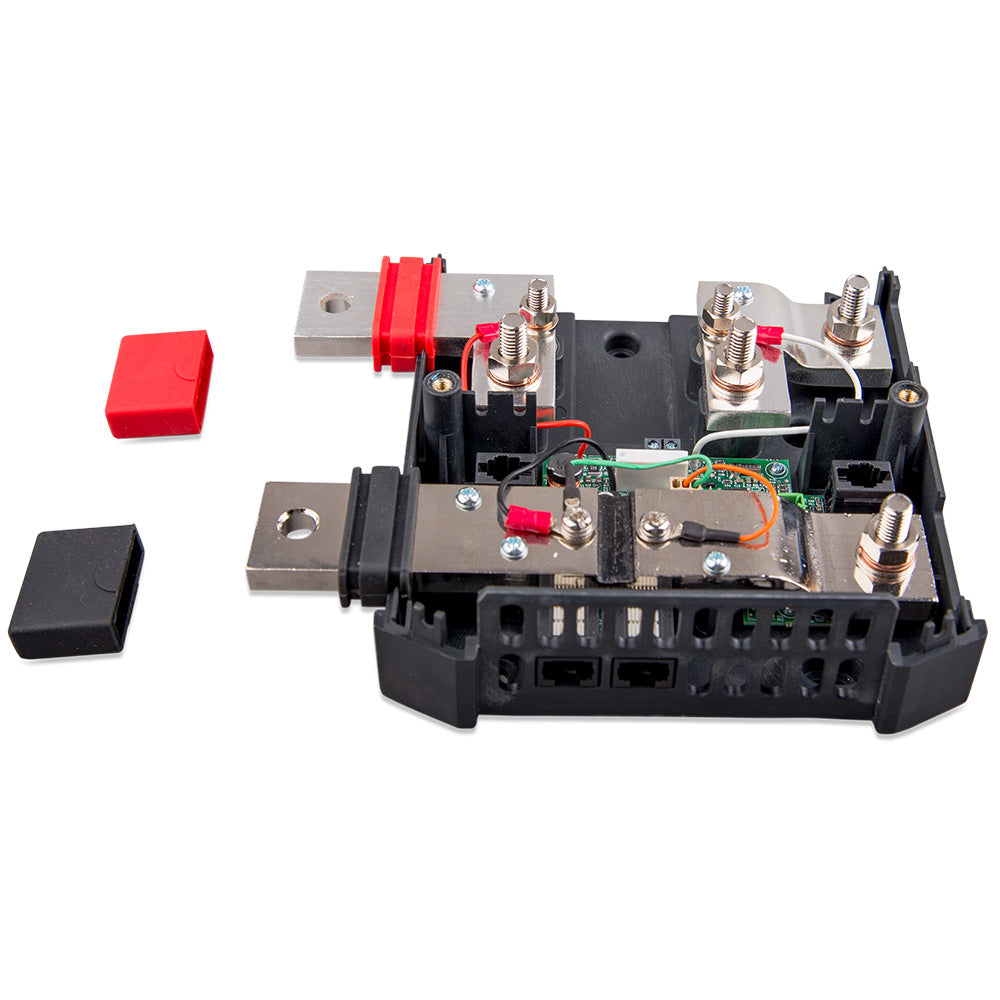

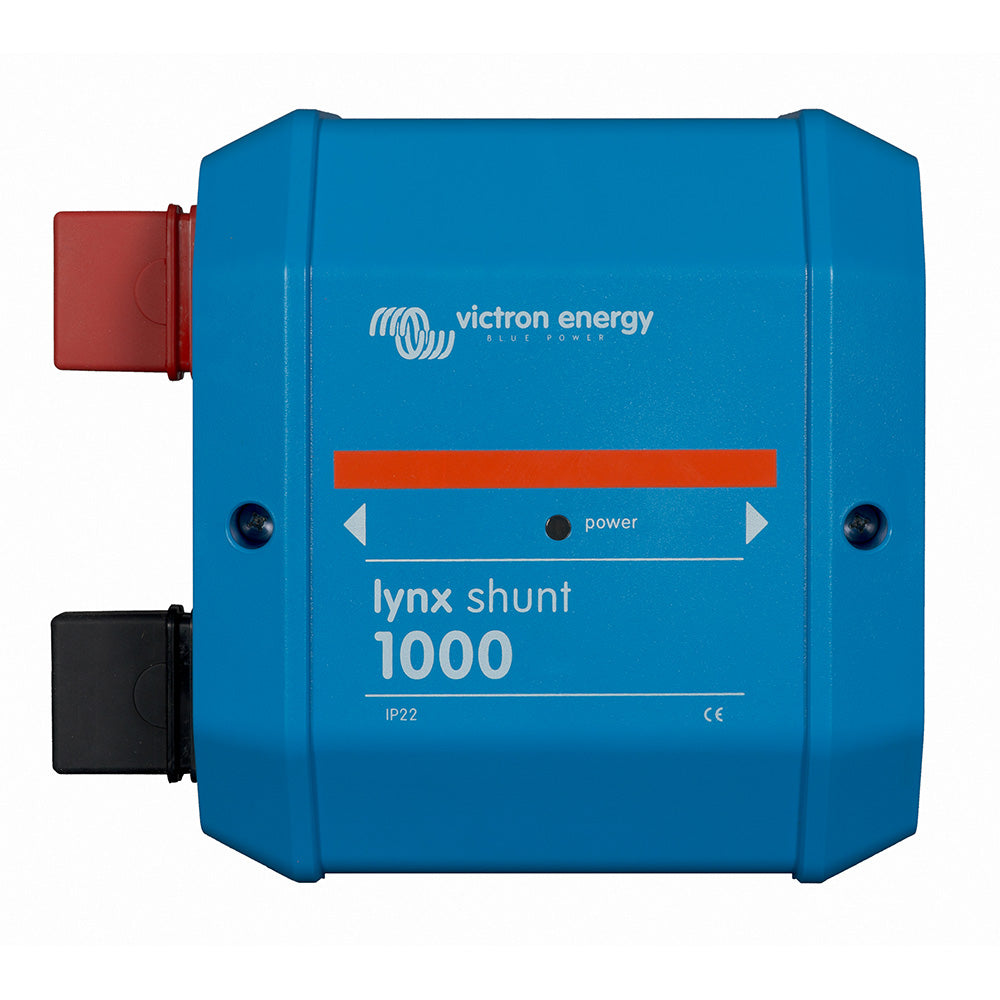

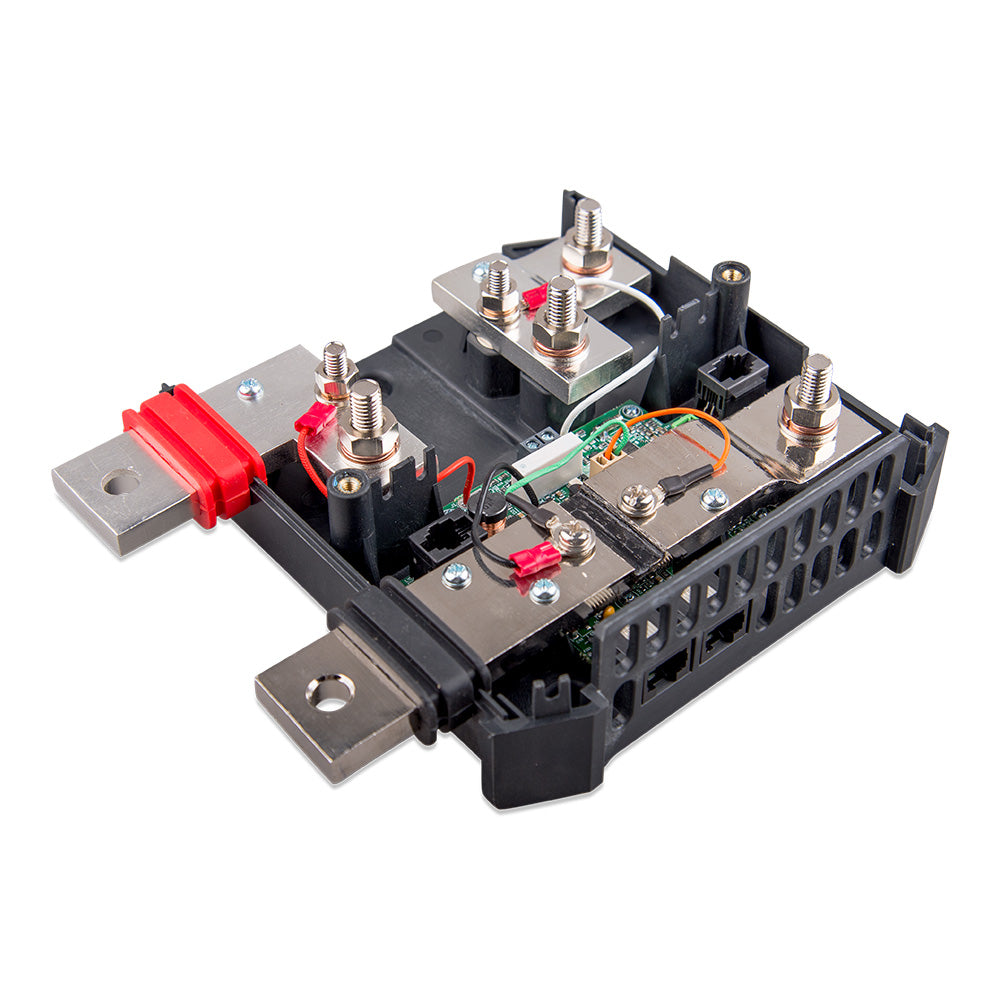

Victron Lynx Shunt VE.Can (M10) is a compact, busbar-based battery monitor that forms an essential part of the Lynx Distribution System. It combines a positive and negative busbar, a precision battery shunt for monitoring, and a dedicated space for the main system fuse (CNN fuse sold separately), delivering streamlined power management in one modular unit. Designed to communicate via VE.Can with a GX device, it enables real-time monitoring, configuration, and integration within your Victron ecosystem.
Key benefits
- Integrated Lynx Shunt with a positive busbar and a negative busbar for reliable battery monitoring.
- VE.Can communication for monitoring and setup with a GX device.
- Space for a main system fuse (CNN fuse) with fuse monitoring; fuse not included.
- Ships with two RJ45 VE.Can terminators for easy GX connectivity.
- Part of the Lynx Distribution System, a modular solution for DC connections, distribution, fusing, and battery management.
- Robust construction with wide operating range and environmental tolerance ideal for marine, automotive, and off-grid applications.
The Lynx Shunt VE.Can is designed to work seamlessly with other Lynx Distribution components such as Lynx Power In, Lynx Distributor, and the Lynx Smart BMS, offering scalable battery management for 12V, 24V, or 48V systems. It supports a broad voltage range (9–70 VDC) and is built to handle demanding installations while maintaining accurate, real-time battery data through VE.Can communication with a GX device.
Specifications
- Current rating: 1000 A continuous
- Power supply range: 9–70 VDC
- Supported system voltages: 12, 24 or 48 V
- Power consumption: 60 mA @ 12 V; 33 mA @ 24 V; 20 mA @ 48 V
- Connections: Busbar M8; Fuse M8; VE.Can RJ45 and RJ45 terminators
- VE.Can: Communication with GX device
- Physical: ABS enclosure; dimensions 190 x 180 x 80 mm; weight 1.4 kg
- Busbar material: Tin copper; busbar dimensions 8 x 30 mm
- Environmental: Operating -40°C to +60°C; Storage -40°C to +60°C; Humidity up to 95% non-condensing; IP22 protection
Note: For returns, repairs, or support related to this product, please contact your local dealer. When integrating into a broader Lynx system, remember the main fuse is purchased separately.
