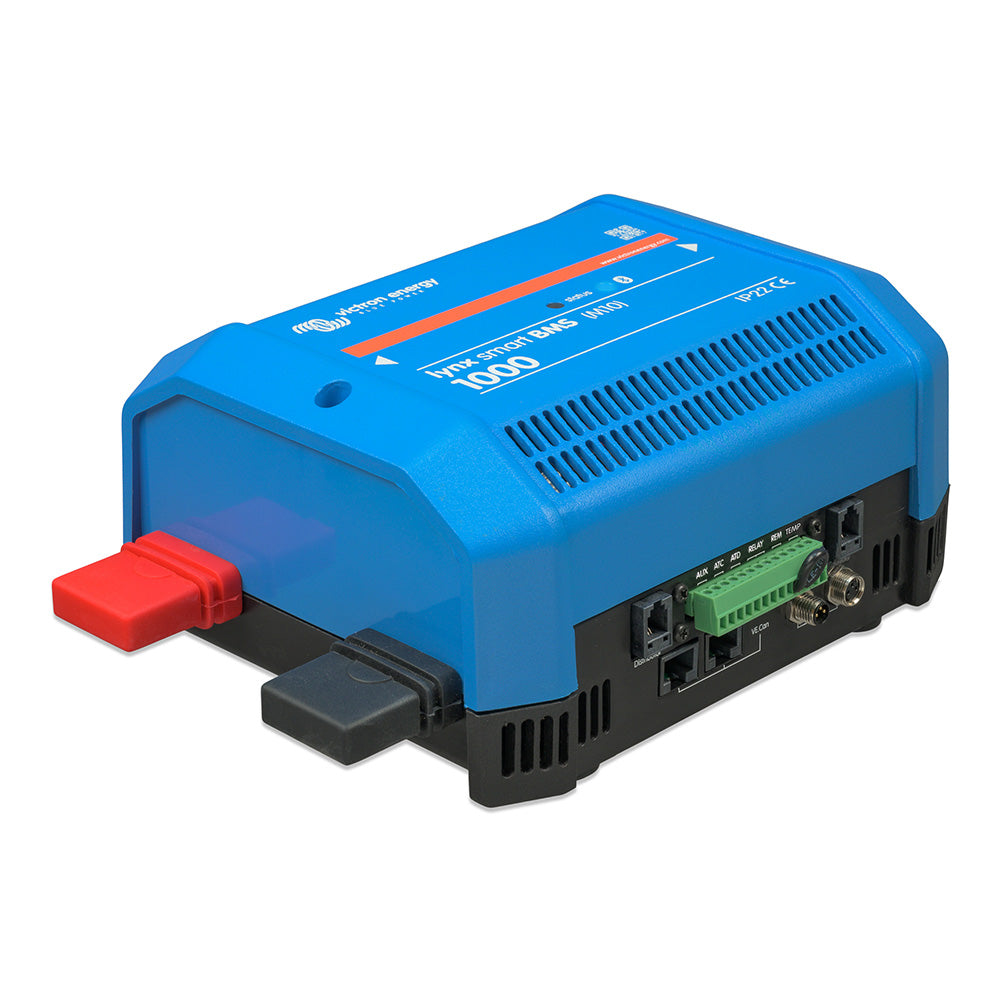

The Victron Lynx Smart BMS 1000 Battery Management System is the dedicated guardian for LiFePO4 Lithium Smart Batteries, engineered to power lithium storage systems with peak performance. Designed for home, marine, and mobile energy setups, it protects, coordinates, and simplifies system control across the Victron ecosystem.
-
Cell Configuration and System Voltage: Supports 12.8 V or 25.6 V cells configured for 12 V, 24 V, or 48 V systems, up to 20 cells (delivering up to 84 kWh at 12 V and up to 102 kWh in 24 V/48 V configurations).
-
Built-in 1000 A Contactor: Acts as a secondary safety layer to protect the battery if primary controls fail, and functions as a remote controllable main system switch.
-
Pre-charge Circuit: Prevents high inrush currents when connecting capacitive loads (like inverters), removing the need for external pre-charging and safeguarding equipment.
-
DVCC Closed-Loop Control & ATC/ATD Contacts: Seamlessly coordinates with Victron inverters/chargers and solar chargers via a connected GX device, with flexible control for additional chargers and loads through remote on/off ports.
-
Programmable Relay: Use as an alarm relay or to control an alternator via its external regulator, with safe sequencing to ensure the alternator shuts off before battery disconnection.
-
AUX Terminal: Provides a dedicated 1.1 A auxiliary power supply to keep essential devices (like GX units) running after a low-voltage event, and auto-shuts off if charge voltage isn’t detected within 5 minutes.
-
VE.Can & NMEA 2000 Data Communication: Standard VE.Can communication ensures easy integration with GX devices and networked systems for reliable data sharing.
-
Real-time Monitoring & Remote Control: Monitor and control your BMS via Bluetooth with the VictronConnect app or through a GX device and the VRM Portal; the built‑in battery monitor delivers live data—state of charge, voltage, current, and historical trends—providing instant visibility and diagnostics at a glance, even when not connected to the BMS.
-
Seamless Victron Ecosystem Integration: Integrates with the Lynx Distributor system and works in harmony with compatible Victron inverters, chargers, and solar solutions for easy DVCC control, reliable protection, and scalable energy storage.
-
Flexible Battery Configurations: Supports 12.8 V or 25.6 V cells arranged in series/parallel combinations for 12 V, 24 V, or 48 V systems, up to 20 cells.
By combining proactive protection with real-time visibility and seamless ecosystem integration, the Lynx Smart BMS 1000 simplifies safe operation of LiFePO4 storage. Its built-in 1000 A contactor and pre-charge circuit reduce risk during startup, while the AUX and programmable relay keep essential devices powered and systems coordinated. With Bluetooth and VRM access, you can monitor state of charge, voltage, current, and trends anywhere, and scale your setup as needs grow—from a compact home system to larger marine or mobile installations.
