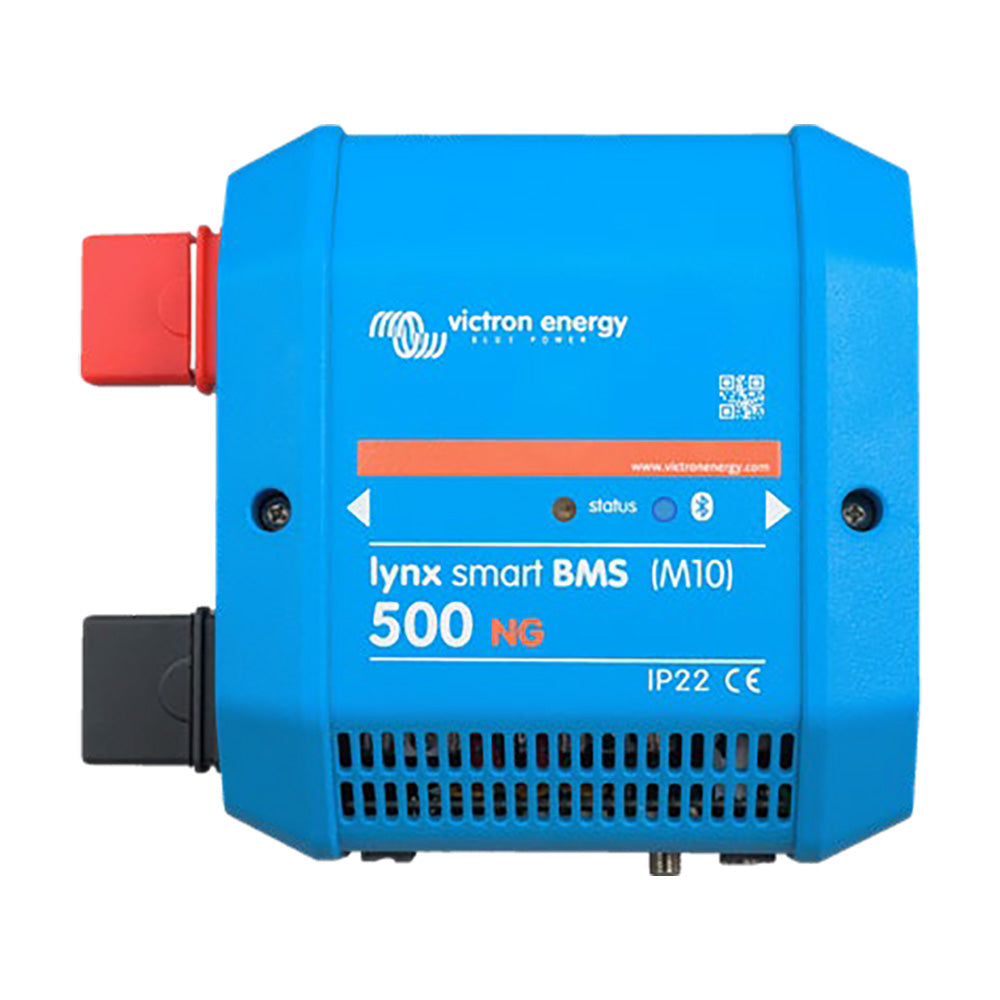

The Lynx Smart BMS NG (M10) is the ultimate Battery Management System engineered specifically for Victron Lithium NG LiFePO4 batteries. Designed to complement the Lynx Distributor ecosystem, it delivers unbeatable safety, monitoring, and control for sophisticated 12V, 24V, and 48V battery banks built from LiFePO4 cells.
Powerful, Safe, and Easy to Manage
-
Built-in contactor options — available in 500 A (M10) and 1000 A (M10) variants to suit your system size.
-
Secondary safety — protects the battery even if primary controls (ATC, ATD, and/or DVCC) fail.
-
Remote main switch — serves as a reliable, remotely controllable main disconnect.
-
Pre-Charge circuit — prevents high inrush currents when connecting capacitive loads such as inverters.
-
Automatic power management — the DVCC closed-loop control and ATC/ATD contacts ensure safe, autonomous operation with compatible chargers and loads.
-
Auxiliary power — onboard AUX terminal provides 1.1 A to power specific loads (e.g., GX devices) after BMS shutdown.
-
Fuse monitoring — keeps an eye on fuse status within the Lynx Distributor for proactive maintenance.
Smart Monitoring and Seamless Connectivity
Stay in control from anywhere with Bluetooth and VE.Can connectivity. The Lynx Smart BMS NG integrates seamlessly with VictronConnect, GX devices (Cerbo GX, Ekrano GX), and the VRM portal, delivering real-time visibility and remote management:
-
Bluetooth monitoring and control via the VictronConnect App.
-
VE.Can communication for easy data exchange with GX devices and seamless integration into larger marine or RV networks.
-
NMEA 2000 ready data integration (requires VE.Can to NMEA 2000 cable) for marine environments.
-
Readouts on GX and VRM showing cell voltages, temperatures, state of charge, current, voltage, and historical data in real time.
Comprehensive System Compatibility
The Lynx Smart BMS NG is designed to work with a wide range of Victron components and configurations:
- Compatible with Victron Inverter/Chargers, Orion XS 12/12-50A DC-DC chargers, and solar charge controllers, with automatic control via a connected GX device and DVCC.
- ATC/ATD contacts can control other chargers and loads with remote on/off capability.
- Programmable relay for alarm signaling or to control an alternator through its external regulator (ignition cable).
- Alternator ATC mode enables safe disconnect of the alternator before the battery disconnects.
- 40-and-50-battery configurations are supported, enabling flexible system voltages and configurations up to 192 kWh (12V) or up to 384 kWh (24V/48V) in larger banks.
Why This BMS Stands Out
The Lynx Smart BMS NG is the most feature-rich and complete BMS option for Victron Lithium NG batteries. It combines robust protection, deep monitoring, and intelligent control with flawless integration into the Victron ecosystem. Whether you’re outfitting a marine installation, an RV, or a off-grid energy system, this BMS delivers reliability, safety, and performance at every step.
