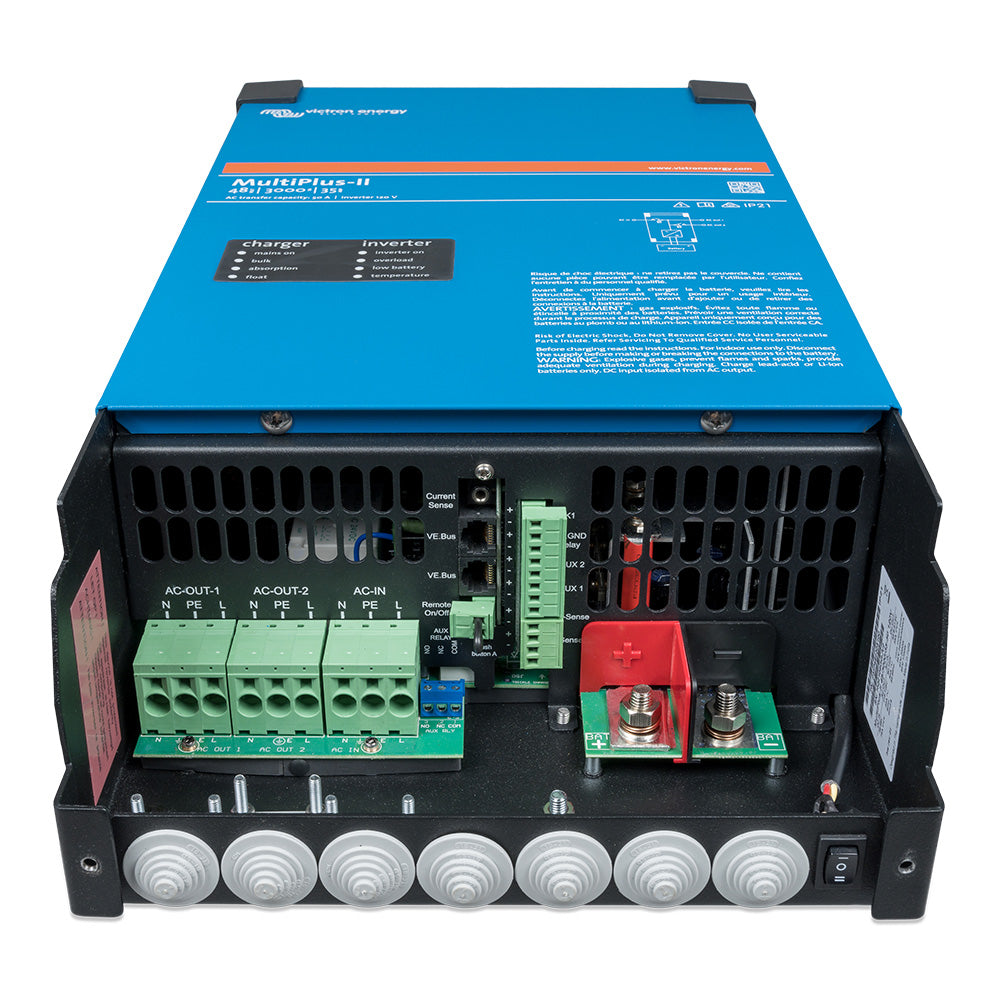

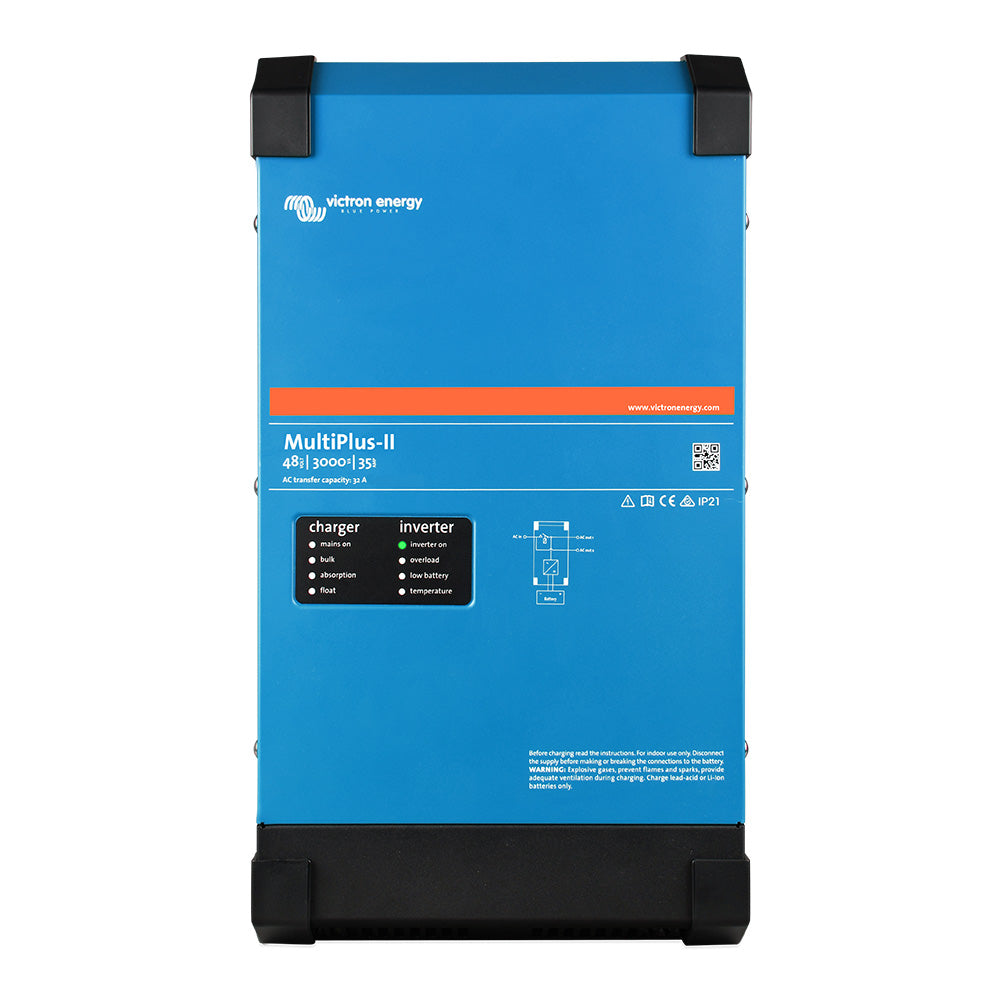

The Victron MultiPlus-II 48/3000 - 35-50 - 120V - UL Approved is an all-in-one inverter/charger that unifies Victron's MultiPlus and MultiGrid technologies in a compact package for backup power, off-grid living, marine, and RV installations.
-
All-in-one inverter/charger: Combines power conversion, charging, and grid-tie capabilities in a single compact unit for streamlined power management.
-
UPS with 20 ms transfer: In the event of grid, shore, or generator loss, the inverter automatically takes over in under 20 milliseconds to keep critical loads running.
-
PowerControl & PowerAssist: External current transformer option enables precise external current sensing (max 32 A) to maximize energy self-sufficiency.
-
ESS-ready: Core component of Victron Energy Storage Systems (ESS), capable of pairing with MPPT solar chargers or grid-tie PV inverters for flexible solar and storage integration.
-
Anti-islanding & approvals: Built-in anti-islanding protection with an extensive list of country approvals for safe, compliant grid connection.
-
Remote Monitoring & Control: When paired with a Cerbo GX, monitor and control locally via LAN or remotely from anywhere in the world using the free VRM app and VRM portal.
-
Robust power handling: 50 A transfer switch with a maximum AC input of 50 A; output 120 VAC ±2% at 60 Hz ±0.1%; continuous output of 2400 W at 25°C, 2200 W at 40°C, and 1700 W at 65°C, with a peak of 5500 W and efficiency up to 95%.
-
Low idle & standby: Very low no-load power (11 W standard; 7 W AES mode; 2 W in search mode) for efficient energy use when idle.
-
Battery charging: AC input 90–140 VAC / 45–65 Hz; absorption 57.6 V, float 55.2 V, storage 52.8 V; maximum battery charging current of 35 A; includes a Battery Temperature Sensor for safe charging.
-
Connectivity & expansion: VE.Bus communication for parallel, split-phase, and three-phase operation; auxiliary output up to 32 A; external AC current sensor option up to 100 A; programmable relay; remote on/off capability.
-
Rugged & versatile: Wide operating temperature range (-40 to +65°C) with fan-assisted cooling, suitable for demanding environments and installations around the world.
-
UL Approved: UL-listed solution for safe grid connection and compliance in applicable regions.
The MultiPlus-II 48/3000 delivers flexible energy autonomy by seamlessly integrating solar and grid sources, powering essential loads during outages, and enabling remote management. Its scalable architecture supports future expansions with ESS and additional solar or grid-tie components, making it a reliable backbone for diverse setups—from homes to vessels.
