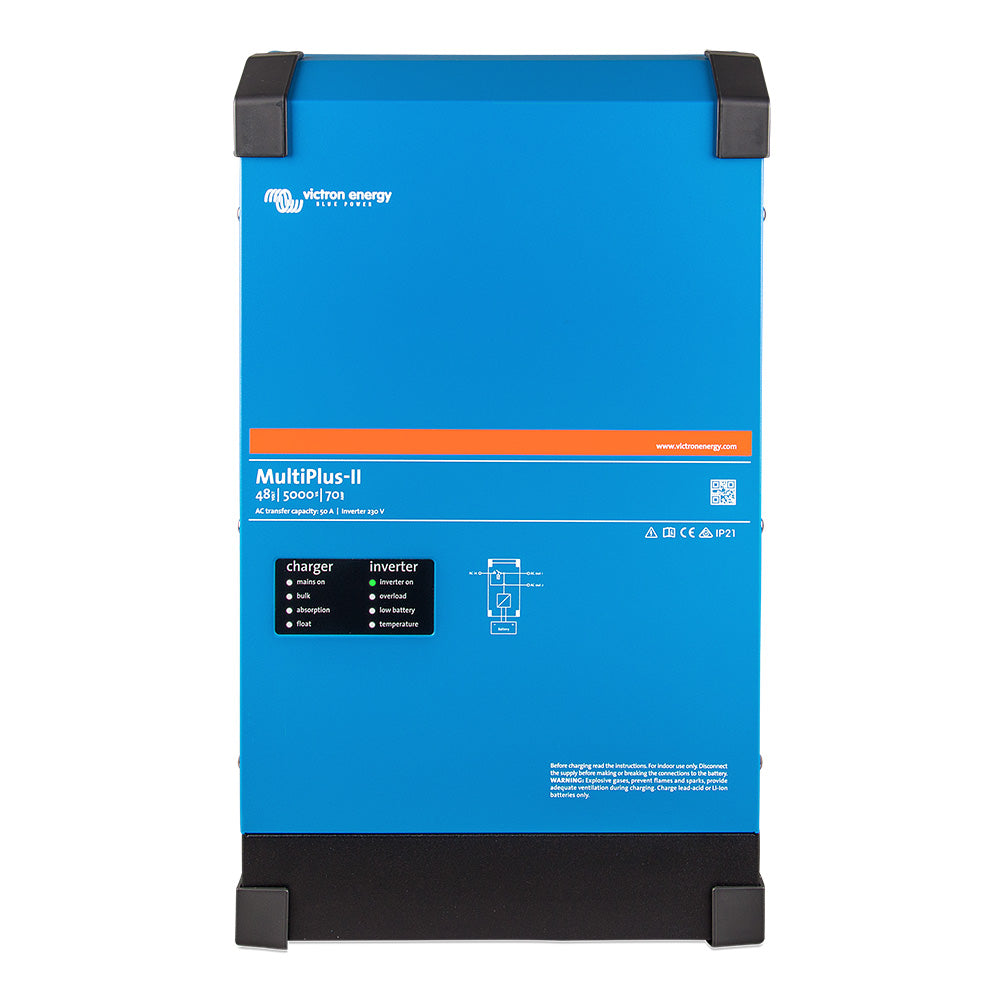

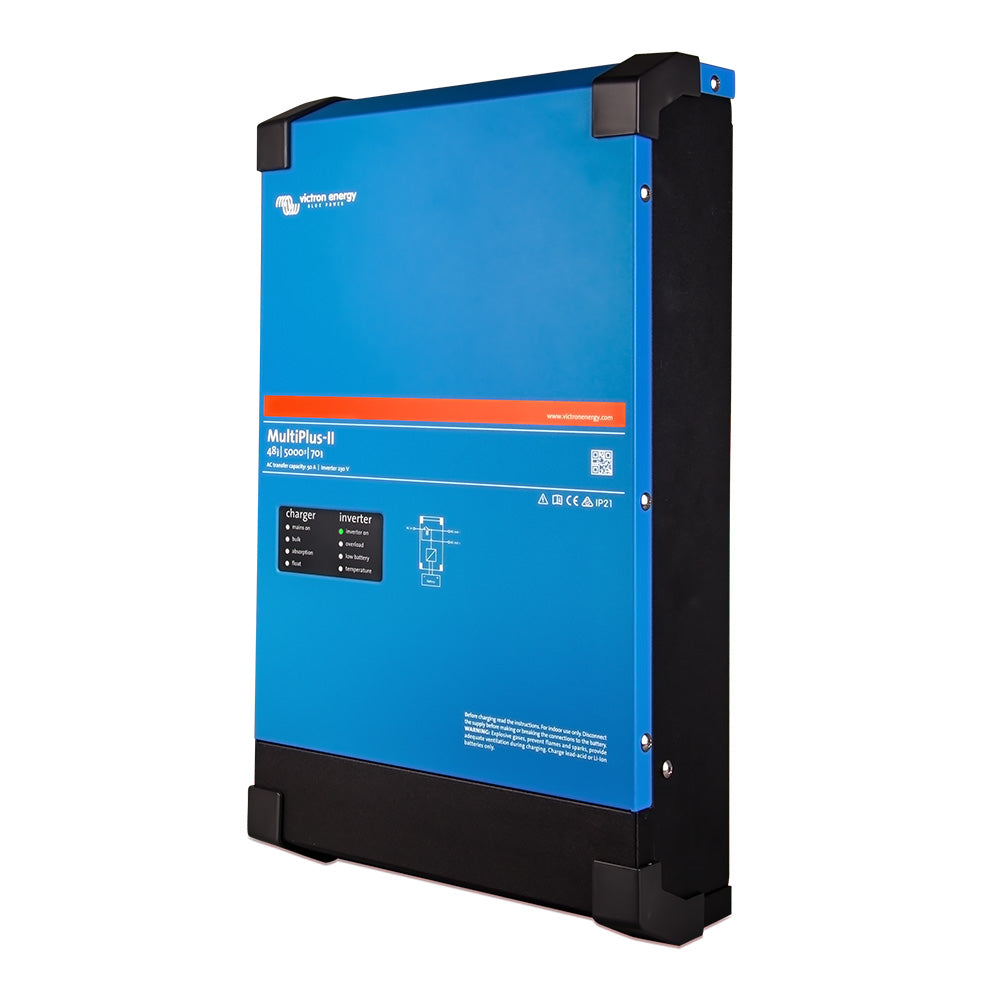

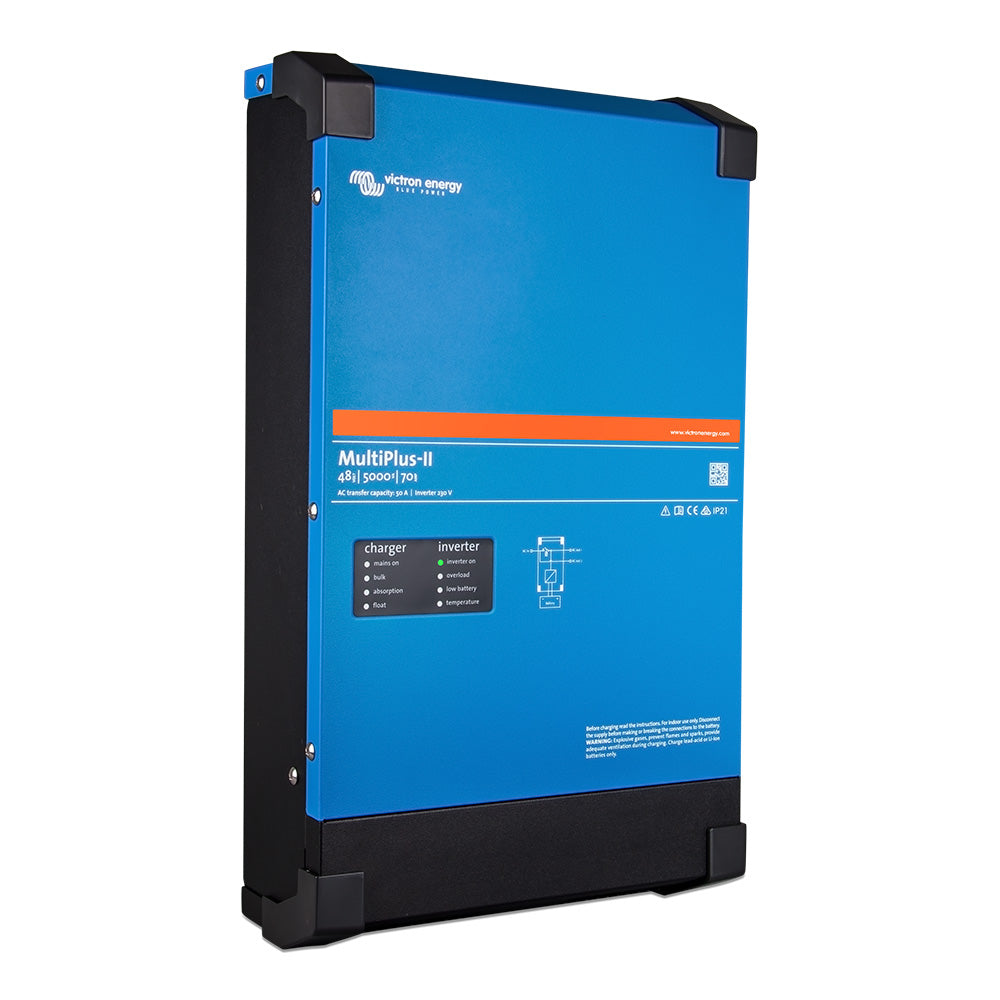

The Victron MultiPlus-II 48/5000 70-95 120V is the ultimate inverter/charger that combines smart power management with rock-solid reliability. Designed for off-grid, grid-connected PV systems, and everything in between, it delivers seamless power control for all your critical loads while keeping your battery bank charged and ready for action.
Smart PowerControl and PowerAssist for unmatched reliability
-
PowerControl and PowerAssist technologies boost the capacity of your grid or generator. With an external current sensor option extending to 100A, the MultiPlus-II carefully manages the available AC input, avoiding overloads while maximizing battery charging when excess power is present.
- When peak or short-term power is required, PowerAssist supplements from the battery to cover the shortfall, then recovers the effort by recharging the battery as soon as the load eases.

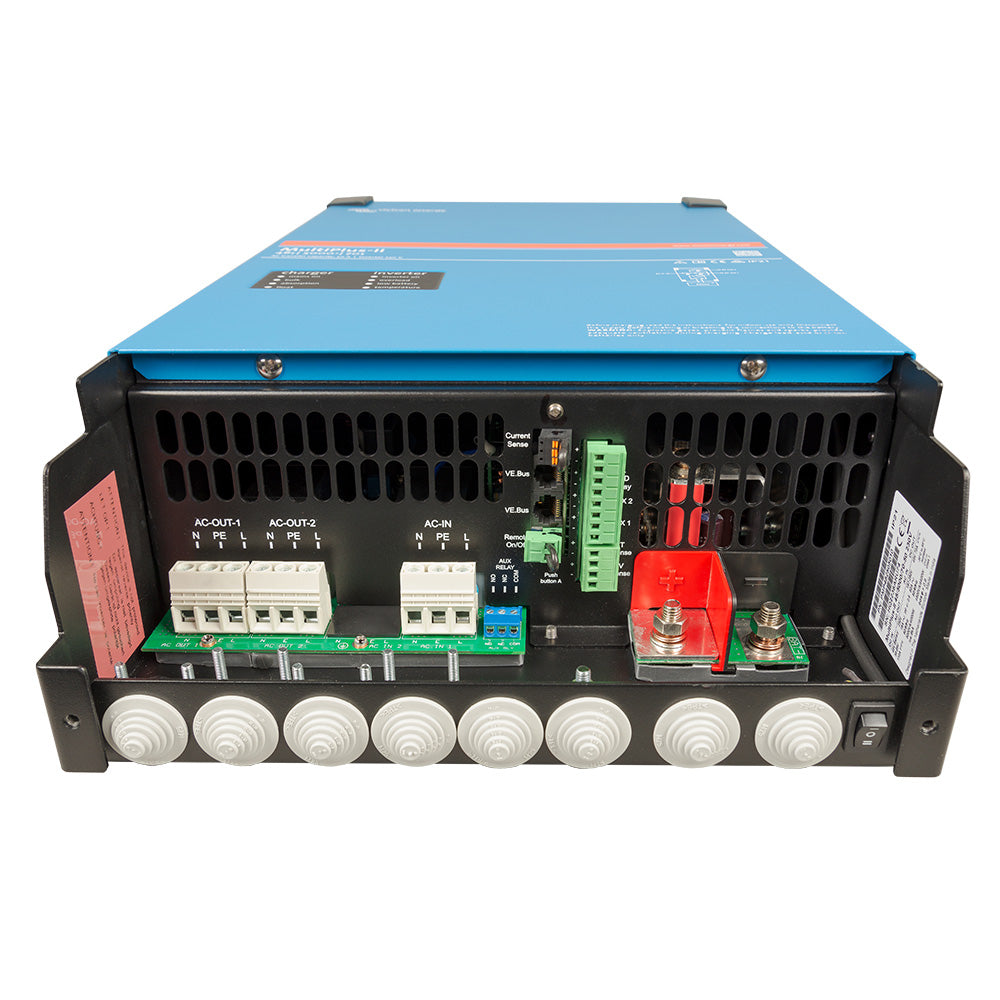

Two AC outputs for precise load management
The main output provides no-break transfer functionality, taking over the live supply in the event of grid failure or disconnection of shore/generator power in under 20 milliseconds. A second output stays live only when AC power is available on the input, allowing you to connect loads that should not discharge the battery (for example, a water heater).
Power scalability: parallel, split-phase, and three-phase
Experience virtually unlimited power by connecting multiple units. Up to six MultiPlus-II units can operate in parallel per phase, enabling higher output. When configured for split-phase or three-phase operation, you can tailor a system for 240V or 3-phase power with seamless coordination across units. Example: six 48/3000/35 units delivering about 15 kW / 18 kVA with substantial charging capacity.
PV compatibility and grid-independent operation
Designed for versatility, the MultiPlus-II works with solar charge controllers and grid-tie inverters, enabling dependable AC power even during grid outages. It supports off-grid setups, grid-connected PV systems, and other alternative energy configurations to keep your installations running smoothly.
Comprehensive control, configuration, and remote monitoring
- On-site configuration with VEConfigure software (MK3-USB interface required) for fast, straightforward setup.
- Monitoring and control options include Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, or Bluetooth (optional VE.Bus Smart dongle).
- Remote access and data logging via VRM (Victron Remote Management) website—monitoring, updates, and configuration changes from anywhere with an internet connection.
Key specifications at a glance
-
PowerControl & PowerAssist: Yes
-
Transfer Switch: 95 A
-
Maximum AC Input Current: 95 A
-
Inverter Type: MultiPlus-II inverter/charger
Whether you’re powering a remote cabin, a mobile setup, or a sophisticated off-grid living solution, the Victron MultiPlus-II 48/5000 70-95 120V delivers the performance, resilience, and intelligent power management you need. Elevate your energy system with a solution that anticipates demand, protects your equipment, and keeps you online no matter what.
