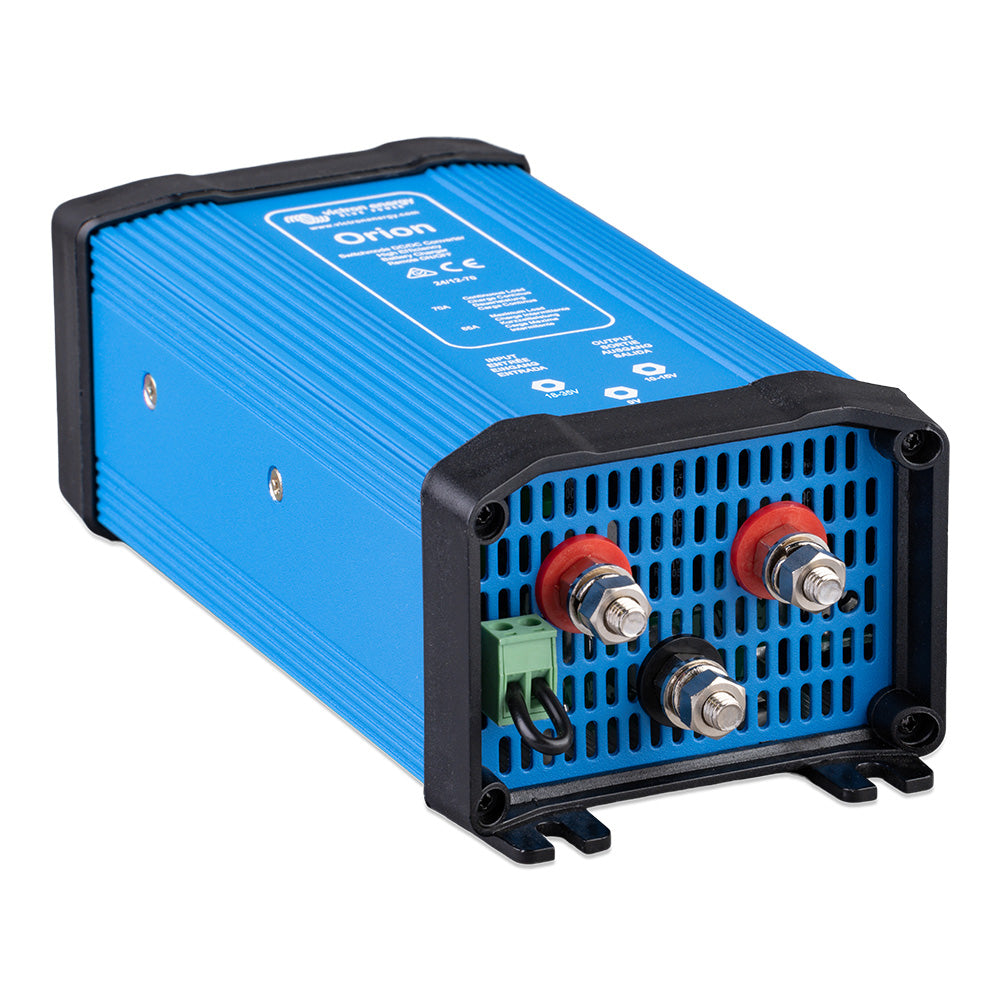

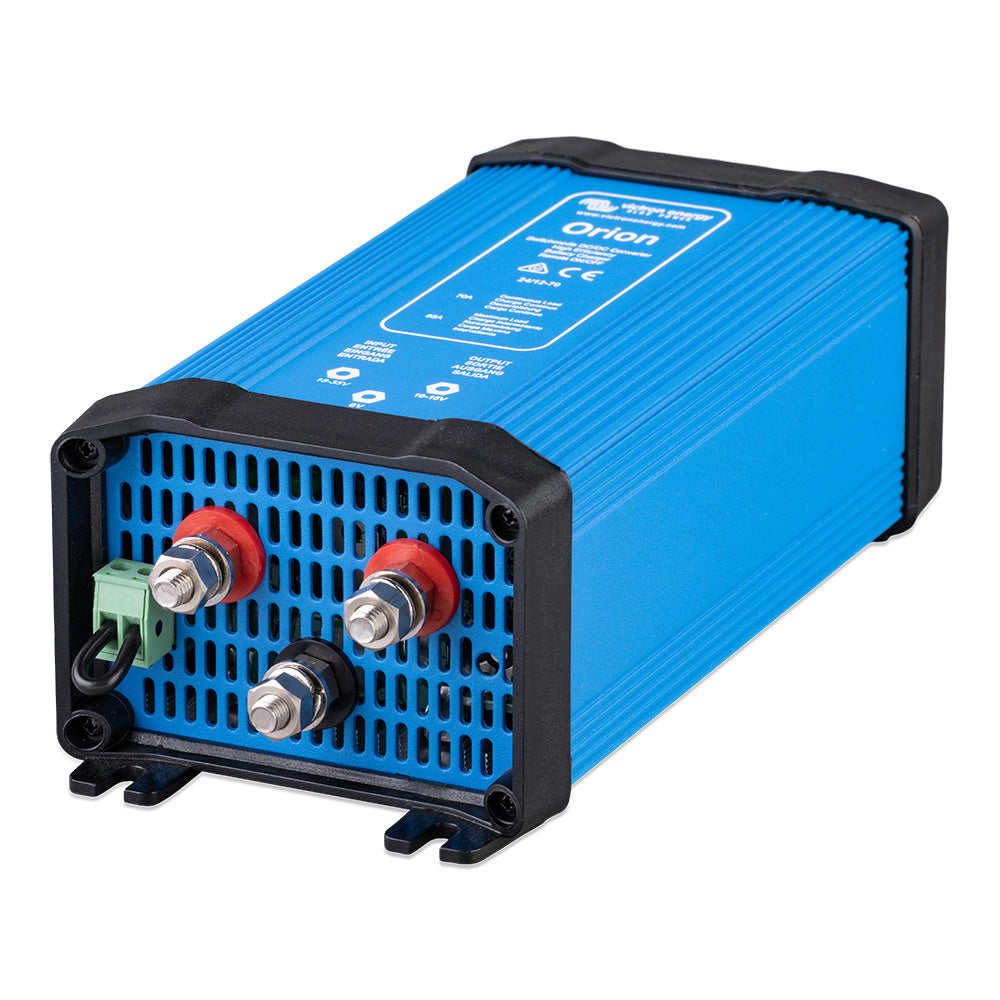

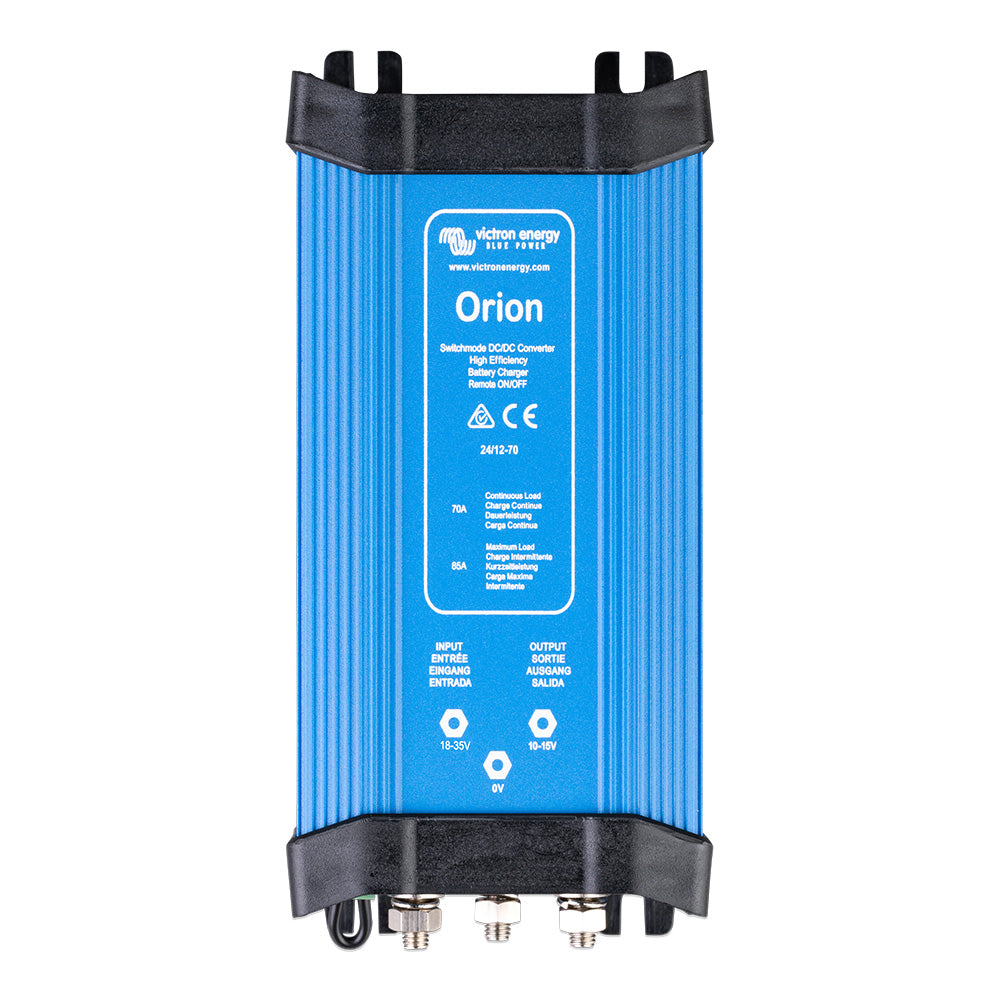

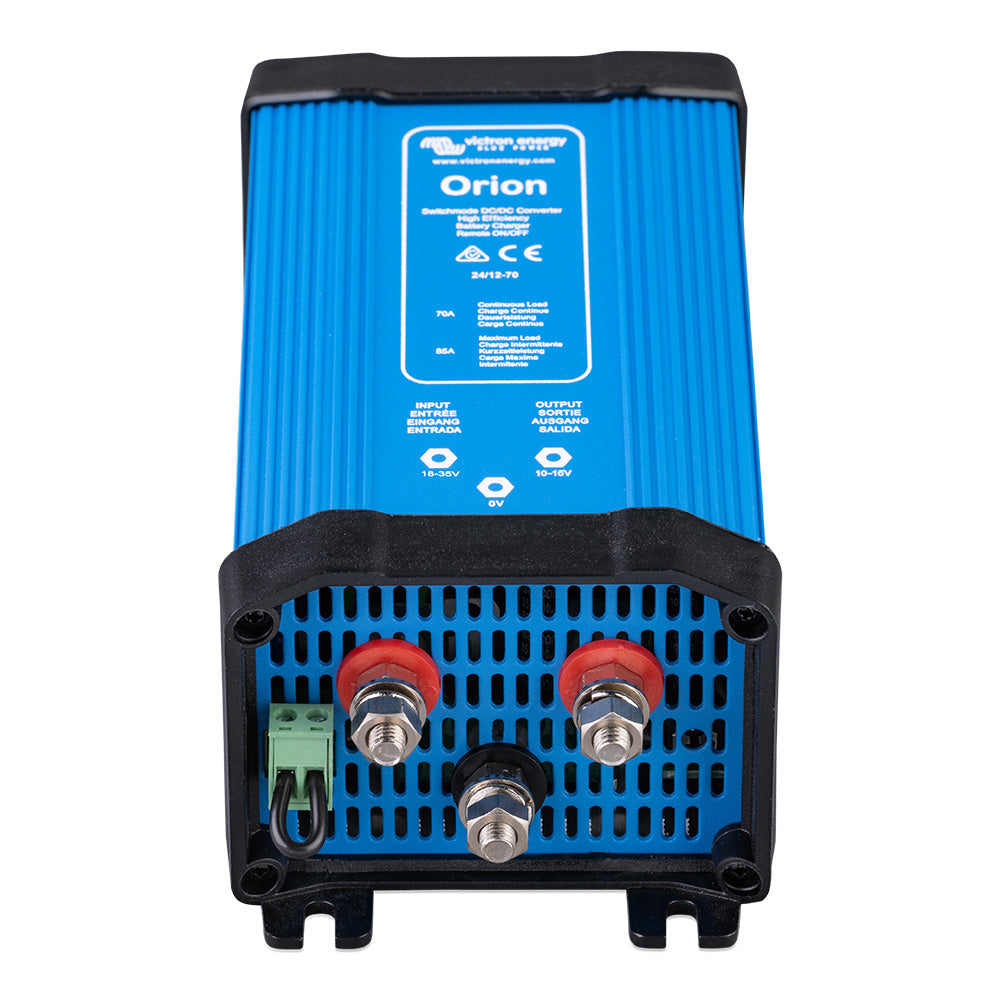

The Victron Orion 24/12-70 DC-DC Converter IP20 is a compact, high-efficiency solution that turns 24V into a stable 12V supply for starting batteries, accessories, and auxiliary systems in marine, RV, and off-grid setups. Built to perform in demanding environments, it combines flexibility, safety, and easy integration in one robust unit.
Key benefits
-
Remote on/off eliminates the need for a high-current input switch. The remote switch can be operated with a low-power control or by the engine run/stop switch (see manual).
-
Adjustable output can be used as a DC-DC converter or as a battery charger to charge a 12V starter or accessory battery within a 24V system.
-
Paralleling up to five units to increase output current — ideal for higher-demand installations.
-
Easy to install with included wiring accessories: Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).
-
IP20-rated enclosure for indoor mounting and safe operation in protected environments.
Specifications at a glance
-
Input Voltage Range: 18–35 V
-
Undervoltage Shutdown: 14 V
-
Undervoltage Restart: 18 V
-
Output Voltage (adjustable): 10–15 V; Factory setting: 13,2 V
-
Efficiency: up to 92%
-
Continuous output current: 70 A
-
Max output current: 85 A
-
Cooling: Fan-assisted, temperature controlled
-
Galvanic isolation: No
-
Off-load current: < 20 mA
-
Remote on/off: Yes
-
Parallel capable: Yes — up to five units
-
Battery charging/buffer: Suitable for buffer-charging a battery
