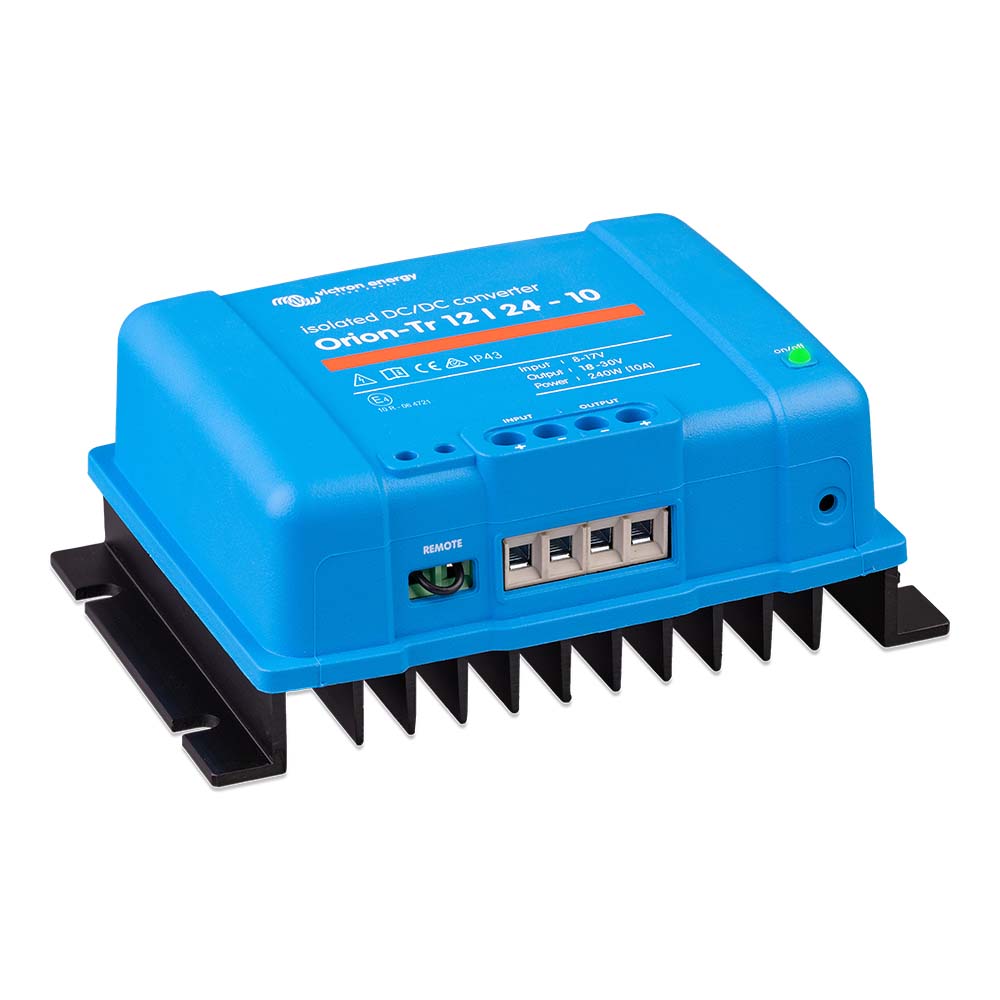

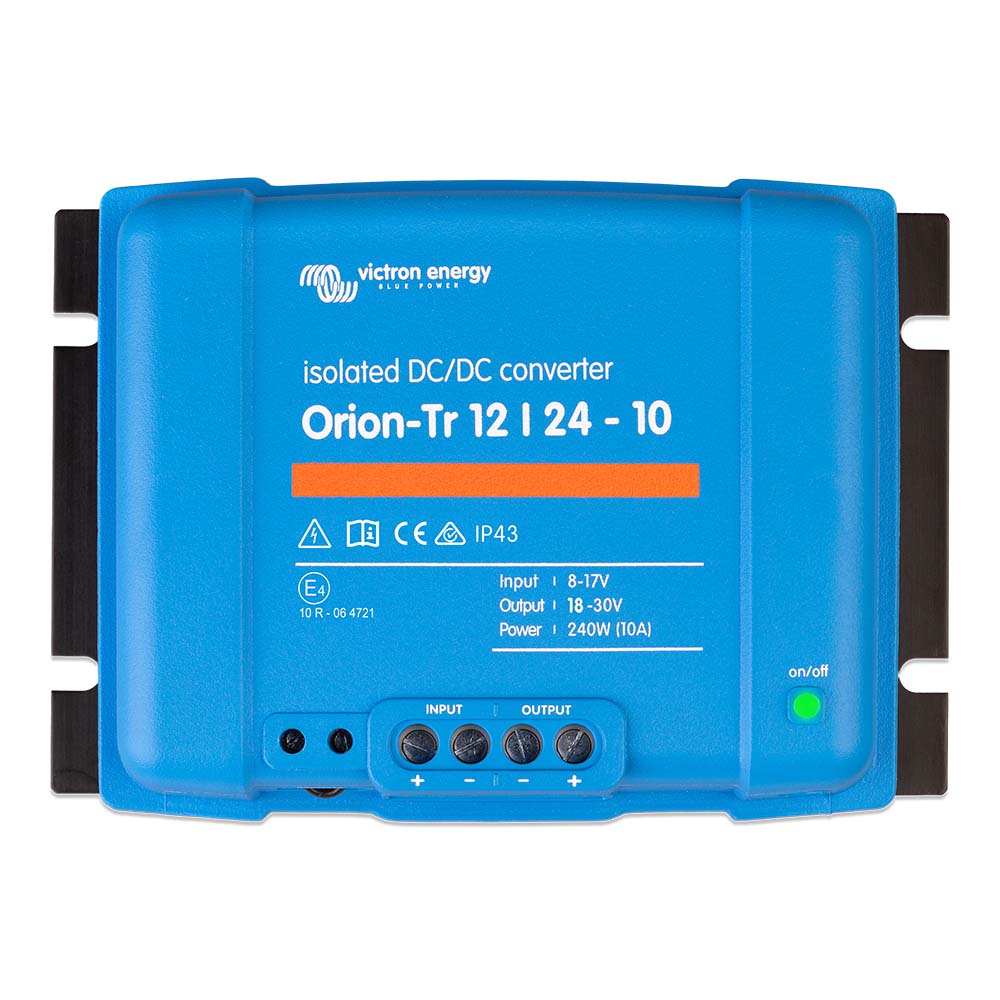

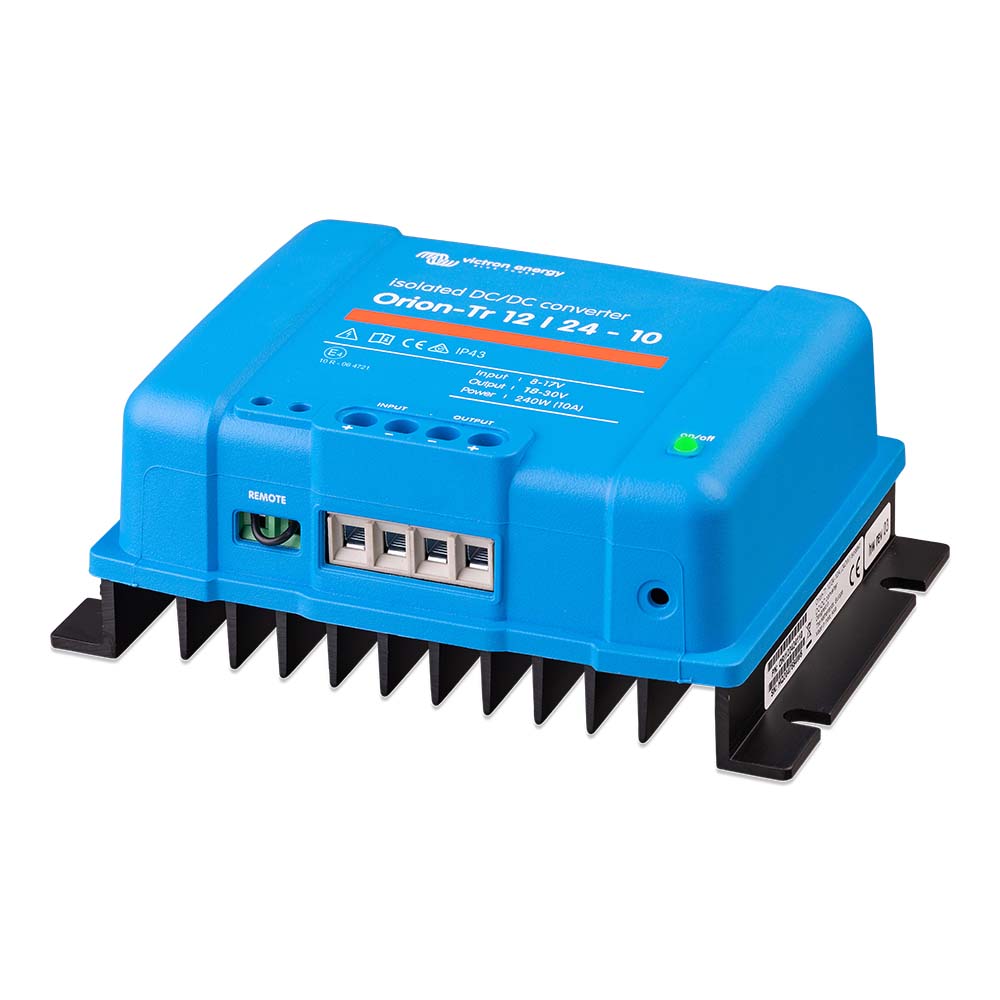

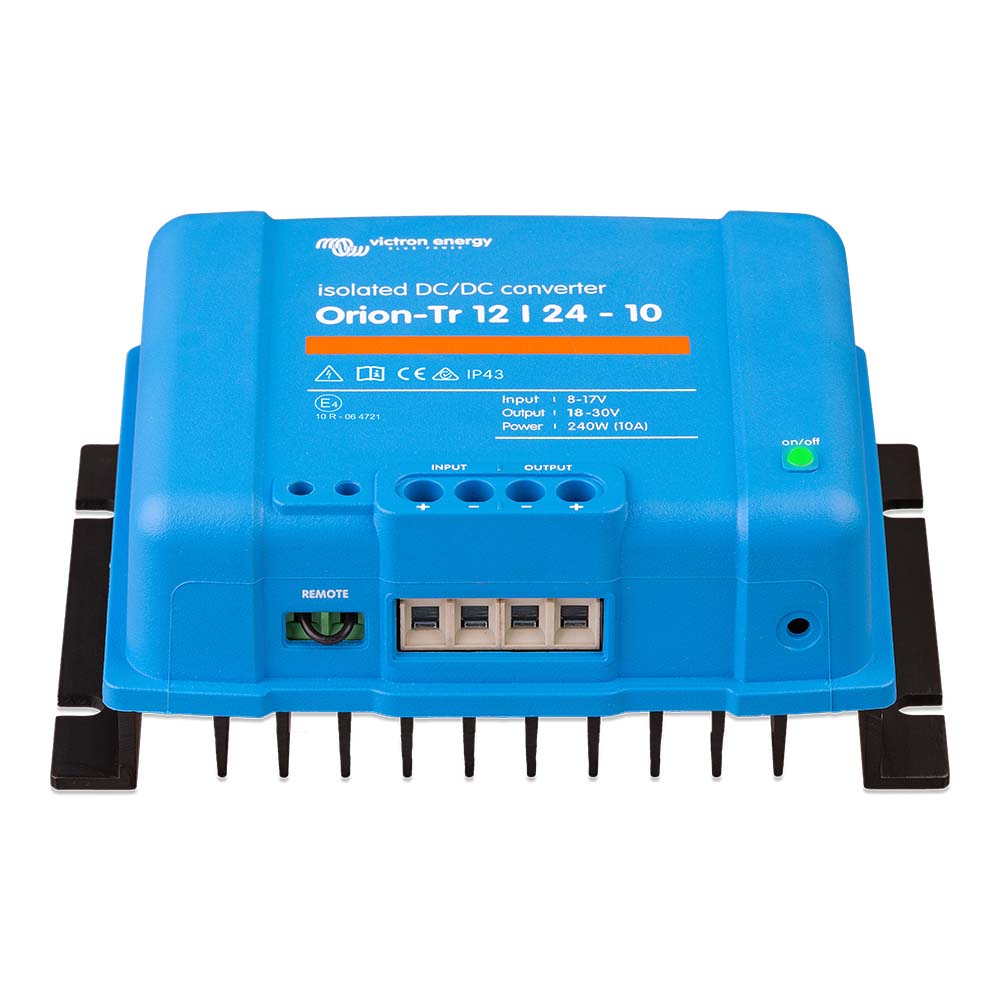

The Victron Orion-TR DC-DC Converter is a rugged, isolated power solution for demanding 12 V systems, delivering a clean 12.2 V output from a 12/24 V input up to 10 A (240 W). Designed for marine, automotive, RV, and off-grid installations, it prioritizes safety and stable power in challenging conditions.
-
Isolated output: Provides galvanic isolation between input and output to protect sensitive electronics in mobile and off-grid environments.
-
Regulated, adjustable output: Output is regulated at 12.2 V with an adjustable regulation range of 10–15 V and a tight 0.2 V tolerance for consistent electronics performance.
-
Remote On/Off: Low-power remote control allows switching without using a high-current input switch.
-
Paralleling capability: Unlimited parallel units to scale total output current as your system grows.
-
Protection & safety: Short-circuit protection, high-temperature derating, IP43 rating with downward-oriented screw terminals, and an input fuse on 12/24 V input models (not replaceable).
-
Wide input and power specs: 8–17 V input range with undervoltage shutdown at 7 V and restart at 7.5 V; continuous 10 A output, 15 A peak; up to 280 W at 25°C (240 W at 40°C).
-
Efficiency & noise: Up to 88% efficiency with 2 mV rms output noise; no-load input current < 100 mA; < 200 µA draw when disabled via remote port.
-
Operating environment: Wide operating temperature from -20 to +55°C and up to 95% non-condensing humidity; 200 VDC galvanic isolation between input, output, and case.
-
Installation & form factor: Screw terminals supporting up to 16 mm² (AWG6) cables; compact 130 × 186 × 70 mm; weight 1.3 kg.
-
Battery charging note: Not intended for charging batteries; for charging applications, consider the Orion-Tr Smart.
-
Compliance: Safety EN 60950; Emission EN 61000-6-3, EN 55014-1; Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2; Automotive ECE R10-5.
This Orion-TR model provides reliable isolation between input and output, helping protect sensitive electronics from voltage spikes and noise common in mobile and off-grid environments. Its adjustable regulation, remote control capability, and scalable paralleling make it a flexible choice for expanding systems, while the robust protection suite and broad environmental tolerance support dependable operation in demanding conditions.
