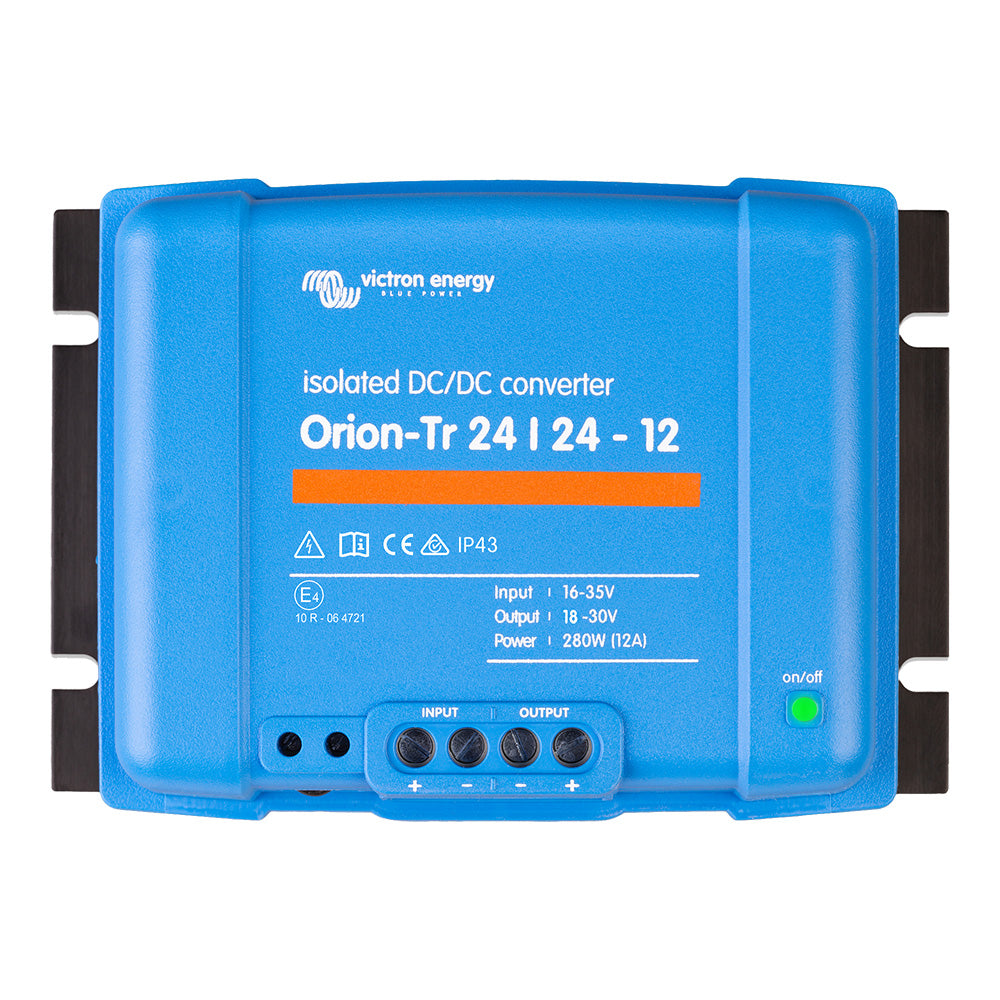

Victron Orion-TR 24/24-12A (280W) Isolated DC-DC Converter is a compact, rugged power solution designed to convert 24 VDC to a stable 24 VDC output with isolation for safer, more versatile automotive, marine, and off-grid systems. This isolated model features separate input and output (-) leads and a remote on/off terminal, making installation safer and control effortless.
-
Isolated 24 VDC to 24 VDC conversion delivering up to 280 W with clean, reliable output.
-
Remote On/Off terminal eliminates the need for a high-current switch in input wiring; operate it with a low-power switch or engine run/stop signals.
-
Paralleling capability – short circuit proof and can be paralleled with unlimited units to increase output current.
-
High temperature protection reduces output current at high ambient temperatures to protect the system.
-
IP43 protection when installed with screw terminals oriented downward for rugged environments.
-
Screw terminals allow easy installation with no special tools required; input fuse (not replaceable) applies to 12 V and 24 V input models only.
-
Adjustable output voltage (not intended for battery charging; consider Orion-Tr Smart for charging applications).
Specifications
-
Input Voltage Range: 16–35 V
-
Under Voltage Shut Down: 14 V
-
Under Voltage Restart: 15 V
-
Nominal Output Voltage: 24.2 V
-
Output Voltage Adjust Range: 20–30 V
-
Output Voltage Tolerance: +/- 0,2 V
-
Output Noise: 2 mV rms
-
Continuous Output Current at Nominal Output Voltage and 40°C: 12 A
-
Maximum Output Current (10 s) at Nominal Output Voltage: 15 A
-
Short Circuit Output Current: 30 A
-
Continuous Output Power at 25°C: 320 W
-
Continuous Output Power at 40°C: 280 W
-
Efficiency: 89%
-
No Load Input Current: < 80 mA
-
Galvanic Isolation: 200 VDC between input, output, and case
-
Operating Temperature Range: -20 to +55°C (derate 3% per °C above 40°C)
-
Humidity: Max. 95% non-condensing
-
DC Connection: Screw terminals
-
Maximum Cable Cross-Section: 16 mm² (AWG 6)
-
Weight: 1.3 kg (3 lb)
-
Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 in)
-
Safety Standards: EN 60950
-
Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
-
Automotive Directive Standards: ECE R10-5
Note: This converter is not intended for battery charging. For battery charging applications, consider using an Orion-Tr Smart charger. For support, returns, or repairs, please contact your dealer.
