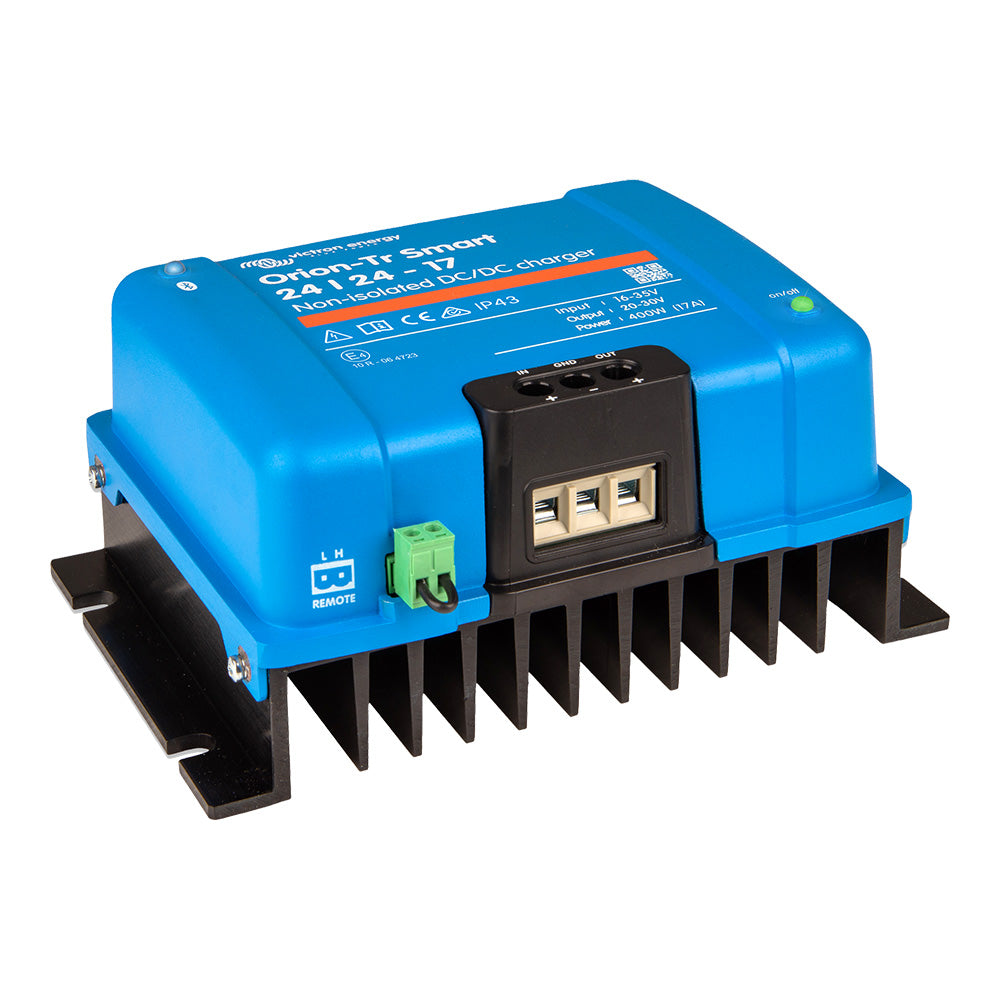

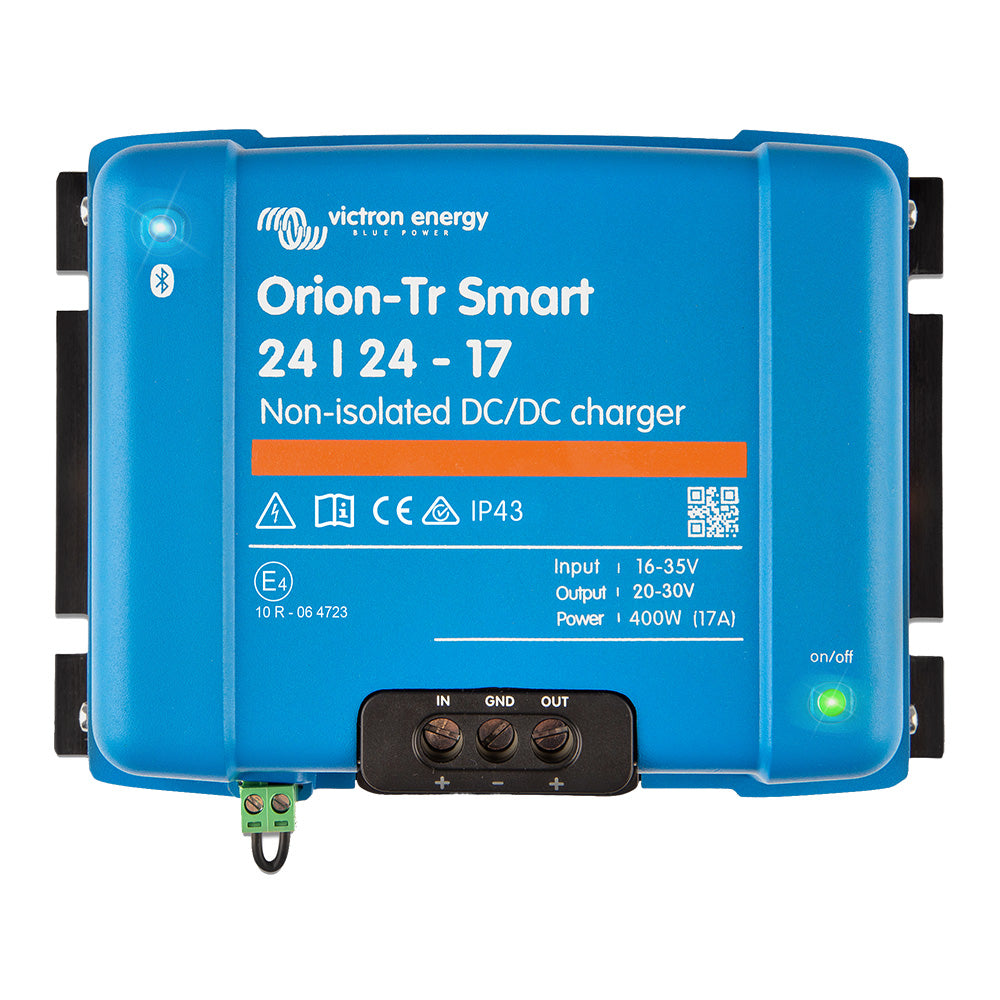

Meet the Victron Orion‑TR Smart 24/24‑17A, a compact, non‑isolated DC‑DC charger and power supply engineered to keep 24V systems charged and ready. With built‑in Bluetooth and the powerful VictronConnect ecosystem, you can monitor, configure, and update the charger anytime, from your phone or tablet.
-
Bluetooth Smart Enabled: Seamless monitoring and configuration via the VictronConnect app. View key data, warnings, and alarms on your device without extra connections.
-
Adaptive 3‑Stage Charging: Bulk – Absorption – Float for lead‑acid batteries, automatically adjusting absorption time to prevent overcharging after shallow or deep discharges. For lithium batteries, absorption time is fixed by default (2 hours) or you can opt for a fixed output voltage.
-
Fully Programmable or Fixed Output: Choose a configurable battery charge algorithm or set a fixed output voltage to suit your system needs.
-
Remote On/Off: Connect a two‑pole remote switch or relay contact, or switch the H (battery +) or L (battery −) terminals for convenient control in vehicle or vessel installations.
-
Parallel Ready: Short‑circuit proof and capable of paralleling an unlimited number of units to increase output current as your system grows.
-
High Temperature Protected: Output current automatically derates at higher ambient temperatures to protect your battery and charger.
-
Rugged IP43 Protection (electrical components) with IP22 in the connection area, designed for demanding environments when mounted appropriately.
-
Versatile Electricals: Input 20–35 V, under‑voltage shut down at 14 V and restart at 15 V. Nominal output 24.2 V, adjustable 20–30 V, with tight output tolerance of ±0.2 V and low noise (2 mV rms).
-
Solid Power and Efficiency: 17 A continuous current at nominal output (40°C), up to 25 A peak (10 s), delivering up to 480 W continuous at 25°C (400 W at 40°C) with about 89% efficiency.
-
Low Standby and No‑Load Draw: No load input current under 80 mA; standby current less than 1 mA, helping keep your system’s overall drain in check.
-
Compact, Lightweight Design: 130 × 186 × 70 mm and about 1.6 kg, balancing performance with space and weight constraints in vehicles and vessels.
-
Safety and Compliance: EN 60950 safety standard compliance, automotive directive considerations, and galvanic isolation of 200 VDC between input, output, and case for safe integration.
Designed for 24V Systems That Demands Reliability
The Orion‑TR Smart 24/24‑17A serves as a robust DC‑DC charger and power solution for boats, trucks, off‑grid installations, and any setup requiring dependable 24V regulation from a 24V source. Its adaptable charging profiles keep both lead‑acid and lithium batteries properly serviced, while the Bluetooth interface and remote control options provide flexible integration into modern, connected power systems. When you need a compact, future‑proof charger that protects, monitors, and powers your 24V world, the Orion‑TR Smart is built to perform.
