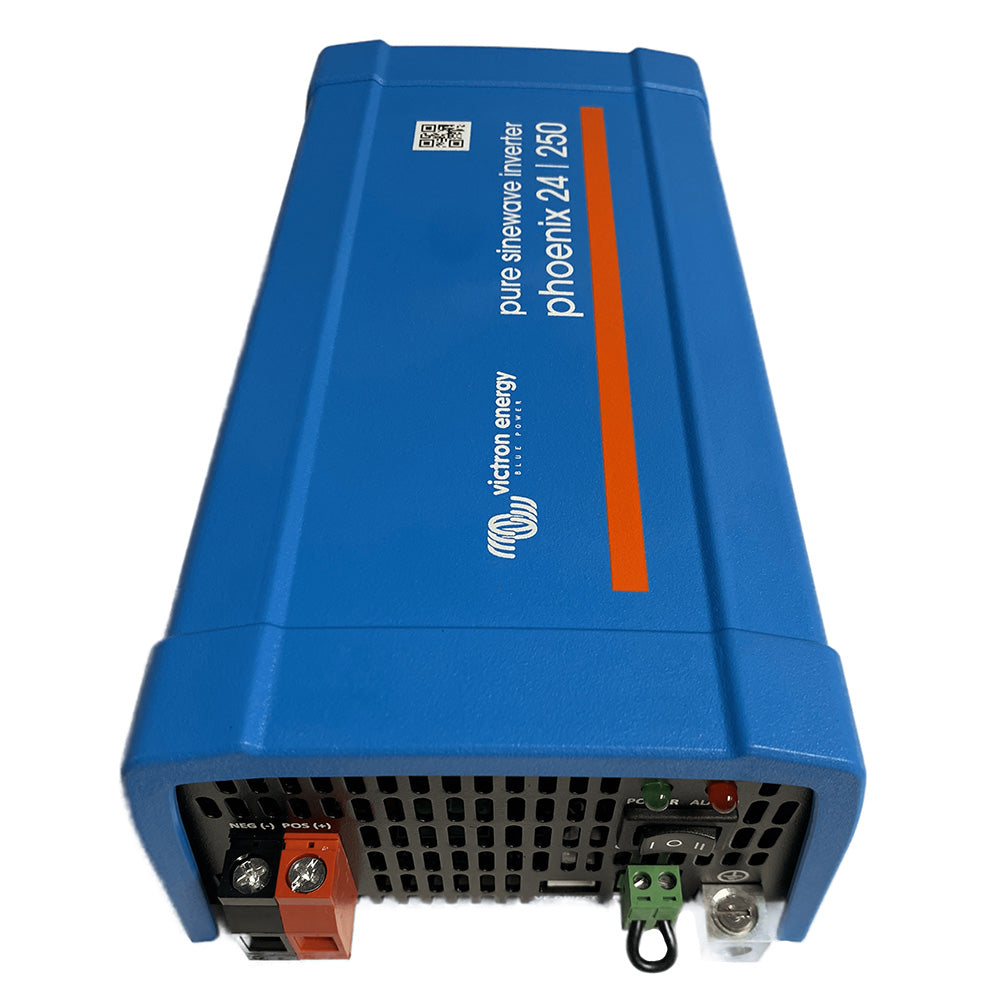

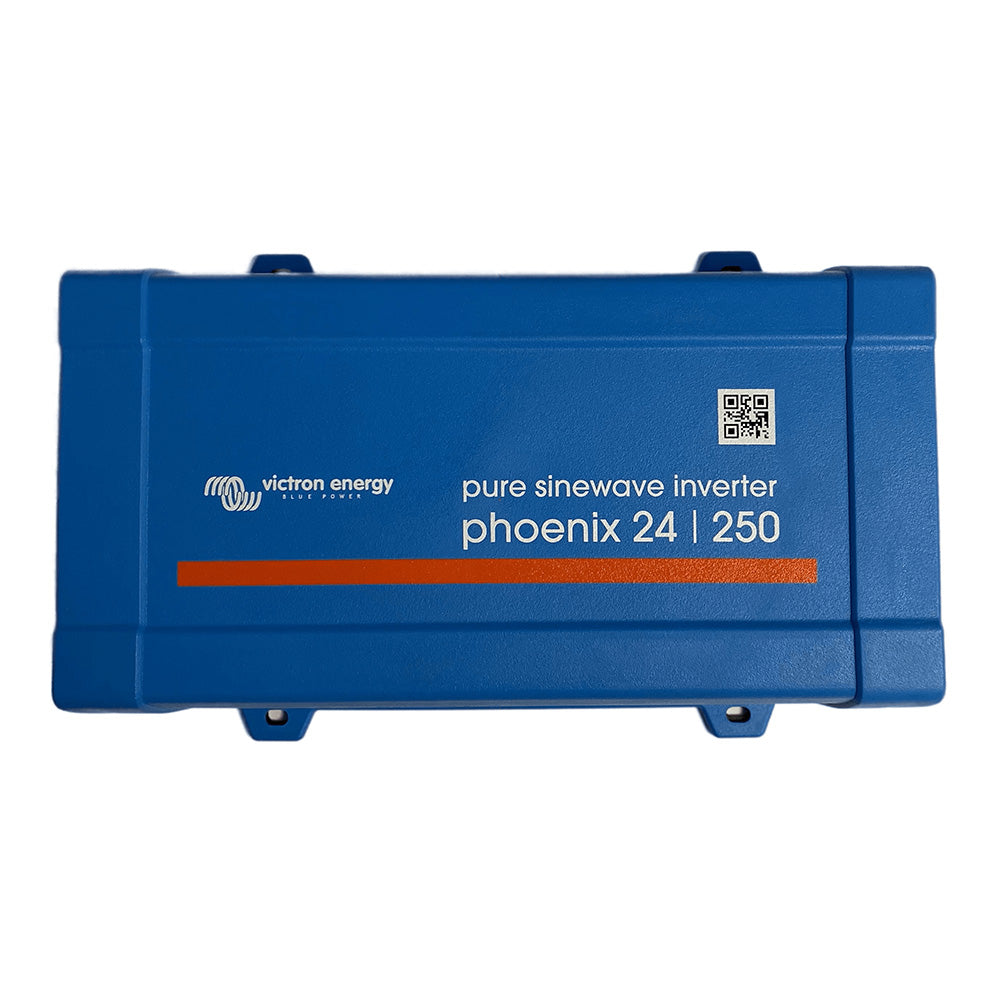

Power your essential devices anywhere with the Victron Phoenix Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R. This compact, robust inverter converts 24V battery power into clean 120V AC to run household appliances from leisure or automotive batteries. With VE.Direct connectivity, you can monitor and configure the inverter from a computer or mobile device, optimize protection settings, and keep your power system running reliably.
Key features
-
Reliable power output: 250 VA continuous (200 W @ 25°C; 175 W @ 40°C) with up to 400 W peak for short bursts.
-
Flexible output: 120 VAC ±3% at 50/60 Hz (adjustable).
-
Multi-range DC input: 9.2–17 V, 18.4–34 V, or 36.8–62.0 V DC input ranges to match different battery setups.
-
Advanced battery protection: Adjustable low battery alarm/trip, cut-off and restart levels, plus dynamic load-dependent cut-off.
-
VE.Direct connectivity: Connect to a computer via VE.Direct USB interface or to Apple/Android devices with VE.Direct Bluetooth Smart dongle for monitoring and configuration.
-
Efficient, eco-aware operation: ECO mode on/off with configurable sense; zero-load power as low as 0.8–2.5 W in ECO mode; fully configurable stop/start power.
-
Comprehensive monitoring: Real-time monitoring of input/output voltage, load percentage, and alarms
-
Rugged build: Steel chassis with blue cover (RAL 5012), designed for harsh environments and extended life.
-
Flexible AC outlets: 230V outlets including Schuko, IEC-320 (male plug included), UK BS 1363, AU/NZ AS/NZS 3112, and 120V NEMA 5-15R; suitable for a wide range of devices.
-
Safety and reliability: IP21 enclosure protection; fan-assisted cooling; temperature range -40 to +65°C with derating above 40°C.
-
Convenient accessories: Remote On-Off capability and Filax Automatic Transfer Switch compatibility for seamless power switching.
Technical specifications
-
Continuous power: 250 VA; 200 W @ 25°C; 175 W @ 40°C
-
Peak power: 400 W
-
Output: 120 VAC ±3%, 50/60 Hz (adjustable)
-
Input voltage range: 9.2–17 V, 18.4–34 V, 36.8–62.0 V DC
-
Low shutdown (adjustable): 9.3/18.6/37.2 V
-
Dynamic cut-off (adjustable): 10.9/21.8/43.6 V
-
Battery charged detect (adjustable): 14.0/28.0/56.0 V
-
Maximum efficiency: up to 88% (ranges may vary slightly with input)
-
Zero-load power: 4.2/5.2/7.9 W
-
ECO mode stop/start power: 0.8/1.3/2.5 W
-
Operating temperature: -40 to +65°C (fan-assisted cooling); derate 1.25% per °C above 40°C
-
Humidity: Max 95% non-condensing
-
Enclosure: Steel chassis with plastic blue cover (RAL 5012); IP21 protection
-
Battery connections: Screw terminals; max cable cross-section 10 mm² / AWG 8
-
AC outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: NEMA 5-15R
-
Accessories: Remote On-Off; Automatic Transfer Switch: Filax
Note: For returns, repairs, or support related to this product, please contact your Victron dealer for assistance.
