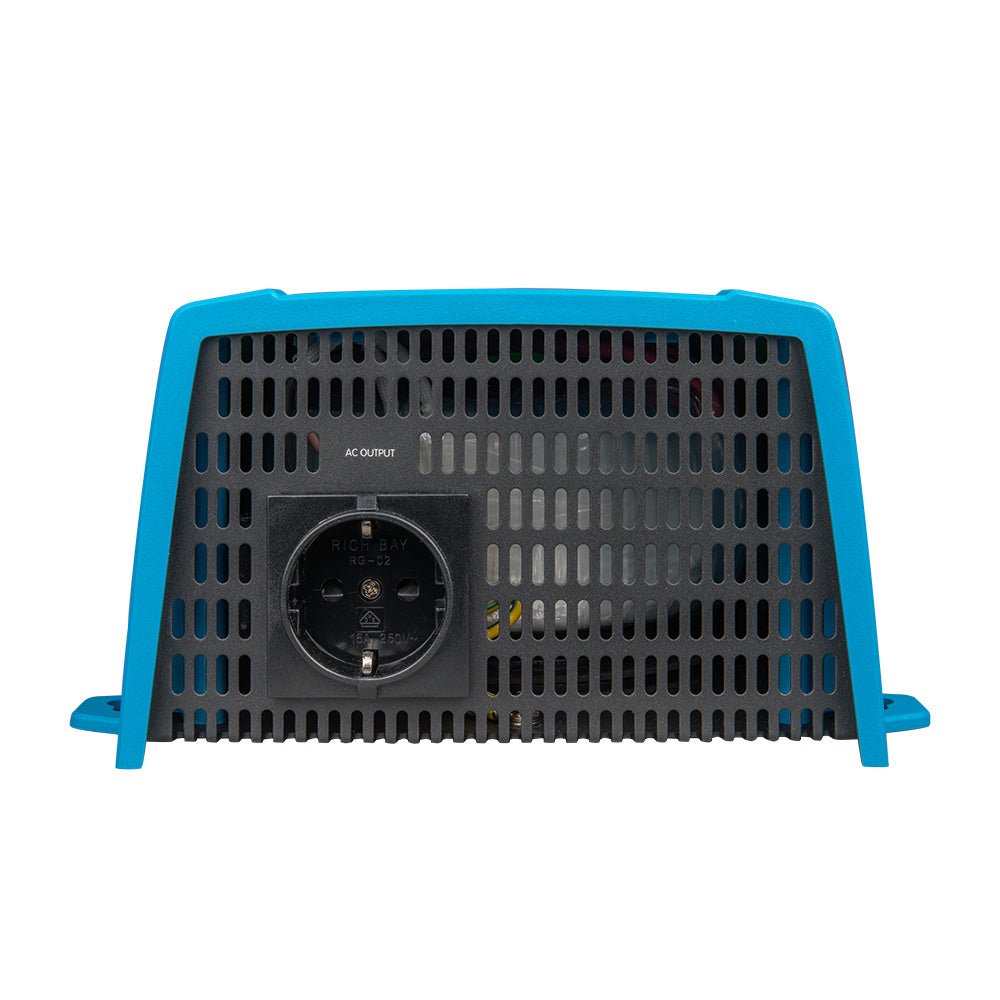

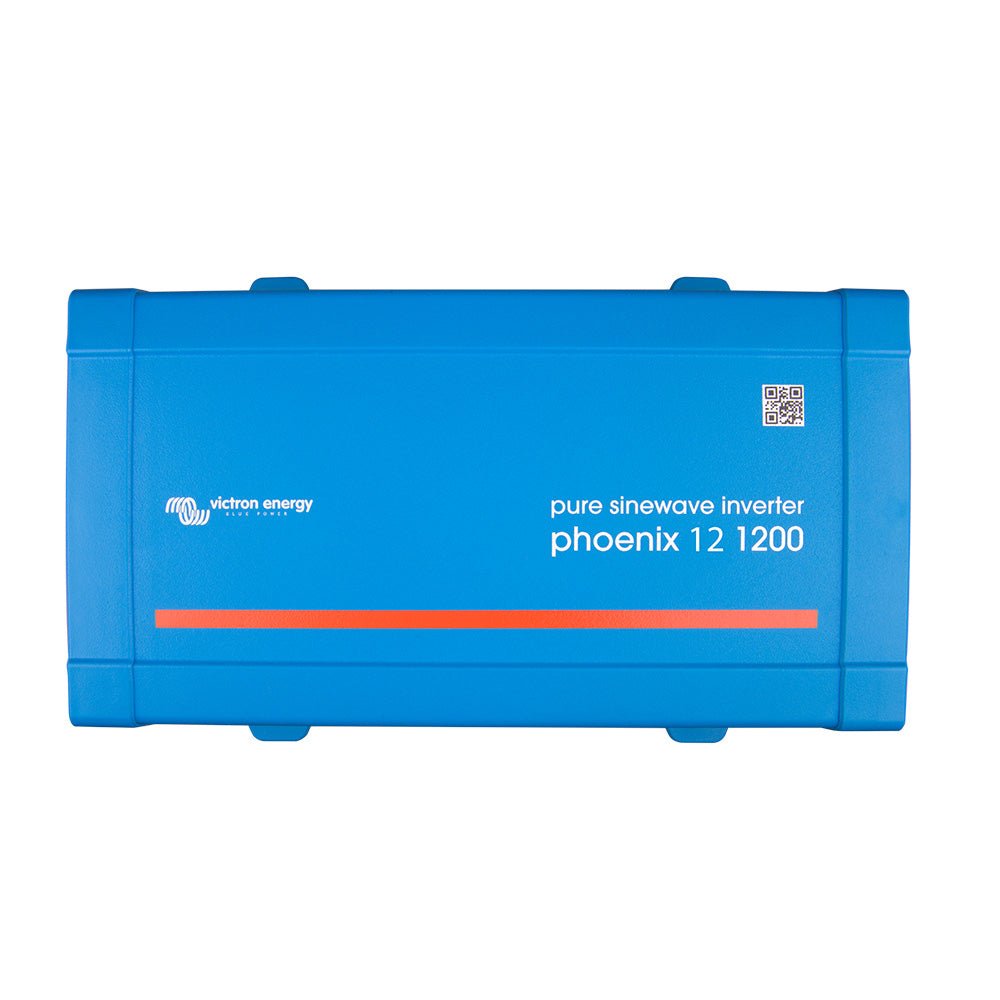

The Victron Phoenix Inverter VE.Direct 12VDC - 1200VA - 120V delivers clean 120V AC power from a 12V battery, ideal for off-grid, vehicle, or leisure battery setups, with built-in remote monitoring and control through VE.Direct.
-
Output power and voltage: 1200 VA continuous power with 120V AC output, 210–245V output range, and selectable 50/60 Hz to match regional requirements.
-
VE.Direct connectivity: VE.Direct port enables remote monitoring and control—connect to a computer with VE.Direct to USB, or pair wirelessly with Apple or Android devices via the VE.Direct Bluetooth Smart dongle.
-
Fully configurable protection and control: Low battery voltage alarm trip/reset, low voltage cut-off and restart, and dynamic cut-off that follows load.
-
Reliability and safety: Full-bridge plus toroidal transformer topology with short-circuit and overheating protection for safe operation under overload or high ambient temperatures.
-
High start-up power: Capable of handling startup surges for loads like LED drivers, halogen lamps, and power tools.
-
ECO mode: When the load falls below 15 W, the inverter enters standby and periodically restarts (default every 2.5 seconds) to check for load, staying on if needed; min-load and wake settings are adjustable.
-
Remote on/off: Control via a two-pole remote switch or by wiring between battery positive and the switch terminal for convenient operation.
-
Automatic transfer switch compatibility: Works with automatic transfer switches for seamless switchover to an alternate AC source; recommended Filax Automatic Transfer Switch for low-power inverters with switchover under 20 ms.
-
Monitoring: Continuous visibility of in- and output voltage, load percentage, and alarm monitoring to keep you informed.
-
Easy installation: DC connection via screw terminals with no special tools required, simplifying integration into existing 12V systems and battery banks.
With robust protections and flexible monitoring, the Phoenix Inverter delivers reliable power for off-grid or vehicle-based applications. The ECO mode reduces idle draw, while VE.Direct connectivity enables remote status checks and control. A simple screw-terminal installation makes it straightforward to integrate into existing 12V systems and battery banks, with compatibility for automatic transfer switches to keep electronics running during source changes.
