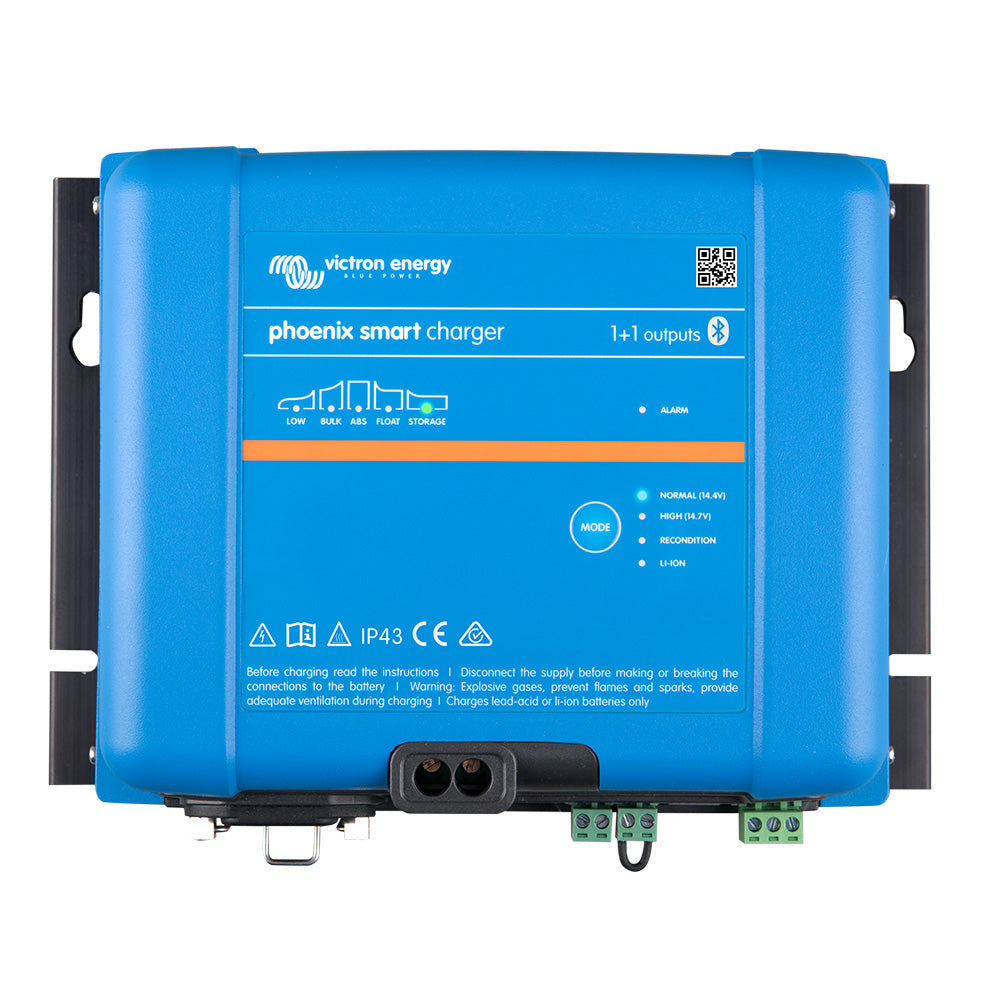

Victron Phoenix Smart IP43 Charger 24/16 (1+1) 120-240VAC is a marine-ready, multi-bank charger engineered for serious boat power systems. With an IP43 enclosure, it’s built to withstand the challenges of life on the water. Note: the 5-15P mains cord is not included.
Designed with boat owners in mind, this adaptive 5-step charger can power multiple battery banks with intelligent control. In the 3-bank configuration, each output delivers full current to its respective bank. The Phoenix Smart IP43 1+1 model uses two outputs: the primary output charges the house bank, while a smaller secondary output tops up the starter battery.
For 24V systems, you can choose models with 16A or 25A charging, pairing fast, efficient charging with flexible installation.
Smart, Bluetooth-enabled monitoring
-
Bluetooth Smart built-in: Set up, monitor, update and synchronize Phoenix Smart IP43 Chargers directly from your phone.
-
Remote control and alarms: Keep an eye on voltage, current and status, and receive alerts as needed.
Advanced charging intelligence
-
Automatic voltage compensation: Adjusts output to counteract voltage drop along the DC cabling as current flows.
-
Adaptive 6-stage charging: Bulk – Absorption – Recondition – Float – Storage – Refresh. The adaptive system preset adapts to different battery types and usage patterns for optimal health and performance.
-
Right amount of charge: Variable absorption time ensures shallow discharges don’t overcharge, while deep discharges receive a longer absorption to reach full capacity.
-
BatterySafe mode: Prevents damage from excessive gassing by limiting voltage ramp when high absorption voltage is reached.
-
Storage Mode: After 24 hours of no discharge, float voltage drops to 13.2V for a 12V battery (2.2V per cell) to minimize gassing and corrosion; weekly re-absorption/equalization maintains battery health.
Battery compatibility and control
-
Li-ion (LiFePO4) support: Fully compatible with LiFePO4 cells.
-
Remote on/off and Bluetooth control: Use a relay or optocoupler from a Li-ion BMS for remote on/off, or manage voltage/current directly via Bluetooth.
-
Versatile multi-bank options: The 3-output configuration provides three full-current outputs, while the 1+1 setup offers two outputs with a secondary, lower-current link for starter batteries; total current cannot exceed the charger's rated capacity.
Whether you’re cruising coastal shores or anchored offshore, the Victron Phoenix Smart IP43 Charger delivers reliable, smart charging across banks, simplifies monitoring via Bluetooth, and protects battery health with intelligent safety features. Cordless simplicity and marine-grade durability come standard—just connect to a 120-240VAC supply, choose your bank configuration, and let the adaptive technology do the rest.
