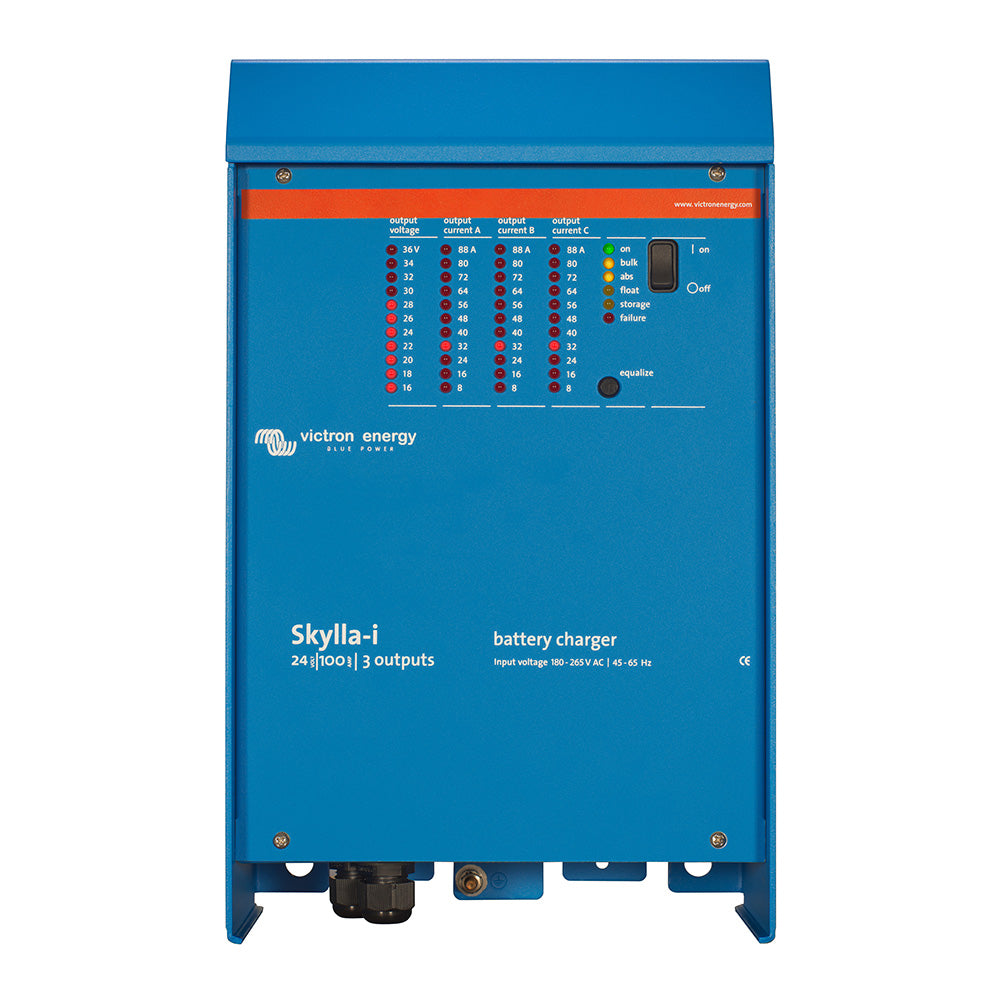

Meet the Victron Skylla-i Battery Charger 24/100 (3) 230V—a rugged, three-output charger delivering reliable, fully shared charge for multiple lead-acid batteries in harsh environments.
-
Three isolated outputs: All outputs can deliver the full rated output current, enabling simultaneous charging without interference.
-
Rugged construction: Aluminium epoxy powder-coated cases with a drip shield and stainless steel fixings resist heat, humidity, and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance, and built-in temperature sensors help keep power components within safe limits by automatically reducing output current when needed.
-
Flexible charging control: In addition to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches, and potentiometers are available to tailor the charge algorithm to your battery and usage. Refer to the manual for full configurability.
-
Synchronized parallel operation: Several Skylla-i units can be synchronized via the CAN bus by interconnecting them with RJ45 cables (note: two-output and three-output chargers cannot be paralleled with each other).
-
Smart charging for lead-acid: Variable absorption time adapts to discharge depth—short for shallow discharges to prevent overcharging, longer after deep discharges to ensure a full recharge.
-
BatterySafe mode: Prevents damage from excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage is reached.
-
Storage mode: If the battery remains undischarged for 24 hours, float voltage is reduced to 2.2V per cell (26.4V for 24V batteries) to minimize gassing and corrosion; once a week, voltage is raised back to absorption level to refresh the battery and prevent stratification and sulfation.
-
Temperature compensation: A built-in battery temperature sensor ensures charge voltage decreases with rising temperature, extending life for sealed lead-acid batteries and when temperature varies.
-
Battery voltage sense: Voltage sensing compensates for cable resistance so the battery always receives the correct charge voltage.
-
AC and DC operation: Suitable for AC-DC and DC-DC input; accepts DC supply and can be used as a power supply.
Designed for demanding marine, RV, and industrial applications, the Skylla-i 3-output charger delivers reliable, efficient charging with advanced protection and customization to match your battery bank and operating environment.
