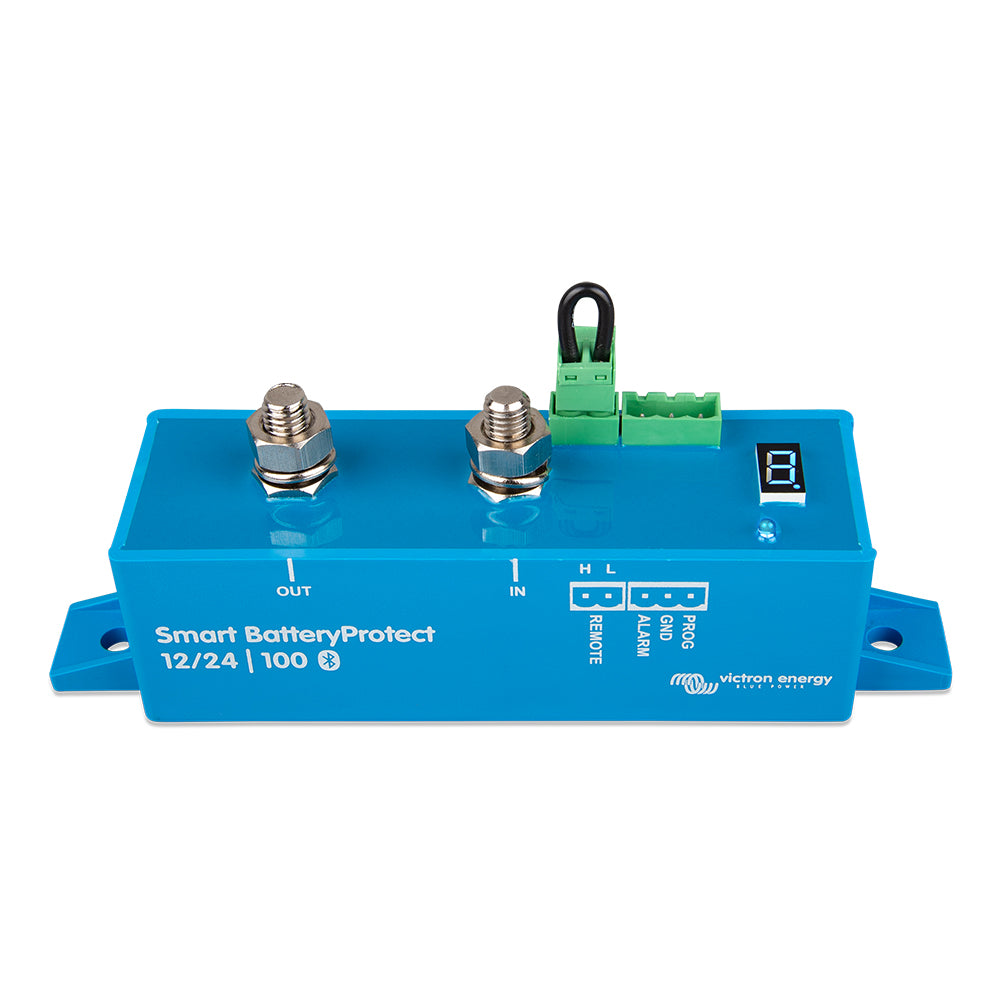

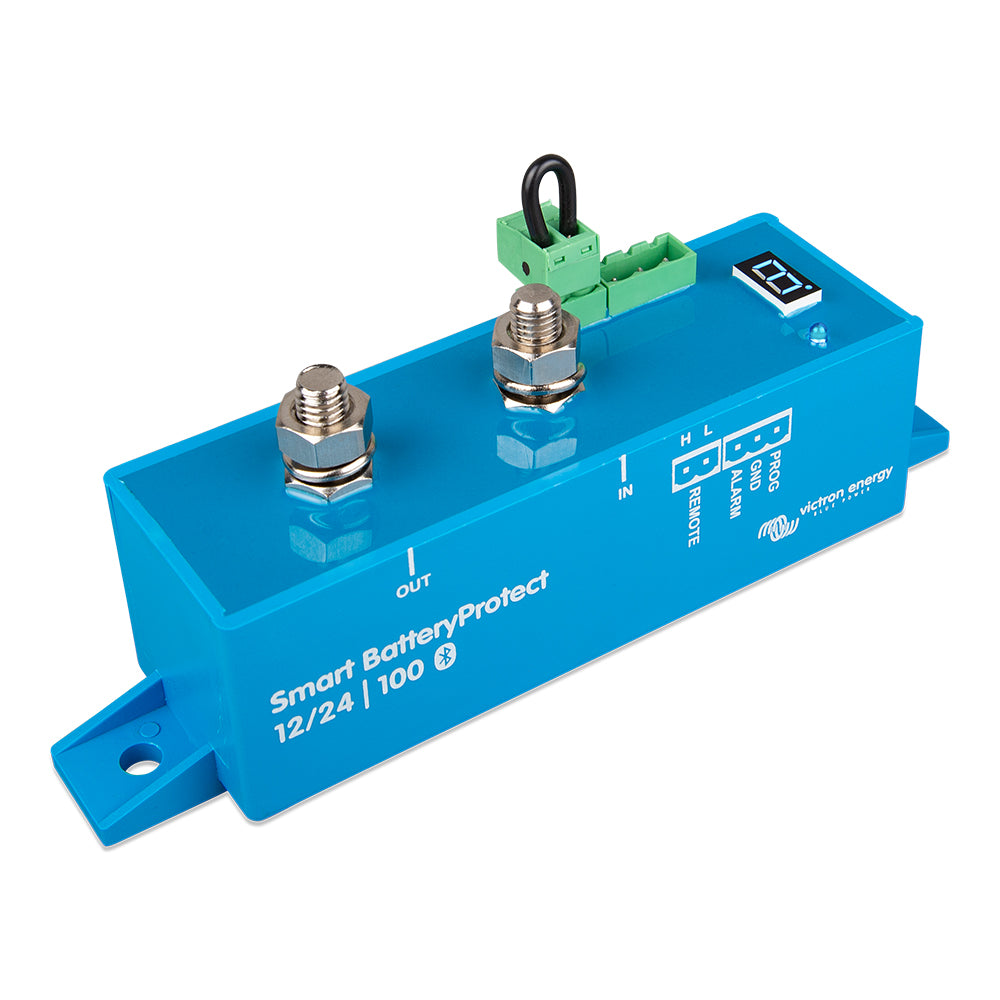

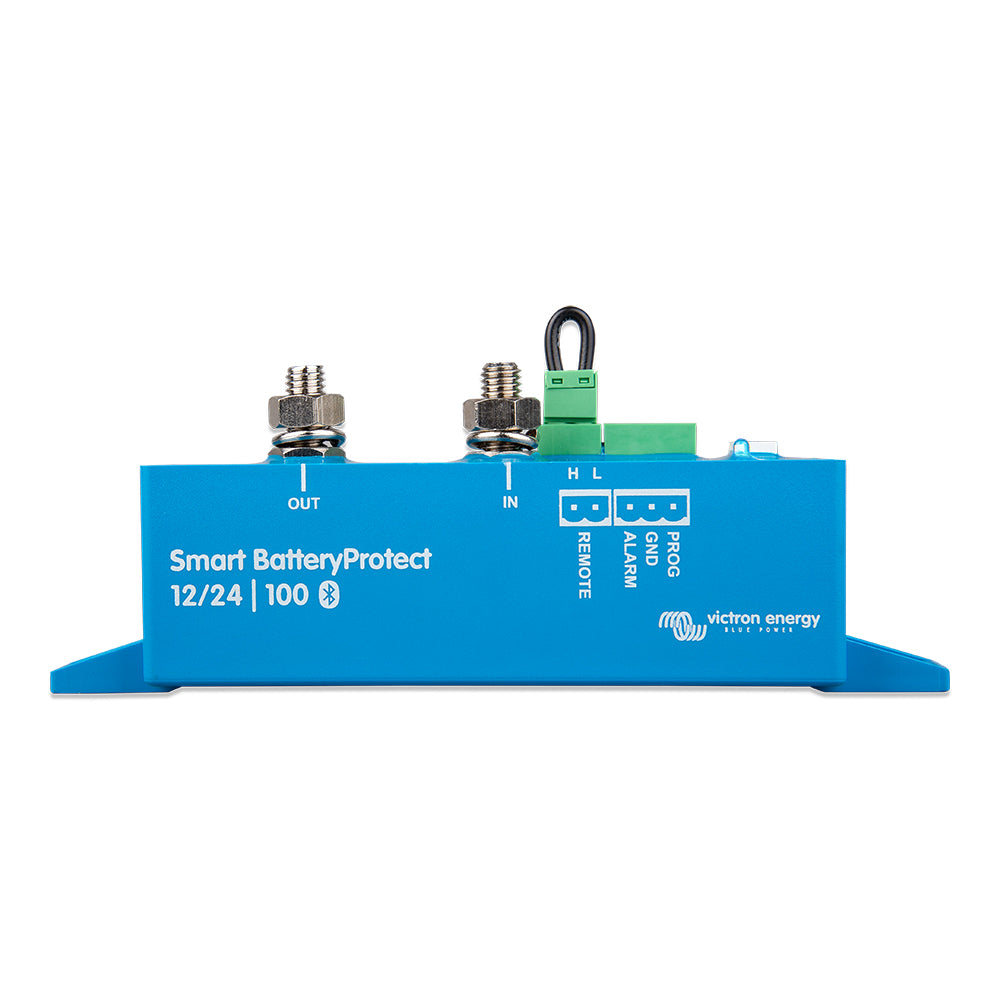

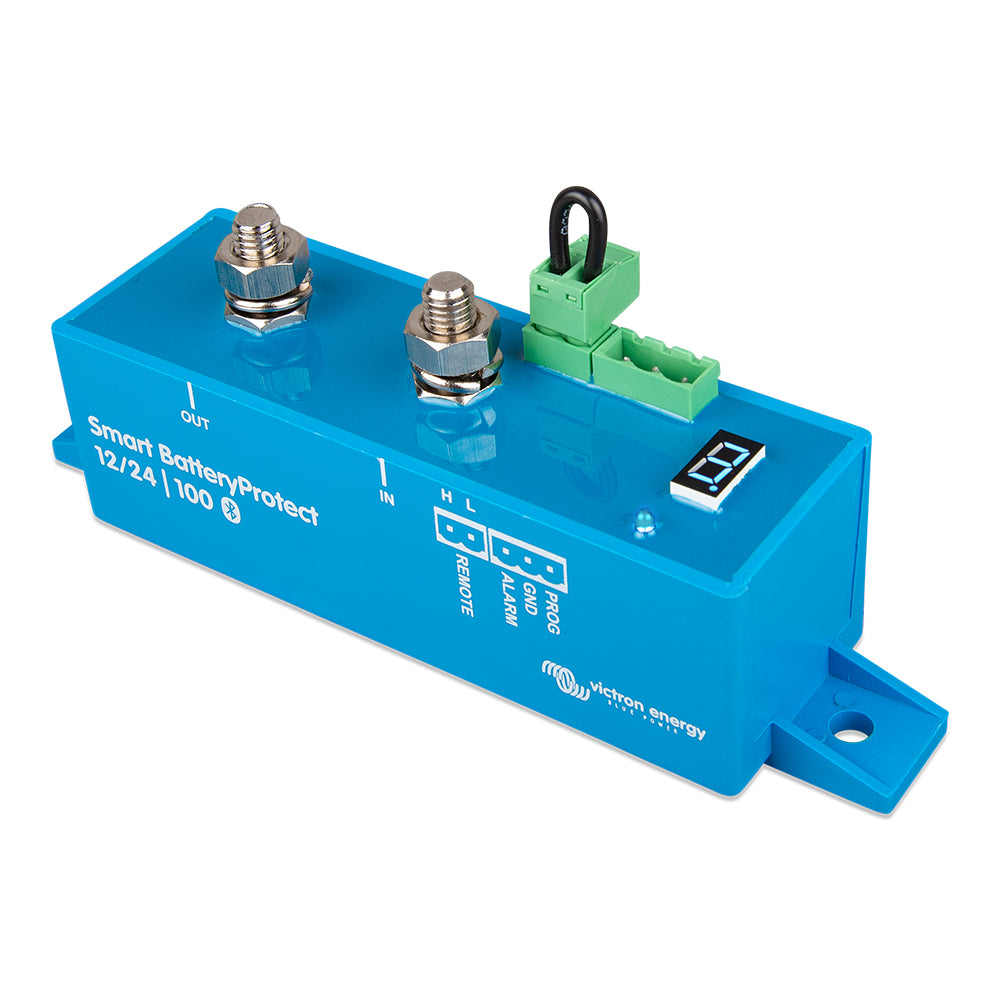

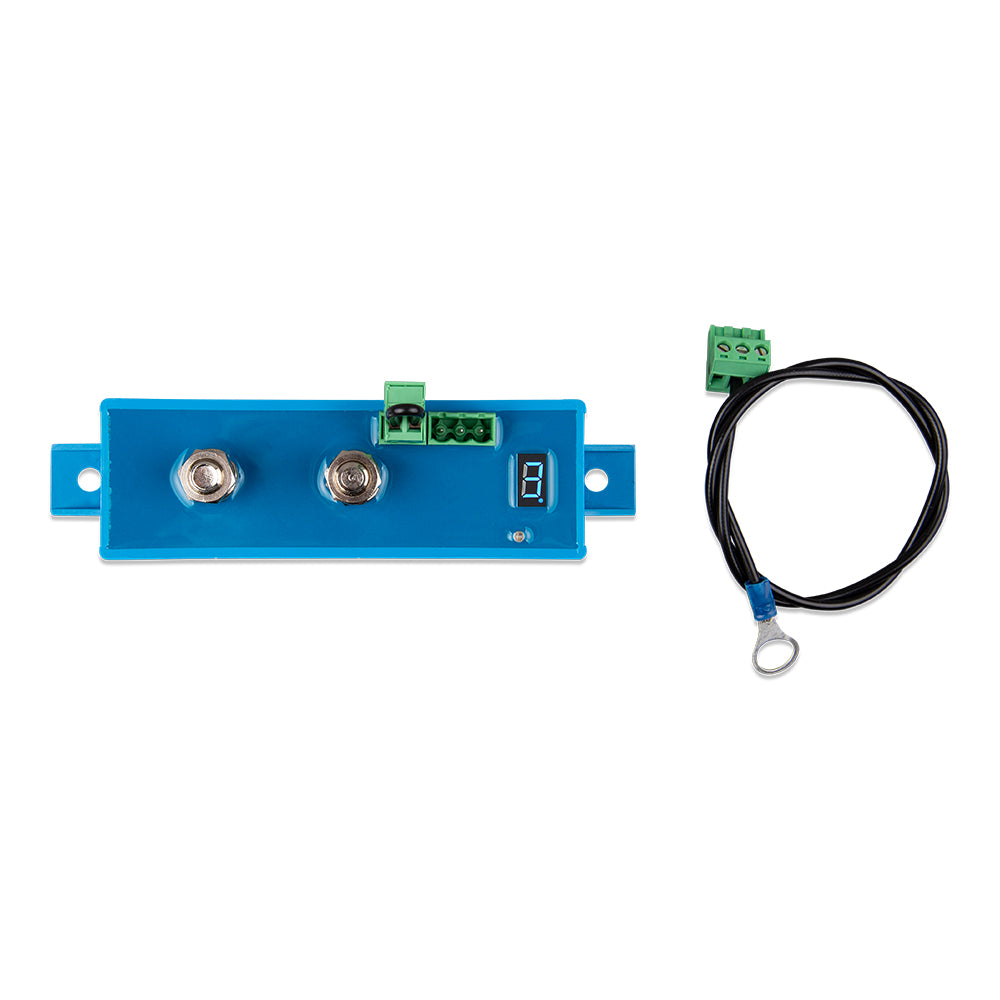

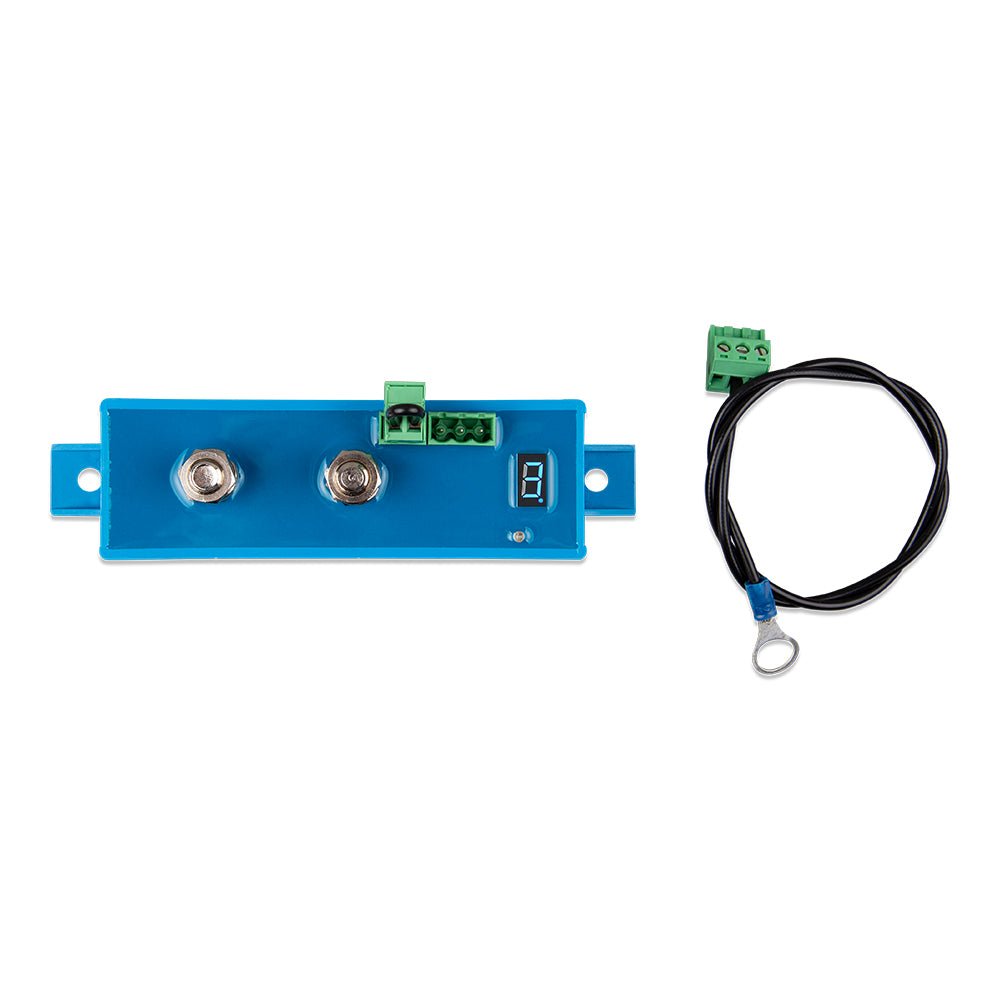

Victron Smart BatteryProtect - 100AMP - 6-35 VDC - Bluetooth Capable

Meet the Victron Smart BatteryProtect - 100A, 6-35 VDC, Bluetooth Capable. A smart protection device that guards your battery from excessive discharge while doubling as a convenient on/off switch for your electrical system.

Designed for 12/24V systems with auto-ranging capability, the Smart BatteryProtect automatically detects system voltage (one-time) and disconnects non-essential loads before the battery is deeply discharged or before there isn't enough power to crank the engine. Use the on/off input to control system power for simple, reliable operation.

• Bluetooth programming made easy: When connected via Bluetooth, you can set the required engage/disengage levels. If you prefer a fixed setting, choose one of nine predefined levels using the programming pin (the Bluetooth feature can be disabled if desired).
• Li-ion battery compatibility: Special Li-ion mode lets the BatteryProtect be controlled by a VE.Bus BMS and can also serve as a charging interrupter between a charger and a Li-ion battery.
• Ultra-low current consumption: Designed to minimize draw, which is especially important for Li-ion systems after a low voltage shutdown.
• Over-voltage protection: Prevents damage to sensitive loads by disconnecting the load if voltage exceeds 16.3V (or 32.6V in higher voltage configurations).
• Ignition protection: No relays—MOSFET switches mean no sparks during operation.
• Delayed alarm and disconnect timing: The alarm output activates if the battery voltage stays below the disconnect threshold for more than 12 seconds. The load disconnects 90 seconds after dropping below the threshold, and reconnects 30 seconds after voltage rises above the reconnect level.
• Clear compatibility: 12/24V auto-ranging and a dedicated Li-ion setting, plus option to use as a charge interrupter for Li-ion batteries.

Specifications and practical notes

• Voltage range: 6-35 VDC
• Current rating: 100 A
• Power system: 12/24V auto-ranging (voltage detected once)
• Bluetooth capable for easy programming; disable if needed
• On/off input to switch system power
• Protection against over-voltage: 16.3 V (32.6 V depending on configuration)
• Ignition-proof MOSFET switches with no sparking
• Alarm output: open collector, max 50 mA
• Delayed load disconnect: 90 seconds after low voltage; reconnect after 30 seconds above threshold
• Special Li-ion mode and VE.Bus BMS compatibility

Warranty & support: Manufacturer Victron Energy | Part No BPR110022000 | UPC 8719076041245. For returns, repairs or support issues, please contact your dealer.
