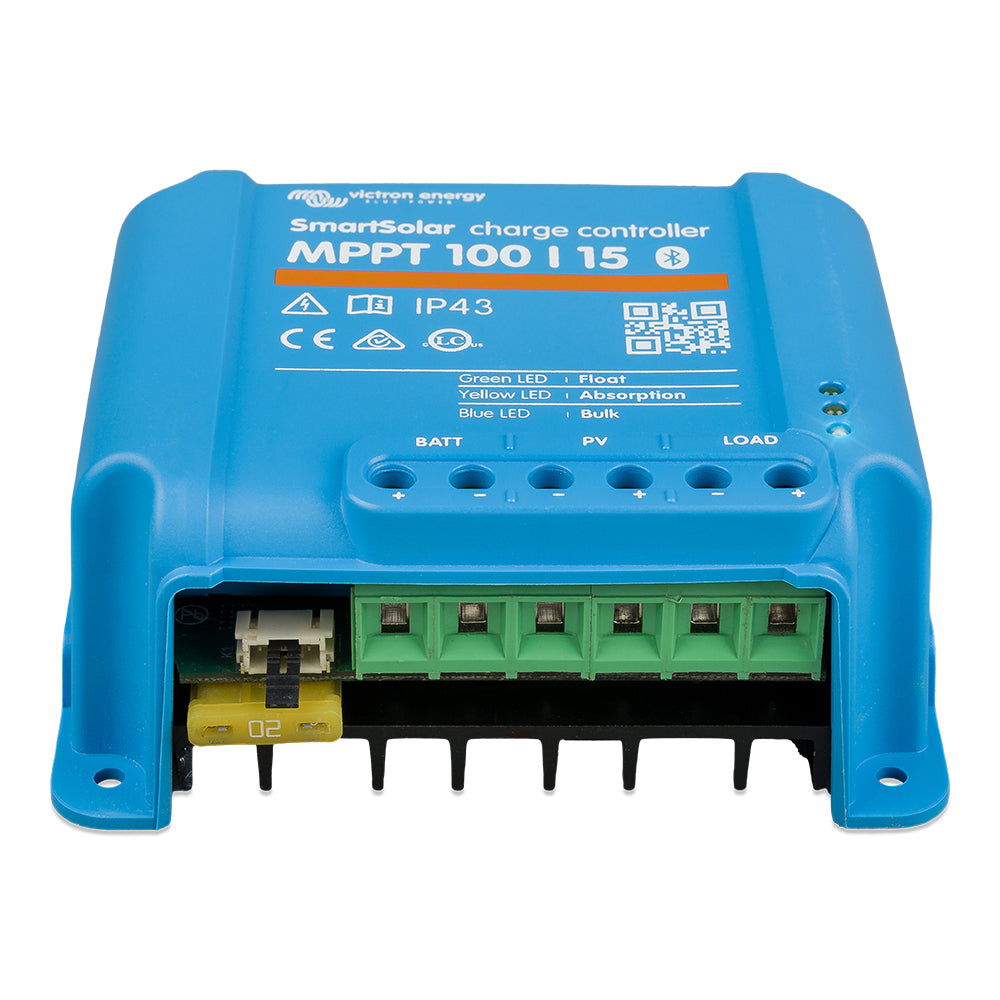

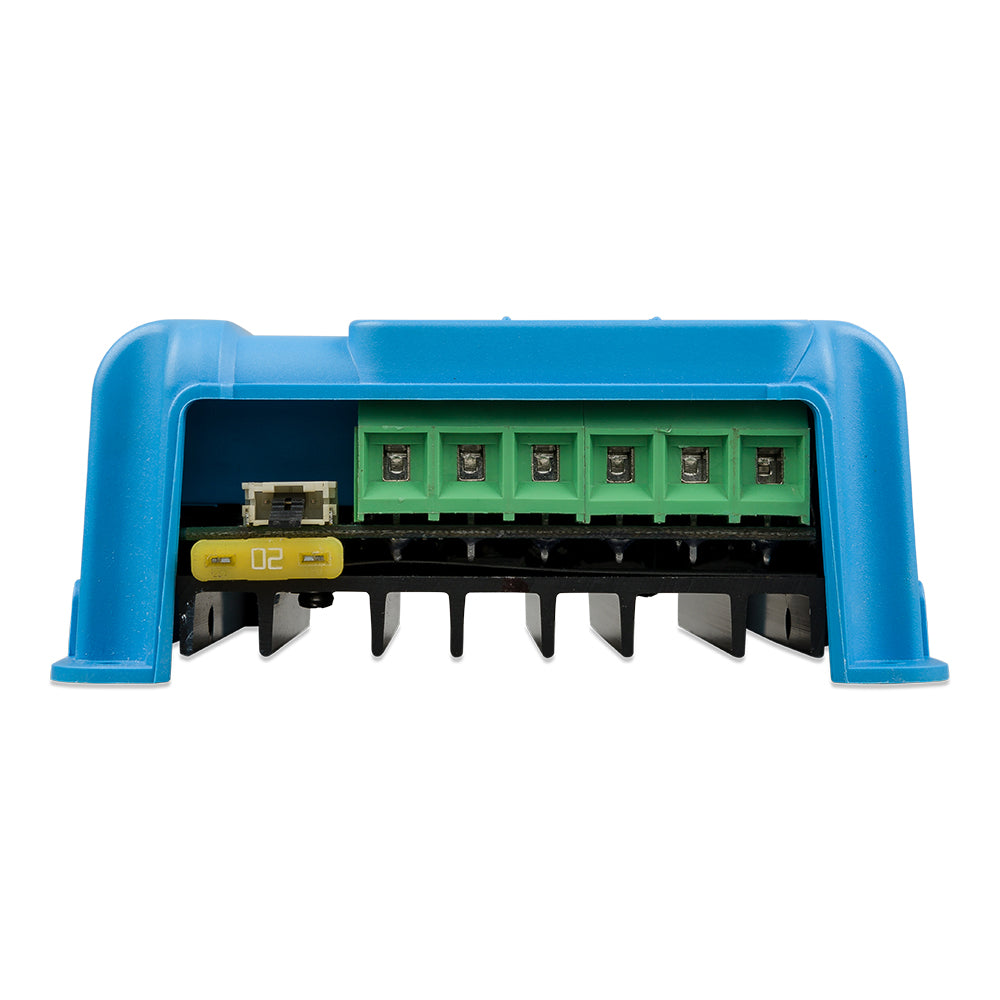

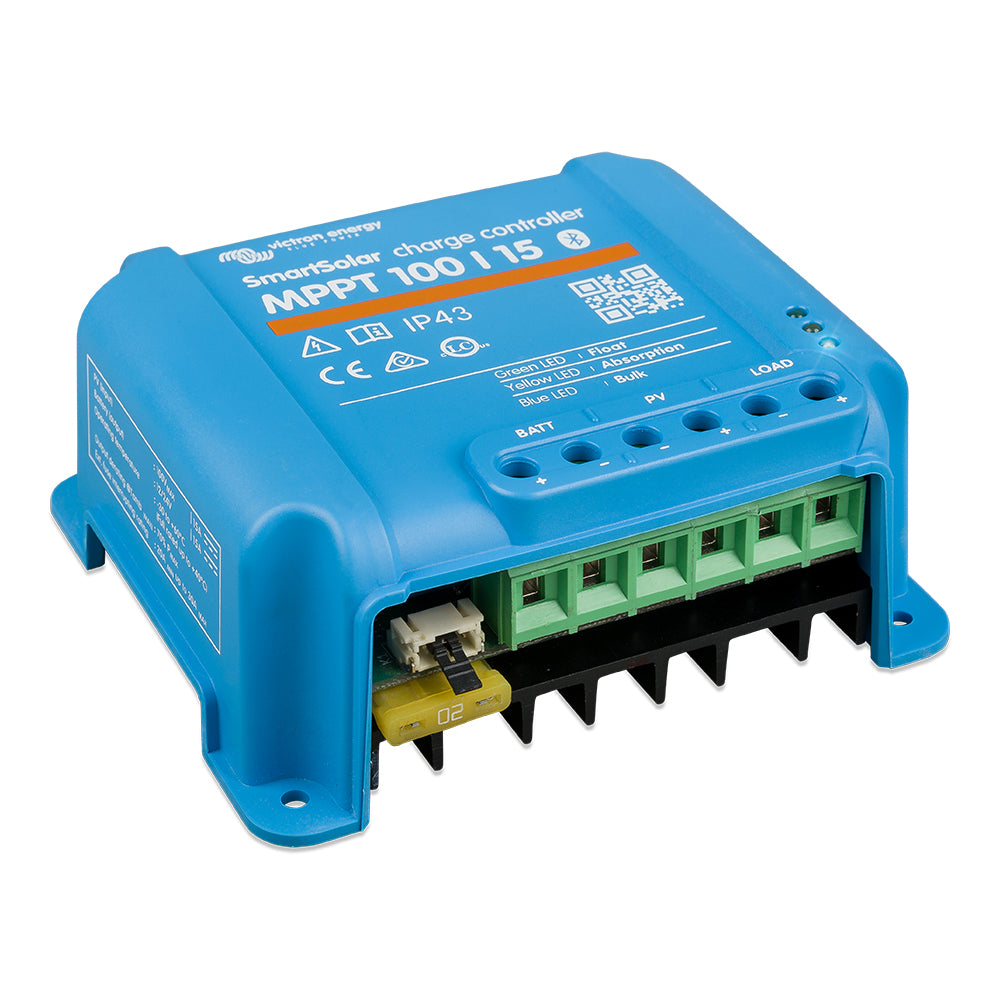

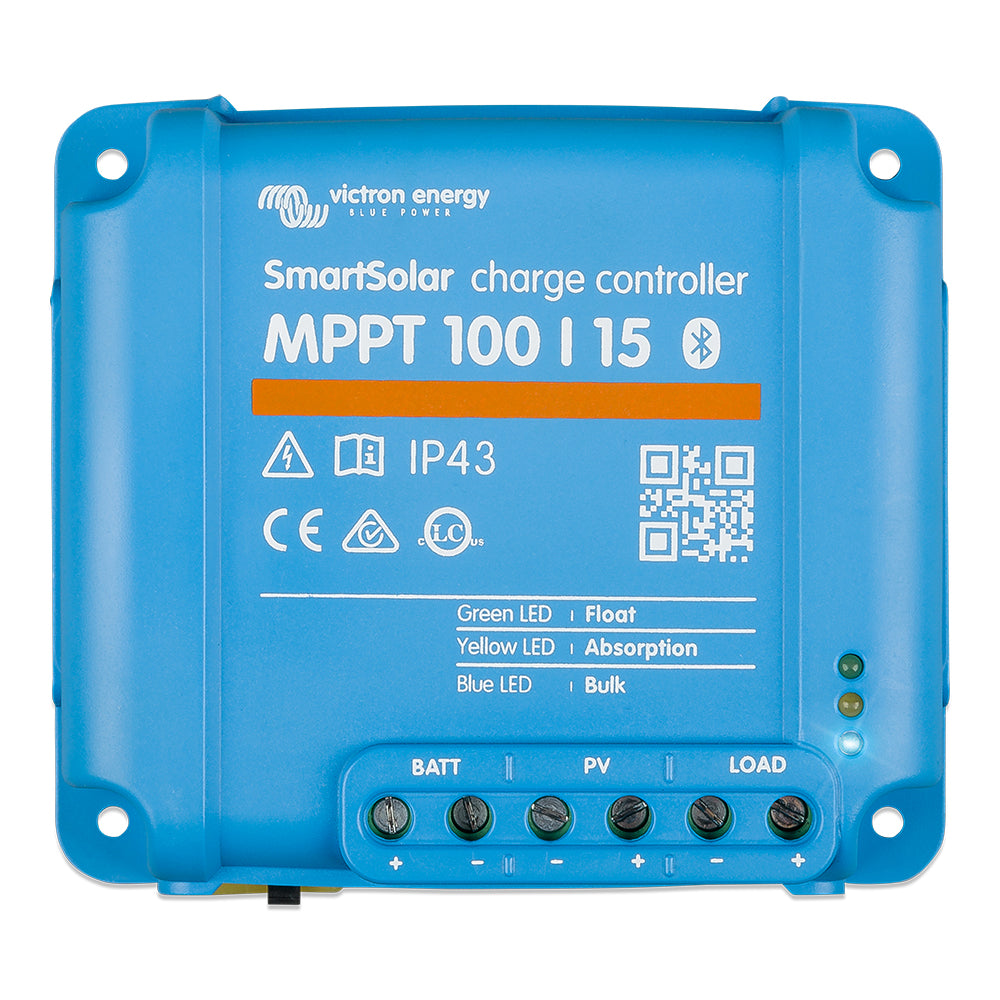

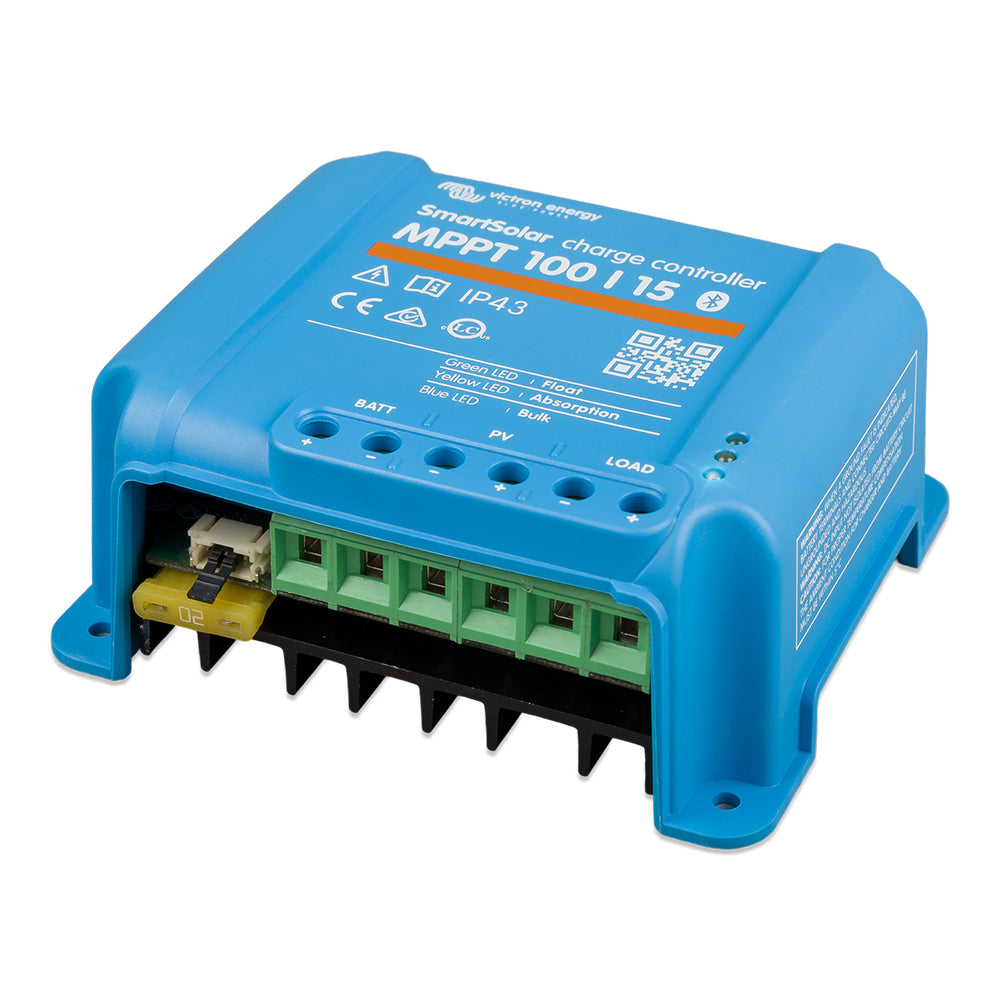

Power your off-grid solar with the Victron SmartSolar MPPT Charge Controller - 100V - 15AMP - UL Approved. This intelligent solar charger maximizes energy harvest, protects batteries, and connects seamlessly with other Victron components for a complete energy management system.
SmartSolar MPPT performance and features
- Ultra-fast MPPT technology that adapts to rapidly changing light, boosting energy harvest by up to 30% versus PWM and up to 10% versus slower MPPT controllers.
- Bluetooth Smart built-in for wireless setup, monitoring, firmware updates, and synchronization across multiple SmartSolar controllers.
- VE.Direct wired data connection to Color Control GX, other GX products, PC or devices for easy data access.
- Load output prevents over-discharge by disconnecting loads at a preset voltage; short-circuit protected.
- Battery Life intelligent management maintains battery health by optimizing the discharge/charge cycle to achieve near-full recharge regularly.
- Programmable battery charge algorithm with day/night timing and optional light-dimming controls (see software details).
- Temperature compensation internal temperature sensor adjusts absorption and float voltages; optional external sensing via Bluetooth with Smart Battery Sense or BMV-712.
- Safety and compatibility UL approved; designed to work with up to 100V solar input and 15A charging.
- Model and compatibility SCC110015060R; UPC 8719076040811; designed for Victron ecosystems with Color Control GX and other devices.
Spec at a glance
- Max Input Voltage up to 100V
- Rated Current 15A
- Connection Bluetooth Smart built-in, VE.Direct
- Protection Load output with over-discharge protection; short-circuit proof
Enhance your solar system with a controller that not only maximizes energy harvest but also extends battery life through smart management and flexible sensing options. Add a Smart Battery Sense or BMV-712 for real-time battery voltage and temperature data to your Victron network for even smarter charging.
