Description

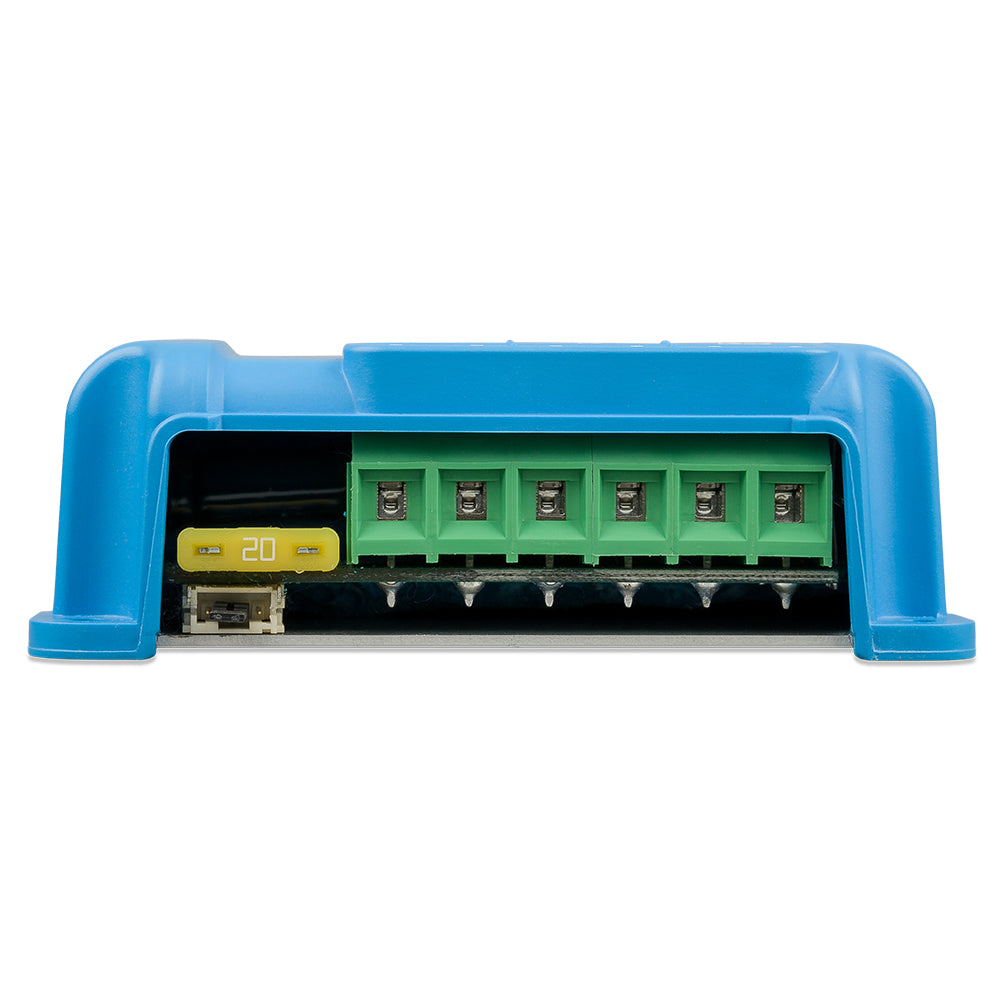

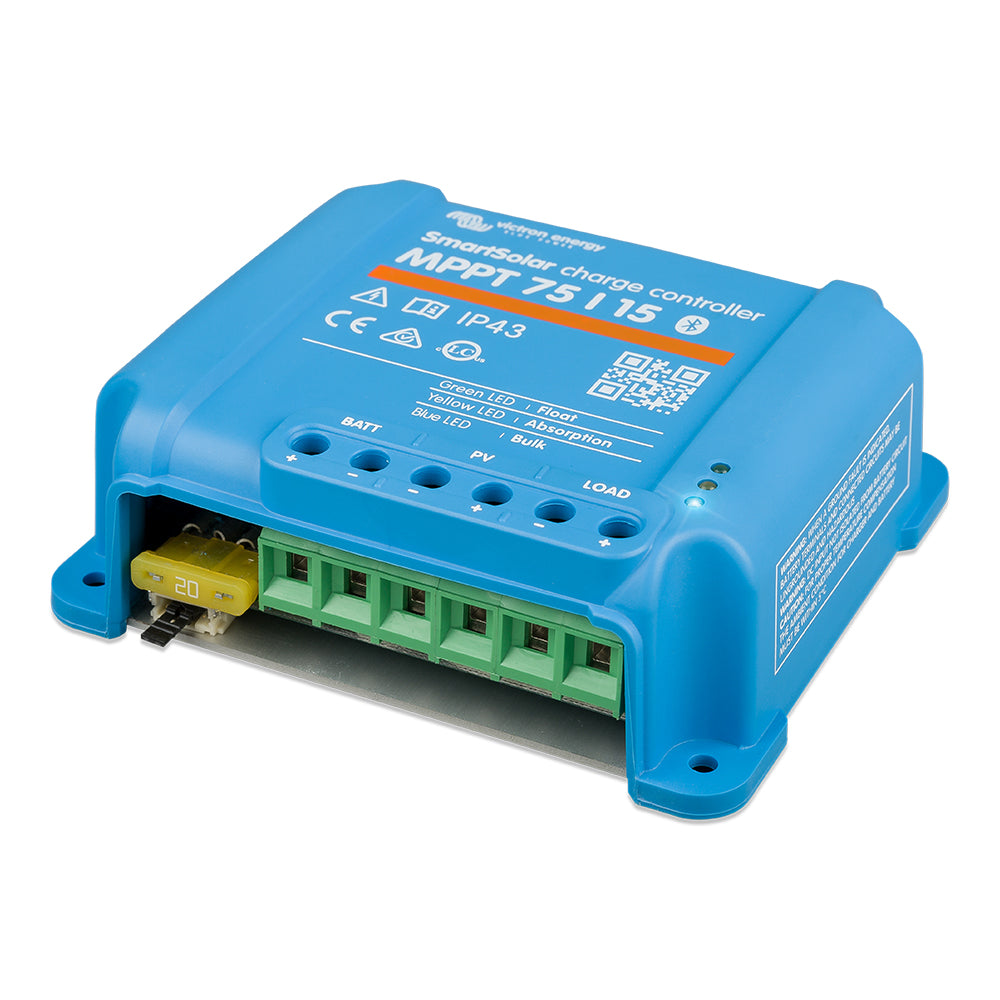

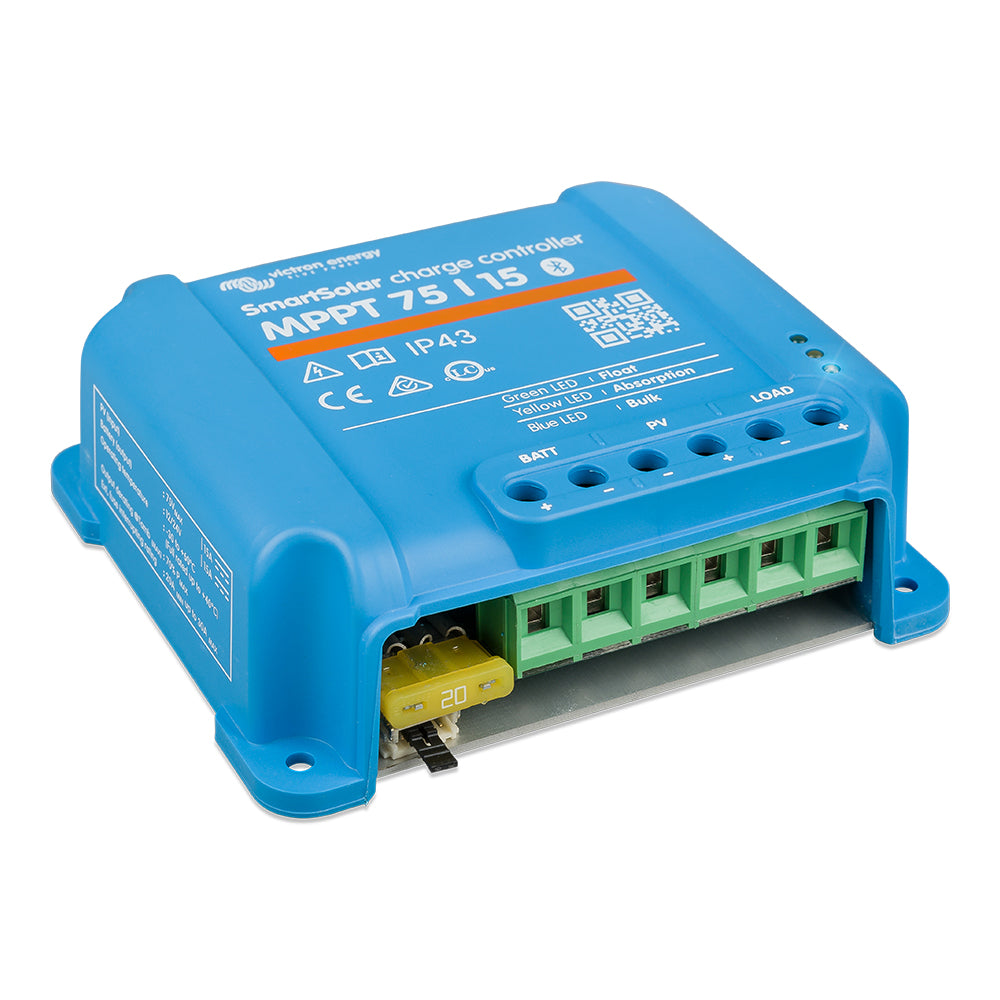

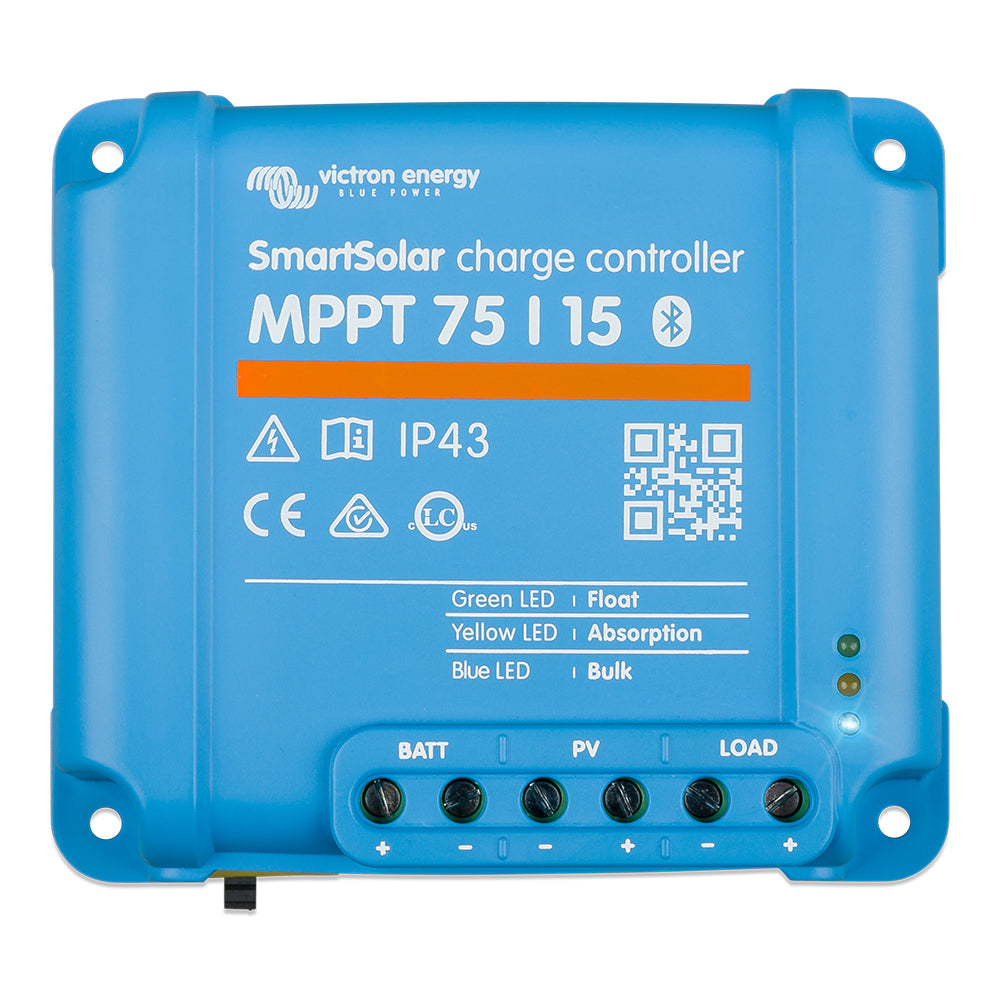

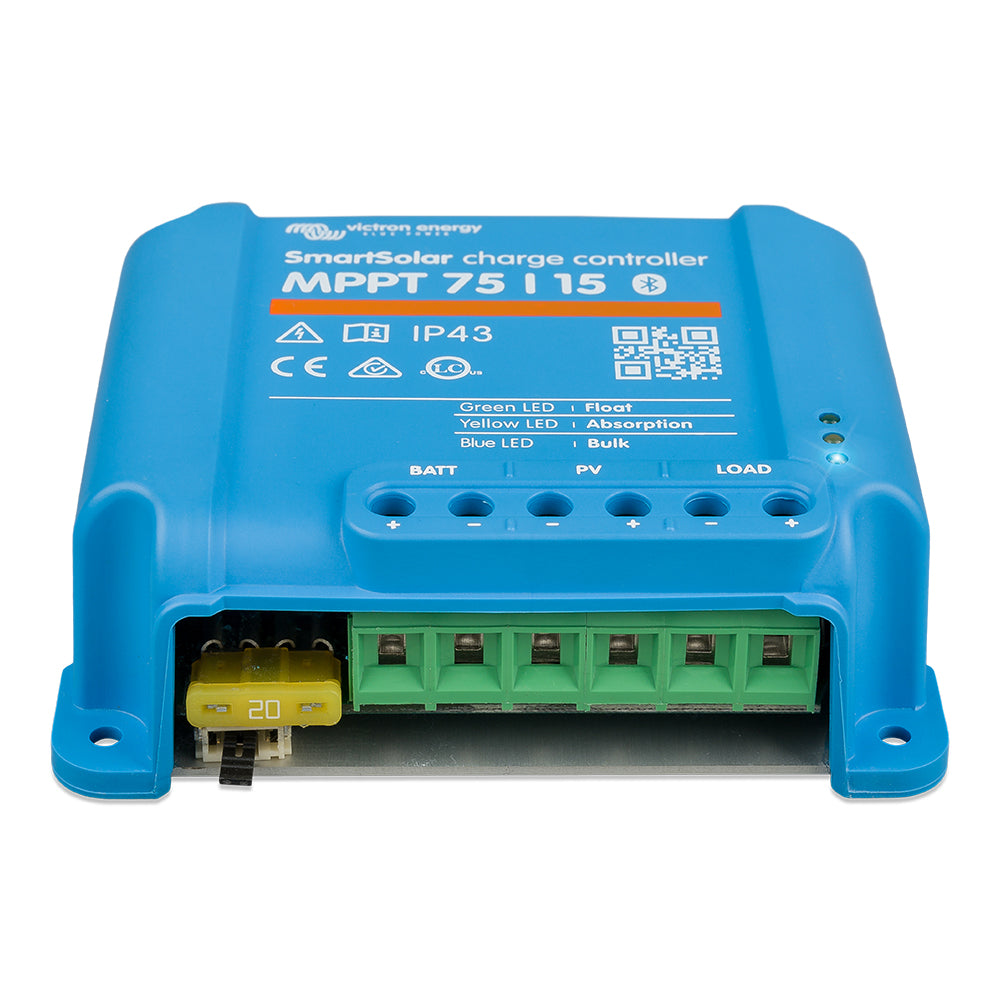

The Victron SmartSolar MPPT Solar Charge Controller is a high-efficiency power manager designed for off-grid setups, including homes, boats, RVs, and work sites. It maximizes energy harvest, protects your battery bank, and simplifies solar charging in a compact, UL‑approved 75V system.
- Voltage rating: 75V system compatibility for demanding off-grid configurations.
- Current rating: Maximum 15A charging current for efficient solar charging.
- Ultra-fast MPPT: Maximum power point tracking that rapidly adapts to changing light conditions for reliable power under variable skies.
- Energy harvest advantage: Delivers up to 30% more energy than PWM chargers and up to 10% more than slower MPPT controllers.
- Connectivity: Bluetooth Smart built-in for wireless setup, real-time monitoring, firmware updates, and synchronization with other SmartSolar devices; VE.Direct provides a wired data connection to Color Control GX, other GX products, PC or compatible devices.
- Load management: Load output prevents battery over-discharge by disconnecting loads at a preset voltage; the 48V model includes relay interfacing and short-circuit protection.
- Battery Life intelligent management: Automatically adjusts load disconnect levels to support near-full recharge at regular intervals, extending lead-acid battery life and overall system longevity.
- Programmable charging profiles: Programmable battery charging algorithm to tailor charging profiles to battery chemistry and usage patterns (details available in the software section).
- Day/night timing and dimming: Day/night timing and light dimming options to optimize charging windows and protect battery health in varying ambient conditions.
- Temperature compensation: Internal temperature sensor compensates absorption and float charge voltages for accurate charging across temperatures.
- External sensing options: Optional Bluetooth external sensing via Smart Battery Sense or BMV-712 Smart Battery Monitor to communicate voltage and temperature to one or more SmartSolar controllers.
- UL Approved: Safety compliance backed by UL certification for off-grid applications.
With this MPPT controller, you gain optimized energy harvest, smarter battery protection, and centralized control across your solar system. Bluetooth and VE.Direct connectivity enable easy setup, monitoring, firmware updates, and seamless synchronization with Color Control GX or other GX systems. Programmable charging profiles and temperature compensation help tailor charging to your battery chemistry and climate, while day/night timing and load management protect battery health and longevity. Designed for 75V systems, it provides a reliable, compact solution for reliable off-grid power in homes, boats, RVs, and work sites.
Note: California Prop 65 warning applies.
