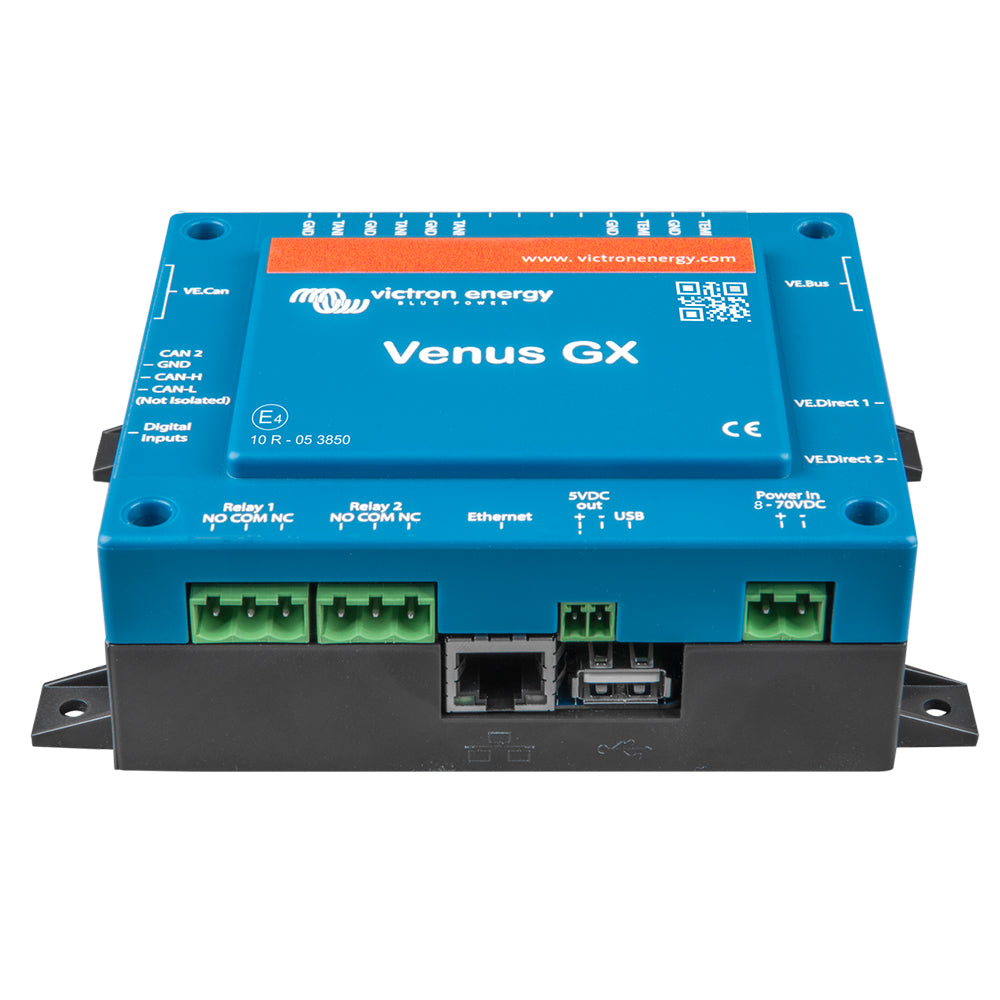

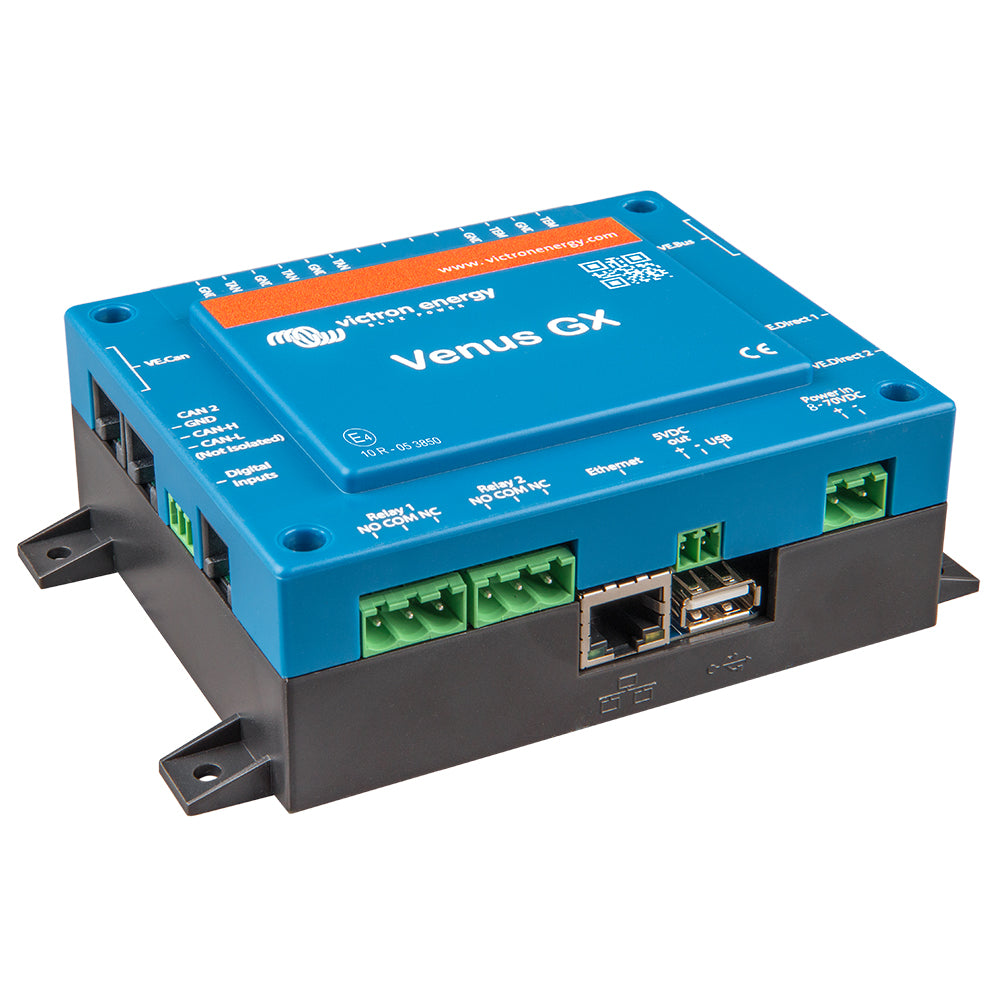

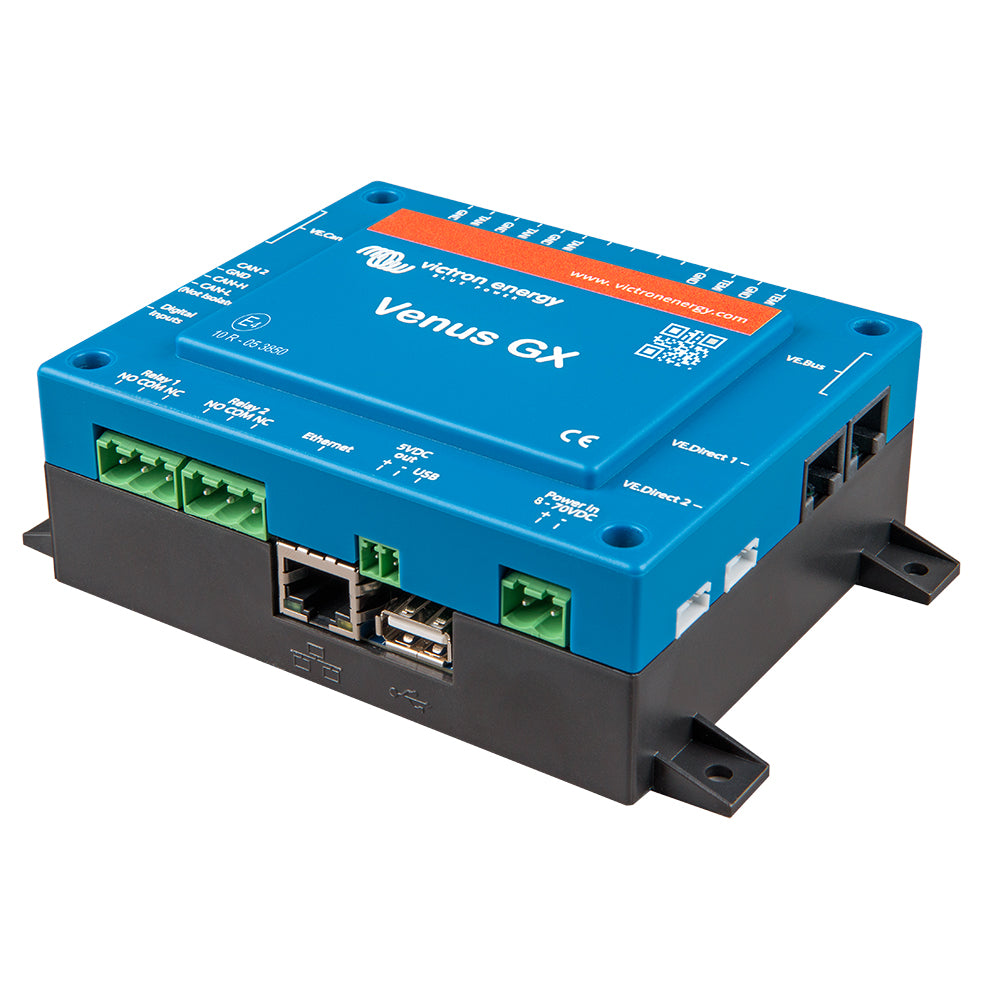

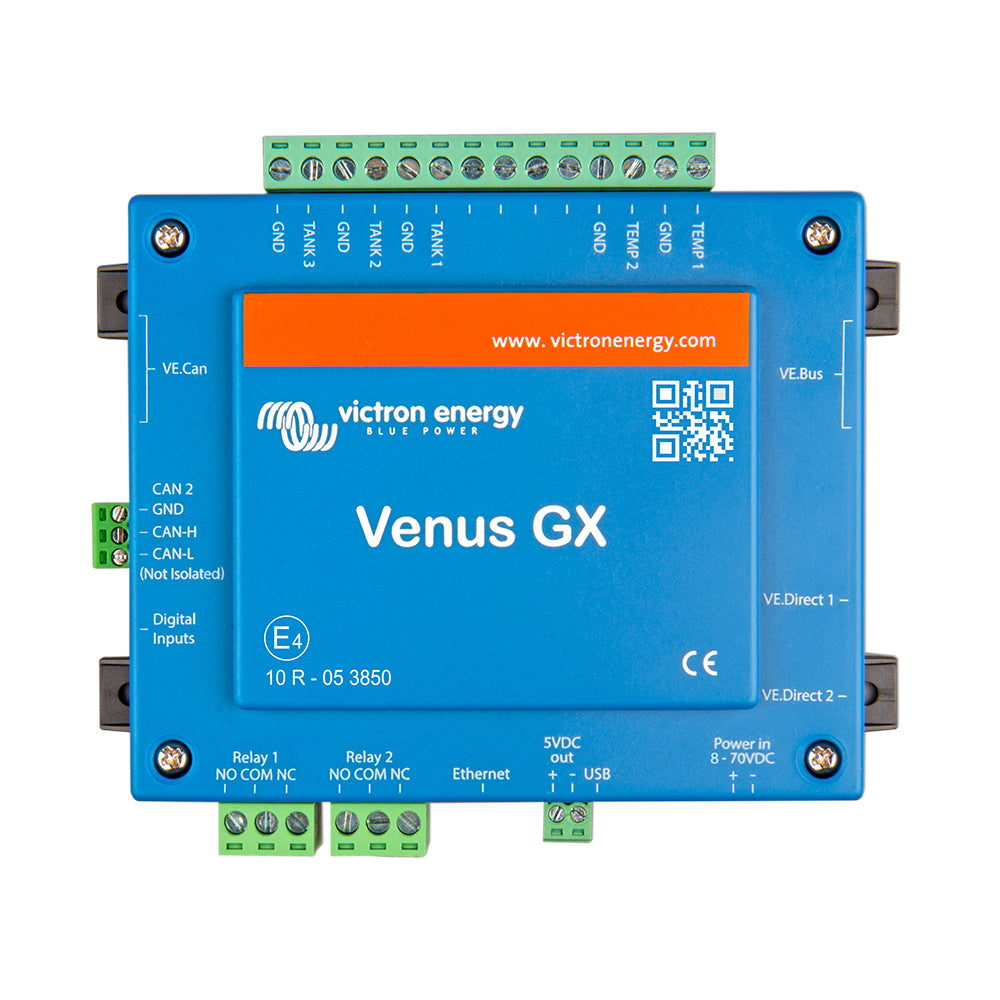

Meet the Victron Venus GX Control – No Display, a compact, smart hub that powers and monitors your entire Victron energy system without a built-in screen. Designed for seamless integration, Venus GX centralizes control, data, and remote access so you can manage complex setups with ease.
What makes Venus GX essential
-
Unified control and monitoring: Connects to a wide range of Victron components — Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt, and more — creating a single point of supervision for your entire installation.
-
VRM Online Portal: All readings are forwarded to Victron’s free remote monitoring website. Experience real-time data, historical trends, and a live view of your system from anywhere. Try the VRM demo at vrm.victronenergy.com.
-
Remote Console: Set up and monitor your Venus GX via VRM, the built-in WiFi Access Point, or on the local LAN/WiFi network — giving you flexible access options.
-
Automatic genset start/stop: A highly customizable start/stop system based on state of charge, voltage, load, and other parameters. Define quiet times and even schedule a monthly test run for reliability.
-
Data logging: When online, data is sent to the VRM Portal. If internet is unavailable, Venus GX stores data locally for up to 48 hours. Add a micro SD card or USB stick to extend storage and upload or offline analyze with VictronConnect.
-
Extensive compatibility: Supports Multis and Quattros (including split-phase and three-phase systems), EasySolar 1600VA, BlueSolar MPPT Chargers with VE.Direct or VE.Can, SmartSolar MPPT 150/70 and MPPT 150/100 with VE.Can, and more. When multiple MPPTs are used in parallel, information is synchronized into one view.
-
Versatile data inputs: Connect BMV-700/600 series directly via VE.Direct, Lynx Ion + Shunt, Lynx Ion BMS, Lynx Shunt VE.Can, Skylla-i battery chargers, NMEA2000 tank sensors, and even a USB GPS for location data synchronized to VRM.
-
Easy integration with PV inverters: Works with Fronius PV Inverters and many other components through VE.Direct/VE.Can connections and USB when needed.
Notes on configuration and access: Changing system configuration is possible remotely over the internet. If the Venus GX is disconnected, your readings remain stored locally until connection is restored.
Performance at a glance
- Remote monitoring with VRM Online Portal
- Local and remote setup via WiFi AP or LAN
- Automatic genset control based on real-time metrics
- Offline data logging with expandable storage options
- Broad compatibility with Victron products and PV inverters
This unit is designed to streamline complex configurations, giving you visibility and control without needing a dedicated display on the device itself. It’s the brains behind a reliable, scalable energy solution that grows with your needs.
Safety warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer: Victron Energy • Manufacturer Part No: BPP900400100 • UPC: 8719076037897
