Experience remote oversight and precise control with the Xantrex 808-8040-10 Remote Panel F/TC3 Chargers. This full-function remote for TRUECharge3 battery chargers expands what you can monitor and adjust beyond the onboard display, delivering a fuel-gauge-like readout of battery bank charging status and performance.
-
Remote monitoring and control — view charger output, battery bank statuses, and charging health from a convenient remote location.
-
Adjust charger output — fine-tune your charging settings to match your battery banks and system needs.
-
Read battery bank statuses — intuitive indicators that help you assess charging progress at a glance.
-
Activate quiet mode — reduce noise with a dedicated quiet mode for FCC Class B environments.
-
Easy installation — quick setup by connecting to the charger via the included telephone cable.
-
Designed for TRUECharge3 — specifically engineered for use with TRUECharge3 Battery Chargers.
Product Overview

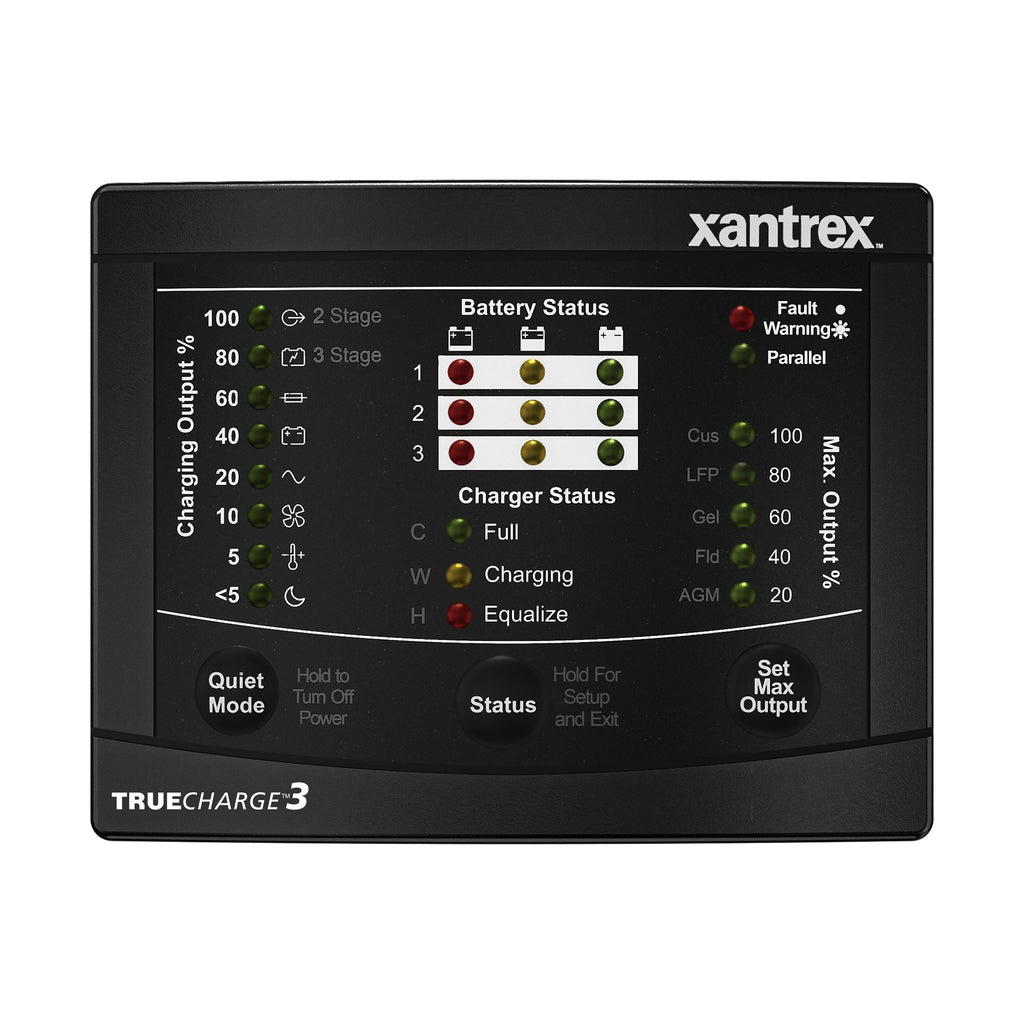

The TRUECharge3 Remote Panel reads like a fuel gauge, providing real-time insight into charging of your battery banks and enabling control that isn’t available from the charger’s onboard display. Lightweight and compact, this remote is simple to read, install, and operate, delivering essential data at a glance to help you optimize performance and battery health.
Specifications
- 808-8040-10
- LED
- < 40 mA
- < 150 mA
- 4.56 x 1.75 x 3.5 inches (114.64 x 44.39 x 89.64 mm)
- 0.44 lb (200 g)
- 32—140°F (0—60°C)
- -40—176°F (-40—80°C)
- TRUECharge3 Battery Chargers
| Electrical Specifications |
| Display |
LED |
| Off-state battery drain |
< 40 mA |
| On-state power consumption |
< 150 mA |
| Mechanical Specifications |
| Dimensions (L x W x H) |
4.56 x 1.75 x 3.5" (114.64 x 44.39 x 89.64 mm) |
| Weight |
0.44 lb (200 g) |
| Environmental Specifications |
| Operating temperature range |
32—140°F (0—60°C) |
| Storage temperature range |
-40—176°F (-40—80°C) |
