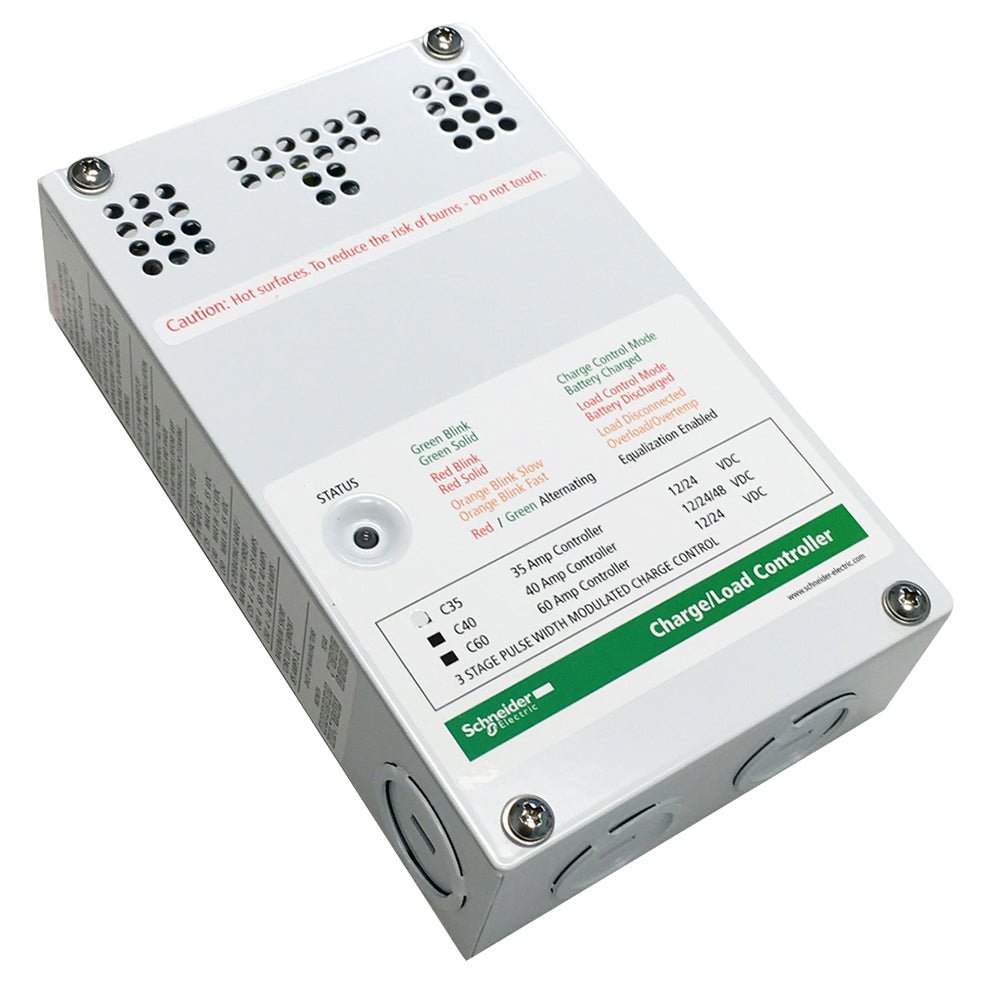

The Xantrex C-Series Solar Charge Controller is a field-configurable, solid-state solution designed to optimize PV charging, diversion, and load control for DC power systems.
-
Current rating: 35 A (C35 model)
-
Voltage configurations: Field-configurable for 12 V and 24 V operation (C35 and C60)
-
Charging method: PWM multi-stage, temperature-compensated charging
-
Control architecture: Fully solid-state, microprocessor-driven control
-
Functionality: Can function as a PV charge controller, diversion controller, or DC load controller
-
Remote monitoring: Remote display option available with cumulative amp-hours
-
Protection: Electronic protection against short-circuit, overload, and over-temperature conditions
-
Durability: Conformal-coated boards and powder-coated enclosure
-
Adjustability: Field-adjustable voltage and battery set points
-
Energy conservation: Automatically disconnects from the battery at night to conserve energy
-
Install versatility: Compatible with negative ground and ungrounded systems
-
Safety and compliance: UL and cUL listed capability for C60
-
Warranty: Two-year standard warranty
The Xantrex C-Series controller helps you maximize solar harvest while protecting your battery bank. Its field-configurable voltages, multi-stage charging, and remote-display monitoring give you precise control over how your system charges, diverts excess energy, and powers loads. With robust protections and a rugged build, it’s suitable for off-grid cabins, marine applications, RV setups, or any DC system that relies on reliable, efficient solar charging.
