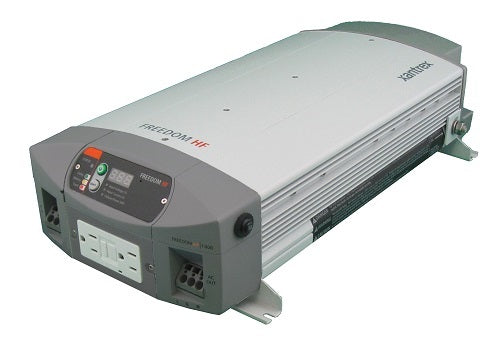

The Xantrex Freedom HF1000 is a compact 1000W inverter with a built-in 20A charger, designed for boats, RVs, trucks, and other mobile power needs. It delivers reliable AC power with intelligent battery management and quick, straightforward installation.
-
Output power: 1000W continuous, 2000W surge; 115V rms (±10%), 60Hz; Modified Sine Wave
-
Built-in charger: 20A charger (HF1000) with three-stage automatic battery charging
-
Remote monitoring: Removable digital display pre-attached with a 25-foot extension cable for easy status checks
-
Installation options: Hardwire-ready or use with included GFCI receptacles for flexible installation
-
Protection and safety: Smart transfer with a 30A relay; battery over/under-voltage, over-temperature shutdown, automatic overload protection, short-circuit protection, and ground-fault protection
-
Ignition lockout: Automatically disables the inverter when the ignition is off to minimize battery drain
-
Electrical specifications: 12V nominal, operating voltage 10.5–15.5V; low-battery cut-out 10.5V/11.8V; AC input voltage range 90–130Vac; max charge current 5A
-
Charging settings: Default bulk charge 14.2V, float charge 13.5V; supports Flooded, Gel, AGM, or fixed 13.5V battery types
-
Efficiency: Efficiency at full load >80%; peak efficiency >87%; no-load input power <10W; off-mode draw <1mA
-
Certifications: ETL certified to UL458 for mobile RV and commercial use
-
Real-world power delivery: Built to handle microwaves, TVs, small appliances, and other electronics with reliable performance in mobile environments
-
Model family: HF1000 (20A charger) variant
With the HF1000, you gain a dependable on-the-go power source that preserves your auxiliary battery and protects your gear. The removable display lets you monitor status from up to 25 feet away, while automatic transfer and comprehensive safety protections help keep your critical systems running where shore power isn’t available.
| Models | HF 1000 | HF 1055 | HF 1800 |
| Output Power | 1000w | 1000w | 1800w |
| Surge Power | 2000w | 2000w | 3600w |
| Output Frequency regulation | 60 hz | 60 Hz | 60Hz |
| Inverter Voltage Regulation | 115 +/- 10 Vrms | 115 +/- 10 Vrms | 115 +/- 10 Vrms |
| Output Wave Form | Modified Sine Wave | Modified Sine Wave | Modified Sine Wave |
| Efficiency ( Full Load) | > 80% | > 80% | > 80% |
| Peak Efficiency | > 87% | > 87% | > 87% |
| No-load input power (producing output voltage) | < 10 W | < 10 W | < 10 W |
| Off mode current draw (Display Off) | < 1 mA | < 1 mA | < 1 mA |
| | | | |
| Electrical Specifications | | | |
| Charge Rate | 20A | 55A | 40A |
| AC Input Voltage Range | 90-130Vac | 90-130Vac | 90-130Vac |
| AC Transfer Relay | 30A | 30A | 30A |
| Battery Voltage ( Nominal) | 12vdc | 12vdc | 12vdc |
| Operating Voltage Range | 10.5-15.5Vdc | 10.5-15.5Vdc | 10.5-15.5Vdc |
| Low battery Cut-out (Low Limit / High Limit) | 10.5Vdc/11.8Vdc | 10.5Vdc/11.8Vdc | 10.5Vdc/11.8Vdc |
| AC Input ( Max Charge) | 5Aac | 10Aac | 7.5Aac |
| Default Bulk Charge Voltage Setting | 14.2Vdc | 14.2Vdc | 14.2Vdc |
| Default Float Charge Voltage Setting | 13.5Vdc | 13.5Vdc | 13.5Vdc |
| Battery Charge Outputs | One | One | One |
| Charge Control | Three-stage | Three-stage | Three-stage |
| Battery Type Settings | Flooded/Gel/AGM/Fixed 13.5Vdc | Flooded/Gel/AGM/Fixed 13.5Vdc | Flooded/Gel/AGM/Fixed 13.5Vdc |
| Equalization | No | No | No |
| Internal Temperature-sensitive Charging | Yes | Yes | Yes |
| | | | |
| General Specifications | | | |
| Optimal Operating Temperature Range | 32° - 104° F | 32° - 104° F | 32° - 104° F |
| Optional Remotes | Detachable Display | Detachable Display | Detachable Display |
| Unit Weight | 10lb | 10lb | 12.8lb |
| Unit Dimensions | 4.2 x 9.5 xx 15.5" | 4.2 x 9.5 xx 15.5" | 4.2x9.5x18.0" |
| Part Number | 806-1020 | 806-1055 | 806-1840 |
