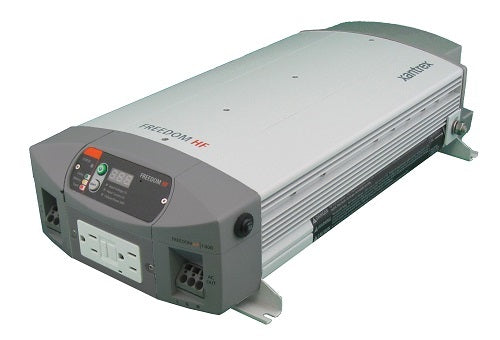

Meet the Xantrex Freedom HF1800 1800W Inverter with 40A Charger — the next generation of mobile power that brings effortless versatility to boats, RVs, and trucks. Designed for quick, clean installation and minimal battery drain, Freedom HF redefines off‑grid convenience with intelligent features like quick‑connect AC terminals and ignition lockout.
Why Freedom HF1800 Stands Out
Smallest, lightest, and most affordable inverter/charger in its class, the Freedom HF1800 delivers reliable 1800 watts of continuous power with a robust 3600W surge to handle demanding loads. Its modified sine wave output is ideal for entertainment systems, microwaves, TVs, DVD players, and other small appliances on the move.
-
Power you can trust: 1800W continuous, 3600W peak with 115V/60Hz output and a wide 10.5–15.5V operating range.
-
Effortless installation: Quick-connect AC terminals on input and output eliminate messy wiring and strain relief clamps.
-
Ignition lockout: Minimizes battery drain by disabling the inverter when the ignition is off.
-
Remote system monitoring: Removable digital display with a 25-foot extension cable for convenient status checks from anywhere on the vessel or vehicle.
-
Smart charging: Three‑stage automatic battery charger with a 40A rate to rapidly restore power from 12V sources.
-
Automatic transfer: Built‑in 30A relay smoothly switches between inverter power and incoming AC utility power.
-
Protection you can rely on: Battery over/under‑voltage, over‑temperature shutdown, automatic overload, short‑circuit, and ground‑fault protections.
-
Safety certified: ETL certified to UL458 for mobile RV and commercial applications.
What You Can Run
Designed to power demanding loads and essential entertainment systems, the Freedom HF1800 is perfect for microwaves, TVs, DVD players, and other small appliances on boats, RVs, and trucks. With its compact form factor and remote monitoring, you get reliable power where and when you need it most.
Key Model Details
-
Output: 1800W continuous, 3600W surge; 115V RMS, 60Hz; Modified Sine Wave
-
Charge Rate: 40A automatic three‑stage charger
-
AC Input/Output: Quick‑connect terminals for straightforward, clamp‑free installation
-
Battery & Operating Range: 12V nominal, 10.5–15.5V operating range; low/high voltage cutouts at 10.5V/11.8V
-
Efficiency: >80% full load, >87% peak efficiency; low idle draw to conserve battery
-
Remote Display: Pre‑attached digital display with a 25‑foot extension for easy monitoring
-
Protection & Safety: Over/under voltage, over‑temperature, automatic overload, short‑circuit, and ground‑fault protections
-
Certifications: ETL UL458 certified for use in mobile RV and commercial environments
Available in three models (HF 1000, HF 1055, HF 1800), the Freedom HF series brings flexible power options with reliable performance. Choose Freedom HF1800 when you need serious inverter capability with a strong 40A charger and effortless installation for your on‑the‑go power needs.
| Models | HF 1000 | HF 1055 | HF 1800 |
| Output Power | 1000w | 1000w | 1800w |
| Surge Power | 2000w | 2000w | 3600w |
| Output Frequency regulation | 60 hz | 60 Hz | 60Hz |
| Inverter Voltage Regulation | 115 +/- 10 Vrms | 115 +/- 10 Vrms | 115 +/- 10 Vrms |
| Output Wave Form | Modified Sine Wave | Modified Sine Wave | Modified Sine Wave |
| Efficiency ( Full Load) | > 80% | > 80% | > 80% |
| Peak Efficiency | > 87% | > 87% | > 87% |
| No-load input power (producing output voltage) | < 10 W | < 10 W | < 10 W |
| Off mode current draw (Display Off) | < 1 mA | < 1 mA | < 1 mA |
| | | | |
| Electrical Specifications | | | |
| Charge Rate | 20A | 55A | 40A |
| AC Input Voltage Range | 90-130Vac | 90-130Vac | 90-130Vac |
| AC Transfer Relay | 30A | 30A | 30A |
| Battery Voltage ( Nominal) | 12vdc | 12vdc | 12vdc |
| Operating Voltage Range | 10.5-15.5Vdc | 10.5-15.5Vdc | 10.5-15.5Vdc |
| Low battery Cut-out (Low Limit / High Limit) | 10.5Vdc/11.8Vdc | 10.5Vdc/11.8Vdc | 10.5Vdc/11.8Vdc |
| AC Input ( Max Charge) | 5Aac | 10Aac | 7.5Aac |
| Default Bulk Charge Voltage Setting | 14.2Vdc | 14.2Vdc | 14.2Vdc |
| Default Float Charge Voltage Setting | 13.5Vdc | 13.5Vdc | 13.5Vdc |
| Battery Charge Outputs | One | One | One |
| Charge Control | Three-stage | Three-stage | Three-stage |
| Battery Type Settings | Flooded/Gel/AGM/Fixed 13.5Vdc | Flooded/Gel/AGM/Fixed 13.5Vdc | Flooded/Gel/AGM/Fixed 13.5Vdc |
| Equalization | No | No | No |
| Internal Temperature-sensitive Charging | Yes | Yes | Yes |
| | | | |
| General Specifications | | | |
| Optimal Operating Temperature Range | 32° - 104° F | 32° - 104° F | 32° - 104° F |
| Optional Remotes | Detachable Display | Detachable Display | Detachable Display |
| Unit Weight | 10lb | 10lb | 12.8lb |
| Unit Dimensions | 4.2 x 9.5 xx 15.5" | 4.2 x 9.5 xx 15.5" | 4.2x9.5x18.0" |
| Part Number | 806-1020 | 806-1055 | 806-1840 |
