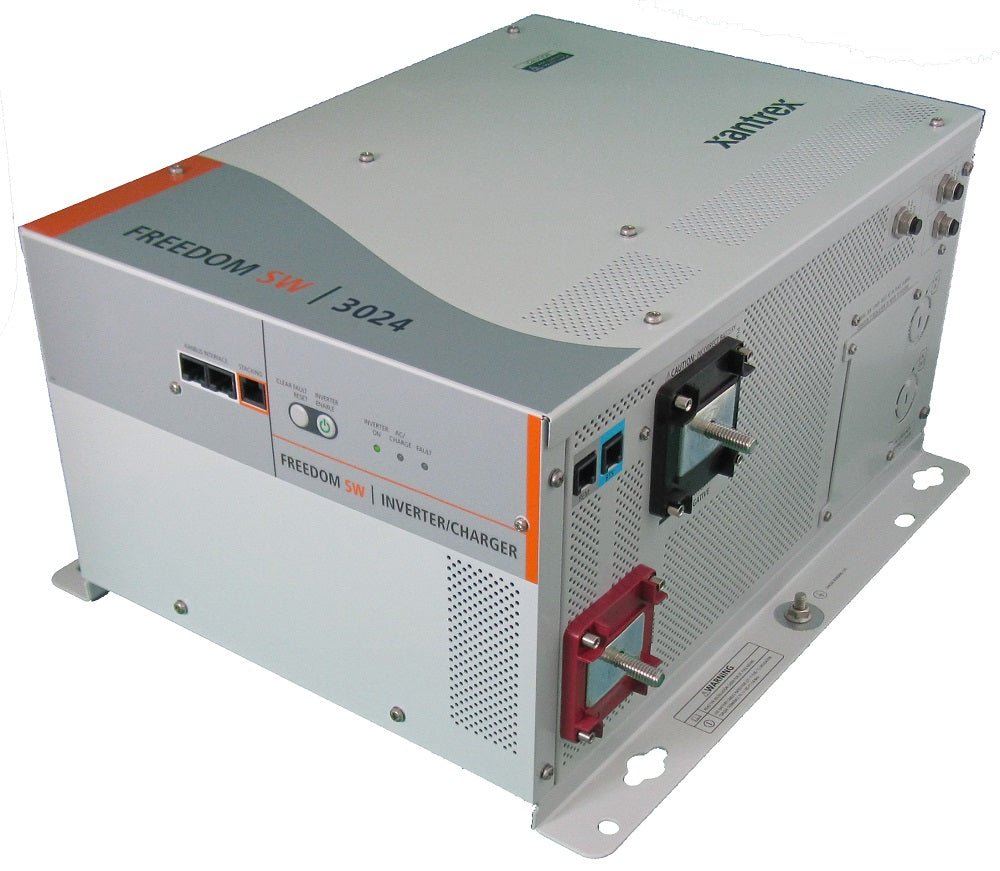

Xantrex Freedom SW3024 24v Inverter Charger

Power your off-grid lifestyle with premium AC quality from the Xantrex Freedom SW3024 24V Inverter Charger. This advanced inverter/charger combines pure sine wave output, robust charging, and flexible wiring options to meet the needs of demanding loads while protecting your battery bank.

• 3000 W continuous power with a 6000 W peak surge ensures reliable operation for motors, tools, entertainment systems, and modern electronics.
• Pure sine wave output at 120 Vac / 60 Hz provides clean, stable power for sensitive devices like TVs, computers, and robotics.
• Two stacking options: Series stacking enables operation of 240 Vac applications, and Parallel stacking doubles inverter power output for larger loads.
• Built-in transfer switch automatically switches between inverter power and incoming AC, ensuring seamless power when your shore power or generator is available.
• Advanced configuration options for customized applications, system control, and integration with optional components.
• Power factor corrected, multi-stage charging with temperature compensation delivers fast, efficient charging compatible with Flooded, Gel, and AGM batteries.
• Remote battery sensor included and remote panel compatibility for easy monitoring and tuning of your system.
• Ignition lockout helps prevent parasitic battery drain when the engine/alternator isn’t supplying power.
• Wide operating temperature range (-4°F to 104°F / -20°C to 40°C) and conformal coated circuit boards for humid environments.
• Dual input / dual output AC interface (3000W model) for flexible wiring configurations and easier installation.
• Compatible with Xantrex Automatic Generator Start (sold separately) to automate start/stop of a generator based on system needs.
• Compliance with CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements for safe operation in marine and mobile environments.
• Charger specifications: 75 A current, 24 Vdc output, and 12–32 Vdc input range with a 3-stage charging system and remote battery sensor, delivering efficiency > 85% (charging).
• Electrical fundamentals: Inverter 120 Vac output, ac input 120 Vac (85–140 Vac range) with 0.95 pf charging input power factor and input current ~22 A rms for maximum charging.
• Ratings and transfer: Transfer relay rated for 2 legs at 30 A each with transfer time < 20 ms, preserving critical loads during switchover.
• Battery compatibility: designed for Flooded, GEL, and AGM batteries to suit a wide range of installations.

Designed for RVs, boats, cabins, and other off-grid setups, the Freedom SW3024 delivers reliable, utility-grade power in a compact 24 V solution. Its combination of pure sine wave output, robust charging, flexible stacking, and smart features makes it a standout choice for anyone needing dependable power anywhere you go.
