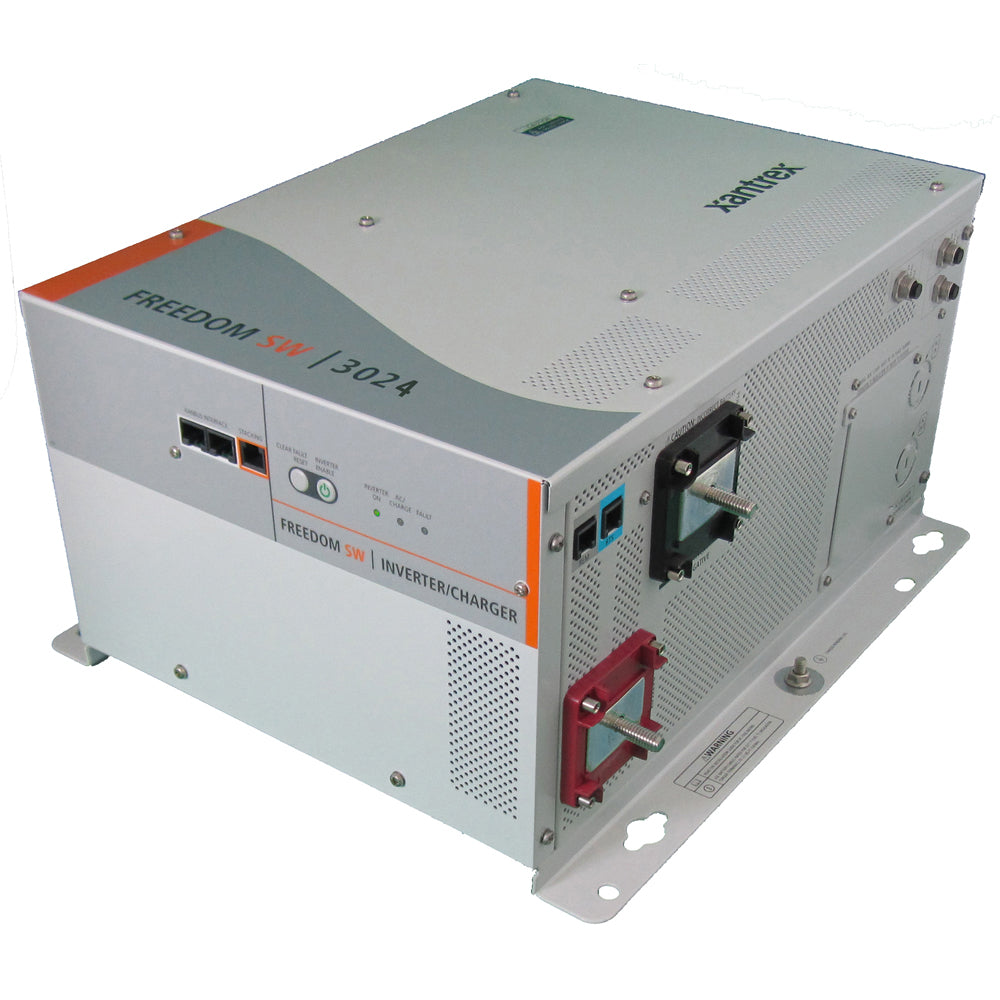

Xantrex Freedom SW3024 Inverter/Charger - 3000W - 24V

Xantrex Freedom SW3024 Inverter/Charger — 3000W, 24V delivers dependable, clean power for mobile and off‑grid systems, converting 24V DC to 120V AC at 60 Hz with a pure sine wave that protects sensitive electronics. Designed for versatility, this powerhouse is ideal for recreational vehicles, marine vessels, emergency fleets, and demanding remote deployments.

The Freedom SW3024 is the second‑generation 3000 watt inverter/charger redesigned to include many features from Xantrex’s high‑power line. It’s equipped with a robust 150 A charger and supports advanced configuration options for customized installations, ensuring reliable power where you need it most.

Key features

• Pure sine wave output for smooth operation of sensitive electronics and appliances
• Power factor corrected, multi‑stage charger with temperature‑compensated charging for optimal battery health
• Automatic transfer switch quickly shifts between inverter power and incoming AC (less than 10 milliseconds on power loss)
• Generator Support Mode to supplement a generator when loads exceed capacity
• Parallel and series stacking to double AC output or create 120/240 V split‑phase configurations
• Dual input / Dual output AC interface (3000 W model) for flexible wiring and installation
• Ignition lockout to prevent unnecessary battery drain when the engine or alternator isn’t providing power
• Wide operating temperature range (-4°F to 140°F / -20°C to 60°C) and conformal coated circuit boards for humid environments
• Ability to charge batteries even when deeply discharged, with high‑efficiency charging
• Compatibility with Xantrex Automatic Generator Start (AGS) for automated operation
• Protection including battery over‑voltage/under‑voltage, over‑temperature, automatic overload, short‑circuit protection, and integrated resettable AC breakers
• UL458 with marine supplement, CSA, ABYC, and FCC Class B certifications for marine and mobile use

Specifications and versatility

Output: 120 VAC / 60 Hz, 3000 W (continuous) with 150 A charger
Battery type compatibility: Supports a wide range of lead‑acid and deep‑cycle batteries with intelligent charging

Applications

Engineered for a broad spectrum of mobile power needs—recreational vehicles, commercial fleets, marine vessels, construction equipment, emergency response units, and military applications—where reliable, clean power and smart charging matter most.
