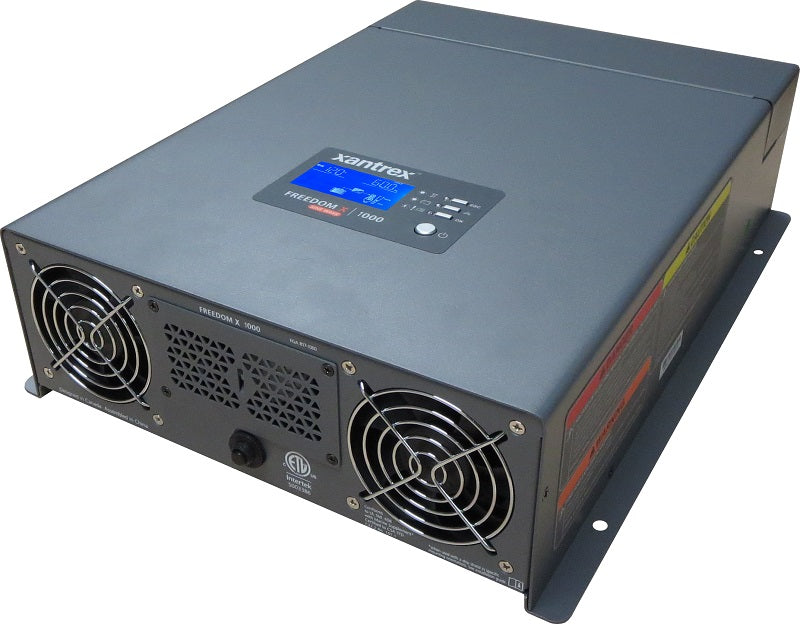

Xantrex Freedom X1000 1000W True Sine Wave Inverter

The Xantrex Freedom X1000 is a compact 1000W true sine wave inverter designed for RVs, boats, and off‑grid setups. It delivers clean, stable 120 VAC power to sensitive electronics and motor loads, with easy installation and reliable performance in varied environments.

• True Sine Wave Output: 60 Hz true sine wave delivering clean, stable 120 VAC power for sensitive electronics and motor loads.
• Power and Surge: 1000 W continuous power with a 2000 W surge capacity for brief startup bursts (refrigerators, microwaves, and other demanding appliances).
• Ignition Control: Turns on/off via a 12 VDC signal to prevent battery drain when the vehicle ignition is off.
• Wide Input Range: 10–18 VDC input to accommodate high‑voltage alternators and varied battery states.
• Automatic Transfer Relay: Built‑in 30 A transfer relay automatically switches between inverter power and outside AC power (shore or generator), with seamless transfer to charge mode when AC is available.
• Easy Installation: Large wiring bay and quick‑connect AC IN/OUT terminals for fast, hassle‑free wiring; compact footprint for flexible mounting.
• Rugged, Climate‑Ready Design: Delivers full power from -4°F to 104°F (-20°C to 40°C) and derates above 104°F for reliability in hot environments; suitable for a wide range of conditions.
• High Efficiency: Peak efficiency up to 91% and full‑load efficiency of at least 87%, helping maximize runtime on battery power.
• Compact Footprint: Dimensions 14.2" x 10.6" x 3.7" (360 mm x 270 mm x 95 mm) for premium performance in a portable form factor.
• What’s in the Box: Freedom X unit, pre‑installed ground lug, and documentation.
• Operating Voltage (AC): 120, 110, 108 VAC for compatibility with a range of shore power supplies.
• Nominal Input Voltage: 12 VDC, designed for typical automotive and marine battery systems.

With the Freedom X1000, you gain reliable, clean power wherever you need it. The true sine wave output protects sensitive devices from electrical noise, while the 1000 W rating handles common RV, boat, and off‑grid appliances, with generous startup surge for instant loads. The ignition control and automatic transfer relay simplify operation and prevent battery drain, so you can rely on your systems without constant manual adjustments. The wide input range and robust temperature tolerance mean steady performance across varied vehicle electricals and climates. Its compact size, easy wiring, and efficient operation help you maximize runtime between charges, whether you’re parked at a marina, in a remote campsite, or cruising off the grid.
