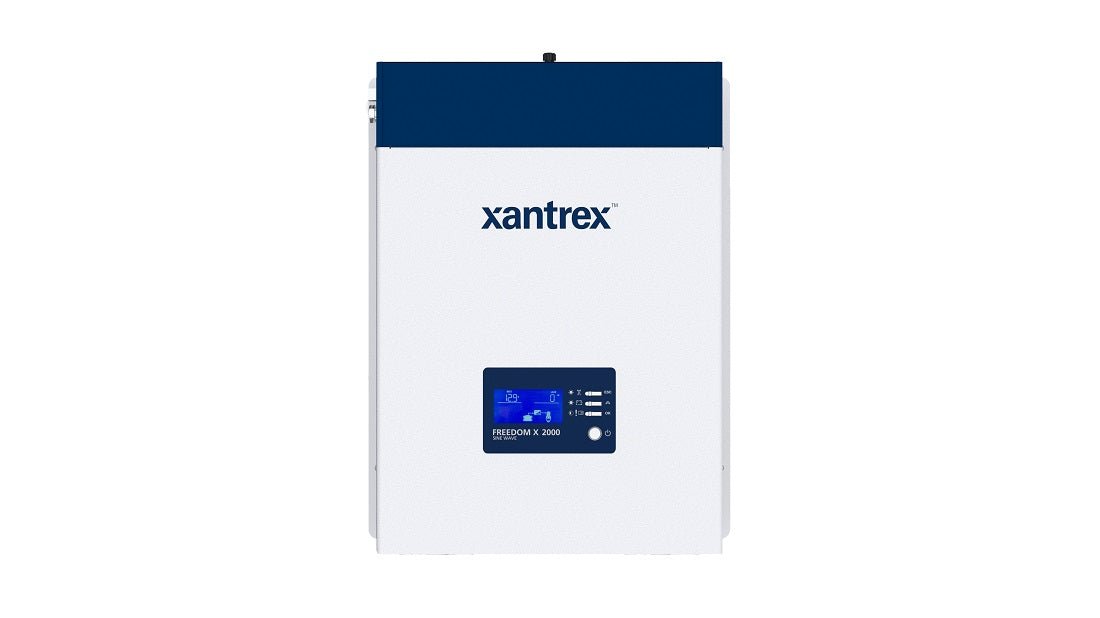

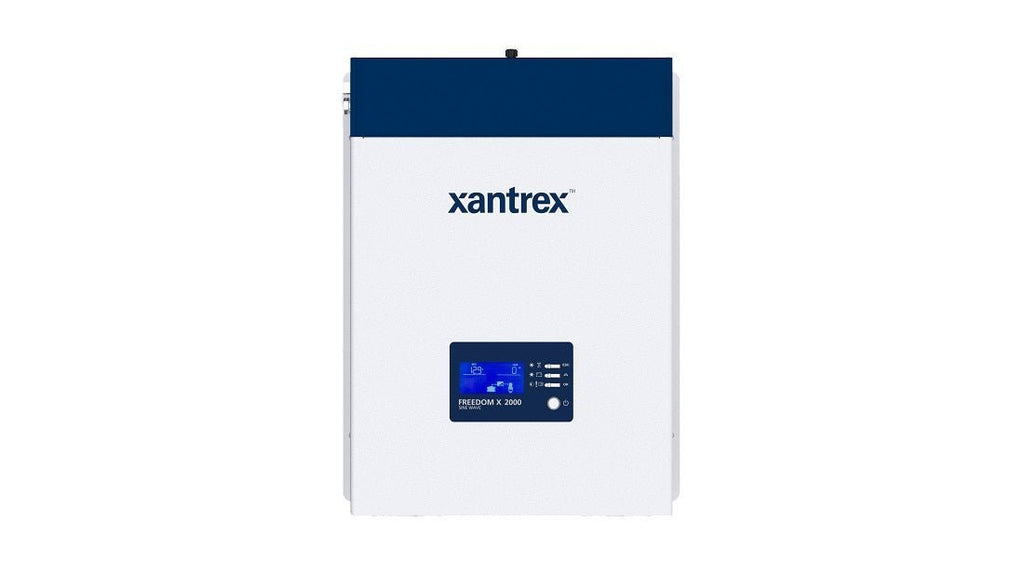

Meet the Xantrex Freedom X2000-12: a 2000W true sine wave inverter designed for RVs, boats, and off-grid setups. Its compact, lightweight form delivers clean, reliable AC power for refrigerators, microwaves, laptops, medical devices, and other sensitive equipment—even during motor starts.
-
Continuous Power: 2000 W at 40°C with True Sine Wave output for smooth operation of refrigerators, microwaves, laptops, medical devices, and other sensitive equipment.
-
Surge Power: 4000 W (> 2 seconds) to start motors and handle short bursts.
-
AC Output Voltage Options: 220/230/240V to match regional standards.
-
DC Input Range: 10.0–17.0 V to work with a wide range of battery banks and vehicle alternators.
-
Ignition Control: Activate/inhibit the inverter via a 12 VDC signal to minimize battery drain when the engine is off.
-
Transfer Relay: Built-in 30 A AC transfer relay (24 A continuous) automatically switches between inverter power and incoming AC power.
-
Under-Voltage Protection: Programmable AC under-voltage shutdown (170–220 V) to protect connected equipment during weak shore power.
-
Configurable Frequency: Supports 50 Hz or 60 Hz to match regional power standards.
-
Bluetooth Monitoring: Optional remote panel (808-0817-02) provides convenient system tuning and status checks.
-
Operating Environment: -20°C to 60°C with derating above 40°C for reliable performance in varied climates.
-
Physical Dimensions & Weight: 370 mm × 275 mm × 100 mm (without flanges); 370 mm × 305 mm × 100 mm (with flanges); net weight 7.2 kg.
-
Safety & Compliance: CE, RoHS, marine installation options; drip shield available for additional protection.
-
Use Case: Designed for recreational and commercial applications, delivering premium performance in a lightweight package.
-
What’s in the Box: Freedom X 2000 230V inverter, documentation, one set of plastic bushings for large DC cables, one pre-installed DC earth enclosure lug, and one bonding screw.
This inverter delivers clean, stable power with true sine wave output, making it suitable for sensitive electronics and motor loads. Its broad DC input range, ignition control, and automatic transfer to shore power simplify installation and operation, while optional Bluetooth monitoring provides easy remote tuning and status checks. Built to perform across a wide temperature range and in marine environments, the Freedom X2000-12 is a dependable choice for both recreational and commercial power needs.
| ELECTRICAL SPECS - INVERTER |
| AC Output Operating Voltage Options |
220/230/240V |
| Continuous Output Power |
Continuous Power 2000 W @40 C True sine wave (TSW) |
| Continuous AC Output Current |
8.3 A |
| Surge Power |
4000 W (> 2 sec) |
| Frequency (Configurable) |
50 Hz (or 60 Hz) |
| DC Input Operating voltage range |
10.0 - 17.0 V |
| DC Input Max Non-Operating Voltage |
25.2 V |
| DC Input Nominal Voltage (inverting) |
12.0 V |
| DC Nominal Current at Full Load |
192 A |
| Peak Efficiency |
91% |
| Full Load Efficiency |
> 87.5% |
| GENERAL SPECS |
| Operating Temperature Range |
-20 to 60 C, with output derated above 40 °C |
| Storage Temperature Range |
-40 to 70 C |
| Operating Humidity Range |
5 to 95% RH, non-condensing |
| Operating Input AC Pass-Through Voltage Range |
170-280V |
| Safe Non-Operating Input AC Voltage Range |
Up to 300V |
| Transfer Relay AC Current Rating |
30 A, 24 A continous |
| L x W x H (without flanges) |
370 mm x 275 mm x 100 mm |
| L x W x H (with flanges) |
370 mm x 305 mm x 100 mm |
| Net Weight |
7.2 kgs |
| REGULATORY APPROVALS |
| Safety |
CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050) |
| EMC |
CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant |
| Environmental |
CE Marking, RoHS Directive Compliant |
