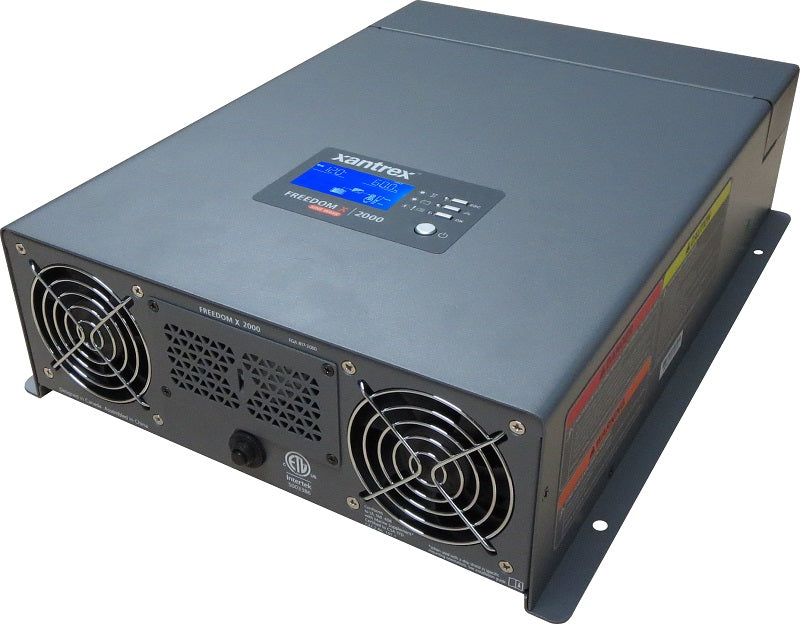

Meet the Xantrex Freedom X2000, a 2000 W true sine wave inverter built for RVs, boats, and off-grid homes that demand reliable, clean power from a 12 V battery bank. Model 817-2000 delivers stable AC for sensitive electronics and motor loads, with an extended surge rating that tackles tough starts like refrigerators and microwaves—all while smart ignition control helps minimize battery drain when your vehicle is off.
-
True Sine Wave Output: Delivers clean, stable power ideal for sensitive electronics and motor loads, protecting devices and extending their life.
-
2000 W Continuous Power with 4000 W Peak Surge for up to 2 seconds to handle demanding transients.
-
Ignition Control: Turn the inverter on/off via a 12 VDC signal to minimize battery drain when the ignition is off.
-
Wide Input Range: 10–18 VDC input ensures reliable operation on high-voltage alternators found in many modern vehicle chassis.
-
Built-in 30 A Transfer Relay: Senses when external AC power is present and transfers the load from the inverter to shore or generator, automatically switching back to invert or charge mode as needed.
-
Quick Installation: Large wiring bay and quick-connect AC IN/OUT terminals for fast, simple wiring.
-
Extended Operating Range: Operates from -4°F to 104°F (-20 to 60°C) with derating above 104°F to protect performance.
Specifications
- Electrical
- Operating voltage: 120, 110, 108 VAC
- Continuous power: 2000 W @ 40°C
- Continuous current: 16.7 A
- Surge power: 4000 W
- Frequency: 60 Hz
- Peak efficiency: 91%
- Full load efficiency: ≥87%
- Operating voltage range: 85–140 VAC
- Safe non-operating voltage range: Up to 240 VAC
- General
- Operating temperature range: -4 to 140°F (-20 to 60°C); derates above 104°F (40°C)
- Storage temperature range: -40 to 158°F (-40 to 70°C)
- Humidity: 5–95% RH, non-condensing
- Transfer relay rating: 30 A
- Low/battery cutoff voltage (LBCO): 18.0 VDC
- Maximum non-operating voltage: 24.0 VDC
- Nominal voltage (inverting): 12 VDC
- Nominal current at full load: 192 ADC
- Dimensions: 15.4" (390 mm) × 10.8" (275 mm) × 4.0" (102 mm)
What’s in the Box
- Freedom X unit
- Plastic bushings for large DC cables
- Pre-installed ground lug
- Documentation
| Electrical Specifications |
| Operating voltage |
120, 110, 108 VAC |
| Continuous power |
Continuous Power 2000 W @40 C True sine wave |
| Continuous current |
16.7 Amps |
| Surge power |
4000 watts |
| Frequency |
60 Hz |
| Peak efficiency |
91% |
| Full load efficiency |
Greather than or equal to 87% |
| Operating voltage range |
85-140 VAC |
| Safe Non-Operating voltage range |
Up to 240VAC |
| General Specifications |
| Operating temperature range |
-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range |
-40 to 158 F (-40 to 70 C) |
| Humidity |
5 to 95% RH, non-condensing |
| Transfer Relay Rating |
30Amp |
| Operating voltage range |
LBCO voltage - 18.0 VDC |
| Maximum Non-Operating Voltage |
24.0 VDC |
| Nominal Voltage (Inverting) |
12 VDC |
| Nominal Current at Full Load |
192ADC |
| Dimensions |
15.4"(390mm) x 10.8"(275mm) x 4.0"(102mm) |
