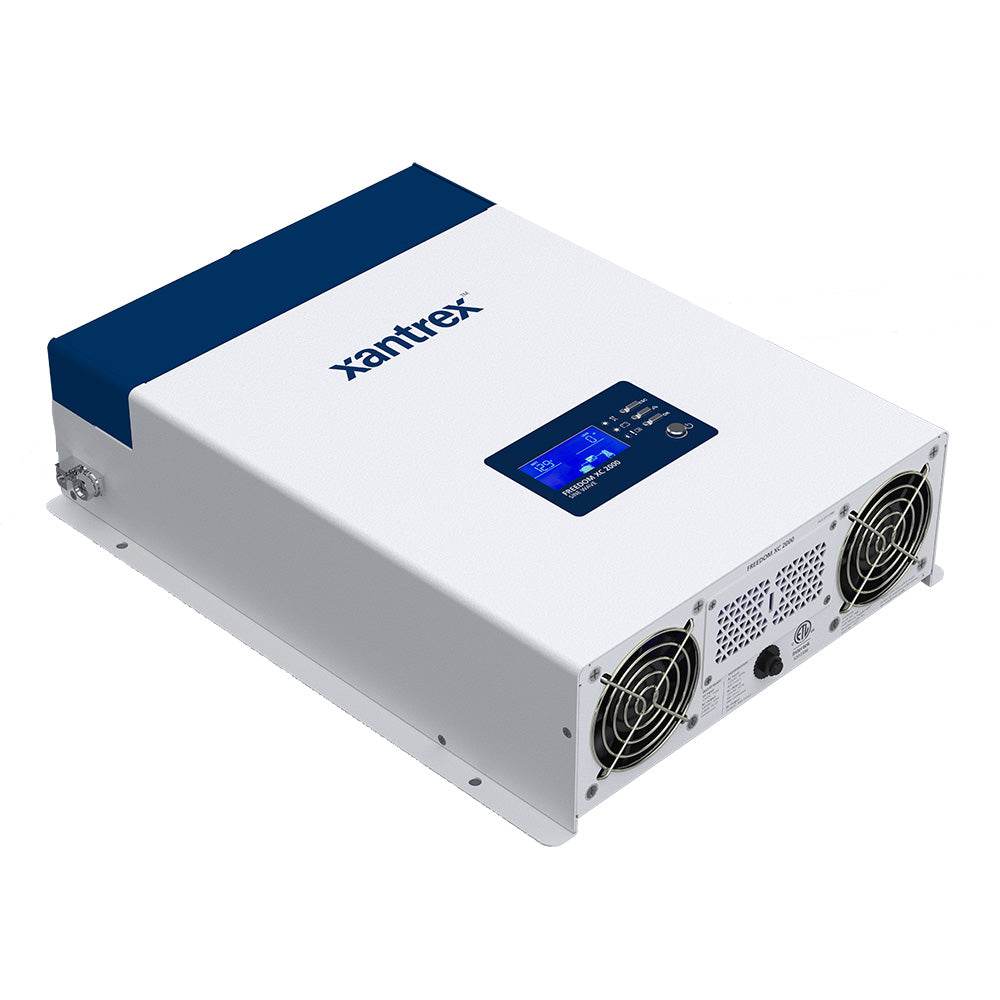

The Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger converts a 12V battery bank into clean 120V AC power for RVs, boats, and off-grid setups. This rugged, compact unit delivers reliable power with advanced charging to protect batteries and sensitive electronics in demanding environments.
-
Power and Surge: 2000W continuous power with an extended surge up to 2X for 2 seconds to handle high-inrush loads.
-
True Sine Wave Inverter/Charger: 12 VDC input to 120 VAC output, providing clean, stable electricity for sensitive electronics and motor loads.
-
Built‑In 30A AC Transfer Relay: Automatically senses external AC power and transfers the load between inverter and shore/generator, while switching between invert and charge modes as needed.
-
Ignition Control: Turn the inverter on/off via a 12 VDC signal to minimize battery drain when the vehicle or system is off.
-
Wide DC Input Range: 10–18 VDC input range to ensure reliable operation on high‑voltage alternators found on newer vehicle chassis.
-
AC Under‑Voltage Shutdown: Programmable 85–110 VAC shutdown helps protect equipment when shore power is weak or unstable.
-
Built‑In Charger with Power Factor Corrected Multi‑Stage Charging: Efficient charging that frees up AC for devices and reduces the likelihood of tripping breakers.
-
Three‑Stage Temperature‑Compensated Battery Charging (up to 18V): Optimizes charging for almost any battery type, boosting efficiency and battery life.
-
Battery Equalization: Periodic equalization tuning maximizes flooded battery lifespan.
-
Dead Battery Charging: Recovers deeply discharged batteries down to 0 Vdc to extend system uptime.
-
Power Share: Prioritizes AC loads by reducing charge current to keep total input current under the breaker rating, maximizing usable AC power.
-
Compact, Lightweight, Rugged Design: Built for rugged use and easy installation in tight spaces across climates.
-
Operating Temperature Range: Functions from -4°F to 104°F to support diverse environments.
-
Ideal Applications: Recreational vehicles, boats, off‑grid cabins, and remote job sites.
-
Prop 65 Warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Di‑isodecyl Phthalate (DIDP), known to the State of California to cause cancer and reproductive harm; more information at P65Warnings.ca.gov.
The Freedom XC 2000 delivers reliable 120V power from a 12V battery bank while intelligently managing charging to maximize efficiency and battery life. With true sine wave output, a built‑in transfer relay, ignition control, and multi‑stage charging, it offers a practical, adaptable solution for mobile and off‑grid power needs in RVs, boats, and remote locations.
