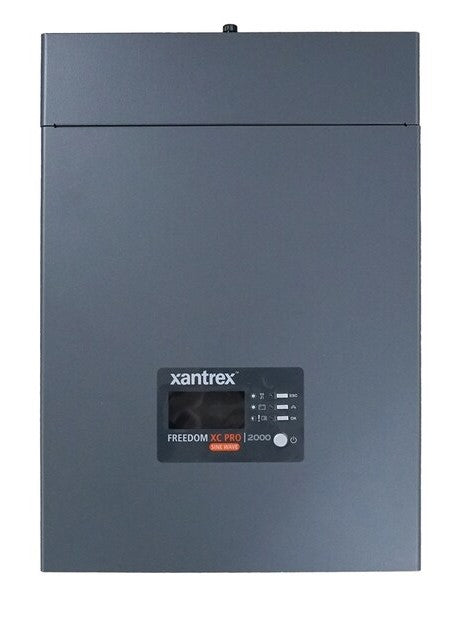

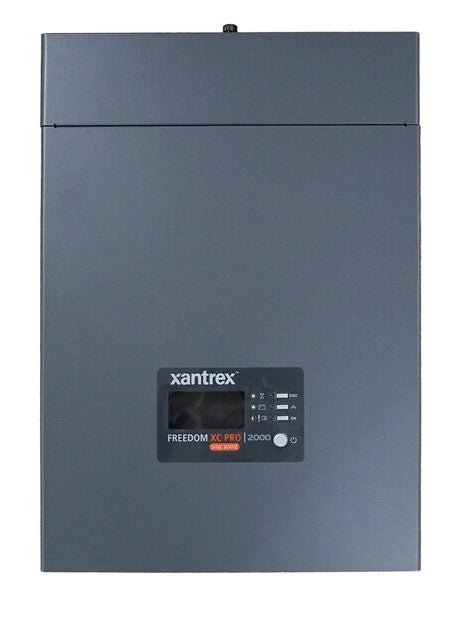

The Xantrex Freedom XC PRO 2000 is a 12 V DC input to 120 V AC output inverter charger designed for RVs, boats, and off-grid vehicles. It delivers true sine wave power up to 2000 W with a built-in 100 A charger for flexible energy management wherever you travel.
-
True Sine Wave Power: 2000 W continuous power with a 4000 W surge for up to 5 seconds, ensuring smooth operation of sensitive electronics and motor loads.
-
Integrated 100 A Battery Charger: Built-in charging capability to replenish house batteries efficiently with programmable charging options for versatile power management.
-
Configurable AC Output and Frequency: 120 V operation configurable to 110 or 108 VAC, with 60 Hz or configurable 50 Hz to match regional requirements.
-
Wide Operating Range and Efficiency: Operates from -4°F (-20°C) to 104°F (40°C); peak efficiency up to 91% and full-load efficiency ≥ 86%.
-
Advanced Battery Management: Programmable 3-stage, temperature compensated charging up to 18 V, Battery Equalization, and Dead Battery Charging down to 0 VDC for easier recovery.
-
Powerful Control and Integration: Power Share to prioritize AC loads, Ignition Control to turn the inverter on/off via a 12 V signal, and support for RV-C and J1939 protocols for seamless vehicle integration.
-
Flexible Input/Output and Protection: Wide DC input range 10.1–18.0 VDC; AC pass-through 85–140 VAC; Safe non-operating input range up to 240 VAC RMS; transfer-relay protection with 30 A surge and 24 A continuous.
-
Additional Performance Features: Extended surge rating enables reliable starting for air conditioners and refrigerators; Power Factor at Full Charge Rate > 98% for efficient energy use.
With the Freedom XC PRO 2000, you gain dependable true sine wave power wherever you travel—whether parked, afloat, or off-grid. The built-in charging system, advanced charging profiles, system integration capabilities, and protective features work together to keep essential devices running smoothly while optimizing battery health and overall energy management.
| Inverter Specifications |
| AC Output Operating Voltage Options |
120, 110, 108 Vac |
| Continuous Output Power |
Continuous Power 2000 W @40 C True sine wave (TSW) |
| Continuous AC Output Current |
16.7A |
| Surge Power |
4000 W ( ≤5 sec) |
| Frequency (Configurable) |
60 (or 50) Hz |
| Peak Efficiency |
91% |
| Full Load Efficiency |
≥ 86% |
| Operating Input AC Pass-Through Voltage Range |
85-140 Vac |
| Safe Non-Operating Input AC Voltage Range |
Up to 240 Vac RMS |
| Power Factor at Full Charge Rate |
> 98% |
| Battery Charger Specifications |
| Min Battery Voltage for Charging |
0.0 Vdc |
| Max DC Output Voltage |
18.0 Vdc (custom battery type) |
| Selectable DC Output Current |
User Selectable: 5 - 100 A |
| Full Load Max AC Input Current |
24 Arms |
| Max DC Charge Current |
10A |
| General Specifications |
| Operating Temperature Range |
4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range |
-40 to 158 F (-40 to 70 C) |
| Operating Humidity Range |
5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating |
30 A surge, 24 A continous |
| DC Input Operating voltage range |
10.1 - 18.0 VDC |
| DC Input Max Non-Operating Voltage |
25.2 Vdc |
| DC Input/Output Nominal Voltage (inverting/ Charging) |
12.0 Vdc |
| DC Nominal Current at Full Load |
192Adc |
| L x W x H (without flanges) |
5.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm) |
| L x W x H (with flanges) |
16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm) |
