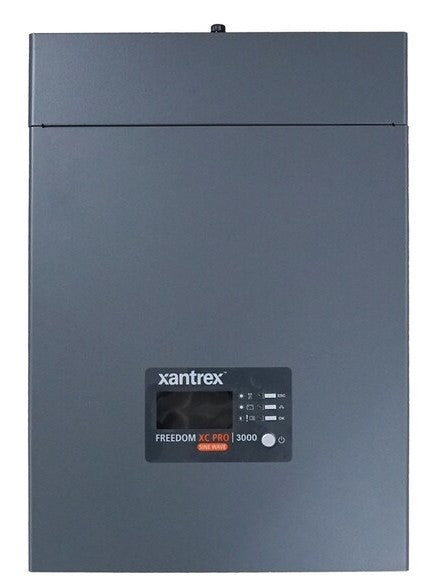

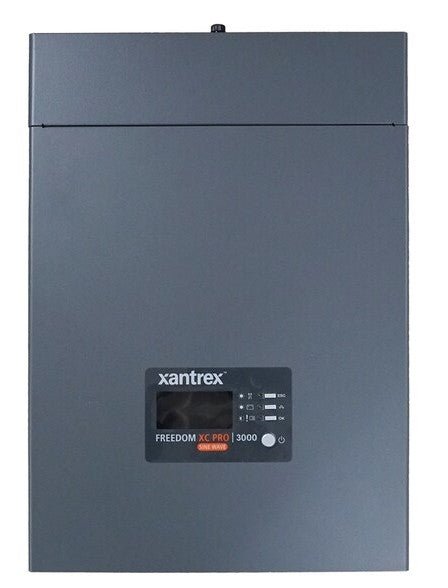

The Xantrex Freedom XC PRO 3000 is a powerful all-in-one inverter/charger designed for demanding RV, boating, and off-grid applications. It takes 12V DC from your battery bank and delivers clean 120V AC power for essential appliances, tools, and electronics.
-
True sine wave inverter: 3000 W continuous output with a 6000 W surge (up to 5 seconds) to reliably start motors and compressors.
-
Integrated 150 A battery charger: multi-stage charging up to 150 A with programmable current (5–150 A) and max DC output of 18.0 V; temperature-compensated charging for optimal battery health.
-
Automatic AC transfer: built-in 50 A transfer relay (3 kW model) automatically senses external AC power and transfers the load to shore power to maximize uptime; surge 50 A, continuous 40 A.
-
Ignition control: inverter can turn on/off via a 12 VDC signal to minimize battery drain when your vehicle’s ignition is off.
-
Wide input range: accepts 10–18 VDC input, suitable for high-voltage alternators found in many vehicle chassis.
-
Programmable under-voltage shutdown: 85–110 VAC to protect equipment when shore power or generator input is weak.
-
Power sharing and efficiency: Power Share prioritizes AC loads to keep total input current under the breaker limit; Power Factor Corrected multi-stage charging improves efficiency; peak efficiency up to 91%, full-load efficiency ≥84%.
-
Battery and chemistry flexibility: flexible lithium battery support and easy configurability to charge various chemistries; includes battery equalization and dead battery charging down to 0 Vdc for challenging conditions.
-
RV-C and J1939 compatibility: seamless integration with modern vehicle and RV systems for monitoring and control.
-
Operational reliability: wide operating temperature range (-4°F to 104°F / -20°C to 40°C) with output derating at higher temperatures; designed for RVs, boats, motorhomes, and off-grid cabins.
-
Output options and pass-through: configurable AC output (120, 110, or 108 VAC) with 60 Hz (or 50 Hz) configurability; AC pass-through range 85–140 VAC while operating, non-operating input up to 240 VAC RMS.
With the Freedom XC PRO 3000, you gain a compact, efficient power backbone that keeps essential loads running when shore power isn’t available. The true sine wave output protects sensitive electronics, while the built-in charger and adaptable charging profiles simplify battery management across lead-acid and modern Lithium chemistries. Automatic transfer to shore power minimizes downtime, and features like ignition control, under-voltage protection, and temperature-compensated charging help maximize battery life and overall system reliability. Designed for RVs, boats, and off-grid cabins, it delivers dependable AC power wherever your adventures take you.
| Inverter Specifications |
| AC Output Operating Voltage Options |
120, 110, 108 Vac |
| Continuous Output Power |
Continuous Power 3000 W @40 C True sine wave (TSW) |
| Continuous AC Output Current |
25A |
| Surge Power |
6000 W (? 5 sec) |
| Frequency (Configurable) |
60 (or 50) Hz |
| Peak Efficiency |
91% |
| Full Load Efficiency |
greater than or equal to 84% |
| Operating Input AC Pass-Through Voltage Range |
85-140 Vac |
| Safe Non-Operating Input AC Voltage Range |
Up to 240 Vac RMS |
| Power Factor at Full Charge Rate |
> 98% |
| Battery Charger Specifications |
| Min Battery Voltage for Charging |
0.0 Vdc |
| Max DC Output Voltage |
18.0 Vdc (custom battery type) |
| Selectable DC Output Current |
User Selectable: 5 - 150 A |
| Full Load Max AC Input Current |
25 Arms |
| Max DC Charge Current |
150A |
| General Specifications |
| Operating Temperature Range |
4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range |
-40 to 158 F (-40 to 70 C) |
| Operating Humidity Range |
5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating |
50 A surge, 40 A continous |
| DC Input Operating voltage range |
10.1 - 18.0 VDC |
| DC Input Max Non-Operating Voltage |
25 Vdc |
| DC Input/Output Nominal Voltage (inverting/ Charging) |
12.0 Vdc |
| DC Nominal Current at Full Load |
304Adc |
| L x W x H (without flanges) |
5.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm) |
| L x W x H (with flanges) |
16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm) |
